Description

Price

1

HANDLEBAR

39P-26111-00-00

Unavailable

2

HOLDER, DAMPER

4JH-23434-02-00

$20.99

3

GRIP

4YR-26241-03-00

$11.99

4

GRIP ASSY

4YR-26240-03-00

$30.99

5

END, GRIP

39P-26246-00-00

$36.99

6

BOLT,SOCKET

91317-06050-00

$3.88

7

THROTTLE CABLE ASSY

39P-26302-00-00

Unavailable

8

CLIP(33M)

90468-15139-00

$7.49

9

CLAMP,WIRE

39P-2627E-00-00

$5.49

10

CAP, GRIP UPPER

4KG-26281-00-00

$31.99

11

CAP, GRIP UNDER

3XW-26282-01-00

$31.99

12

BOLT,SOCKET

91317-05035-00

$8.49

13

WIRE, CLUTCH

2D1-26335-01-00

$66.99

14

CLAMP

90464-10008-00

$3.50

15

REAR VIEW MIRROR ASSY (LEFT)

20S-26280-00-00

Unavailable

16

CAP

5PS-26133-20-00

Unavailable

17

REAR VIEW MIRROR ASSY (RIGHT)

20S-26290-00-00

Unavailable

18

CAP

5PS-26133-20-00

Unavailable

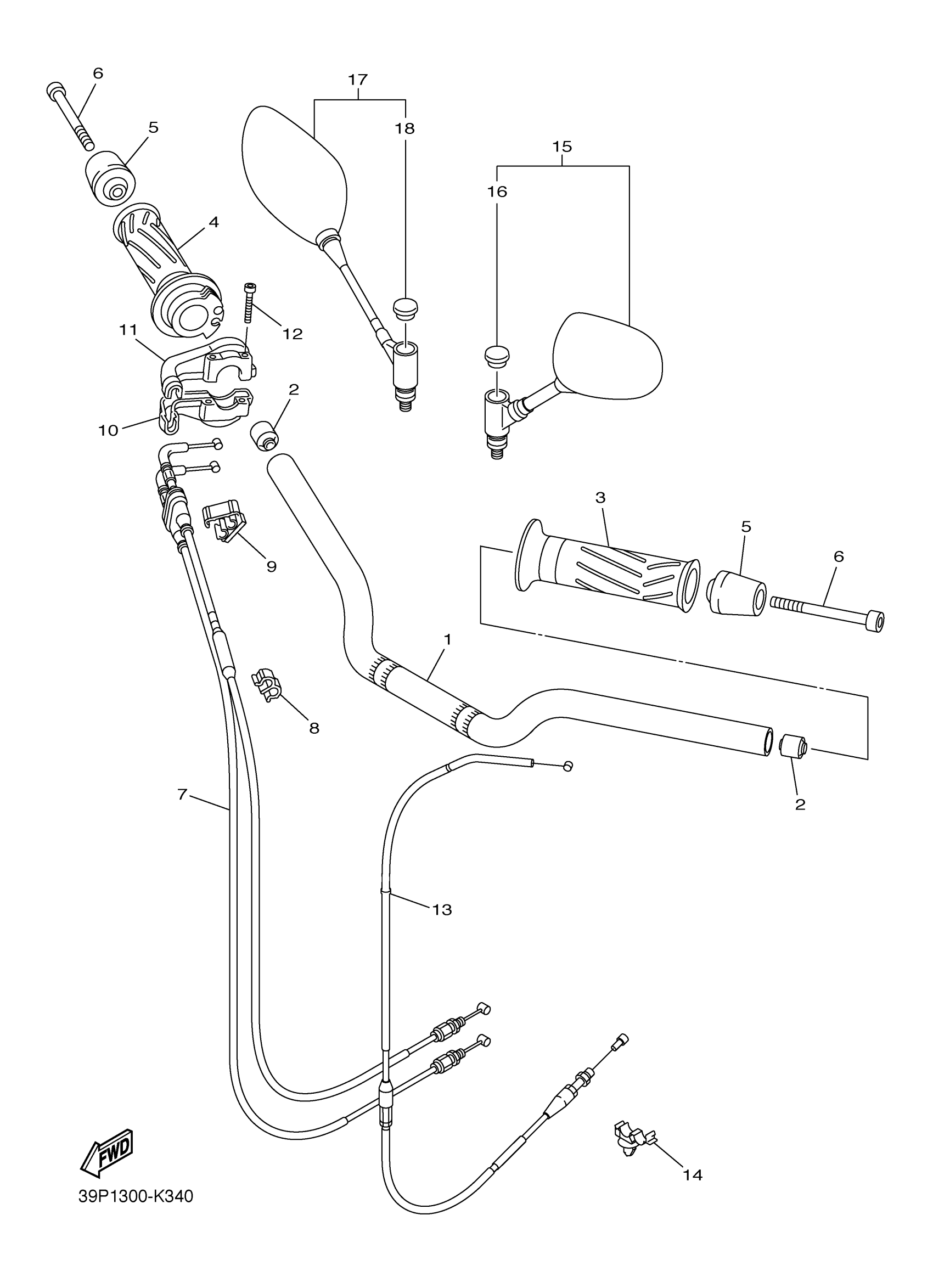

Yamaha FZ8NBG (FZ8) 39P7 2012 STEERING HANDLE CABLE Diagram

HANDLEBAR

HOLDER, DAMPER

GRIP

GRIP ASSY

END, GRIP

BOLT,SOCKET

THROTTLE CABLE ASSY

CLIP(33M)

CLAMP,WIRE

CAP, GRIP UPPER

CAP, GRIP UNDER

BOLT,SOCKET

WIRE, CLUTCH

CLAMP

REAR VIEW MIRROR ASSY (LEFT)

CAP

REAR VIEW MIRROR ASSY (RIGHT)

CAP
