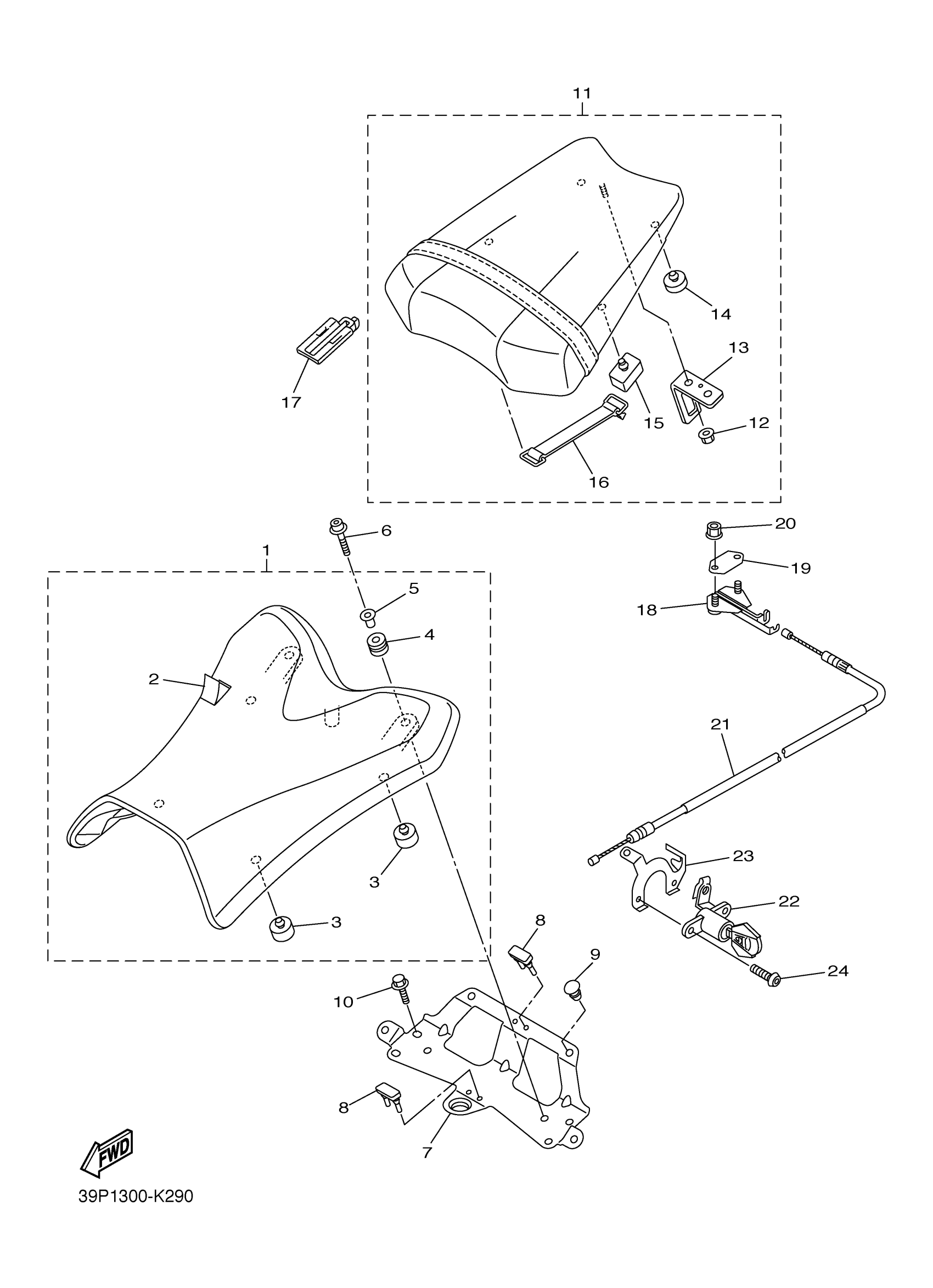

Yamaha FZ8NBG (FZ8) 39P7 2012 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

39P-24710-01-00

Unavailable

2

. SEAT COVER COMP

39P-2470F-00-00

Unavailable

3

STOPPER MAIN STAND

278-27114-00-00

$7.90

4

GROMMET(4TX)

90480-14604-00

$6.93

5

COLLAR 437216330000

90387-07391-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD

90110-06232-00

$4.90

7

BRACKET, SEAT

39P-21349-00-00

$54.38

8

STOPPER, UPPER MOU

682-44532-01-00

$2.79

9

PLUG 288833190000

90338-07043-00

$5.13

10

BOLT, FLANGE

95022-06010-00

$5.08

11

TANDEM SEAT ASSY

39P-24750-01-00

Unavailable

12

NUT, FLANGE

95702-06500-00

$1.95

13

BRACKET, SEAT

4NK-24728-00-00

$9.17

14

PAD, SEAT

22W-24741-00-00

$7.20

15

PAD, SEAT

39P-24741-00-00

Unavailable

16

BAND,BATTERY

7H3-82131-00-00

Unavailable

17

STOPPER

39P-24768-01-00

Unavailable

18

SEAT LOCK ASSY

4BP-24780-00-00

Unavailable

19

PLATE

4BP-24792-00-00

Unavailable

20

NUT, FLANGE

95702-06500-00

$1.95

21

CABLE, SEAT LOCK

2D1-2478E-00-00

Unavailable

22

SEAT LOCK ASSY

3CK-W2470-00-00

Unavailable

23

STAY, LOCK

4XV-2117K-00-00

Unavailable

24

SCREW

90149-06135-00

Unavailable
