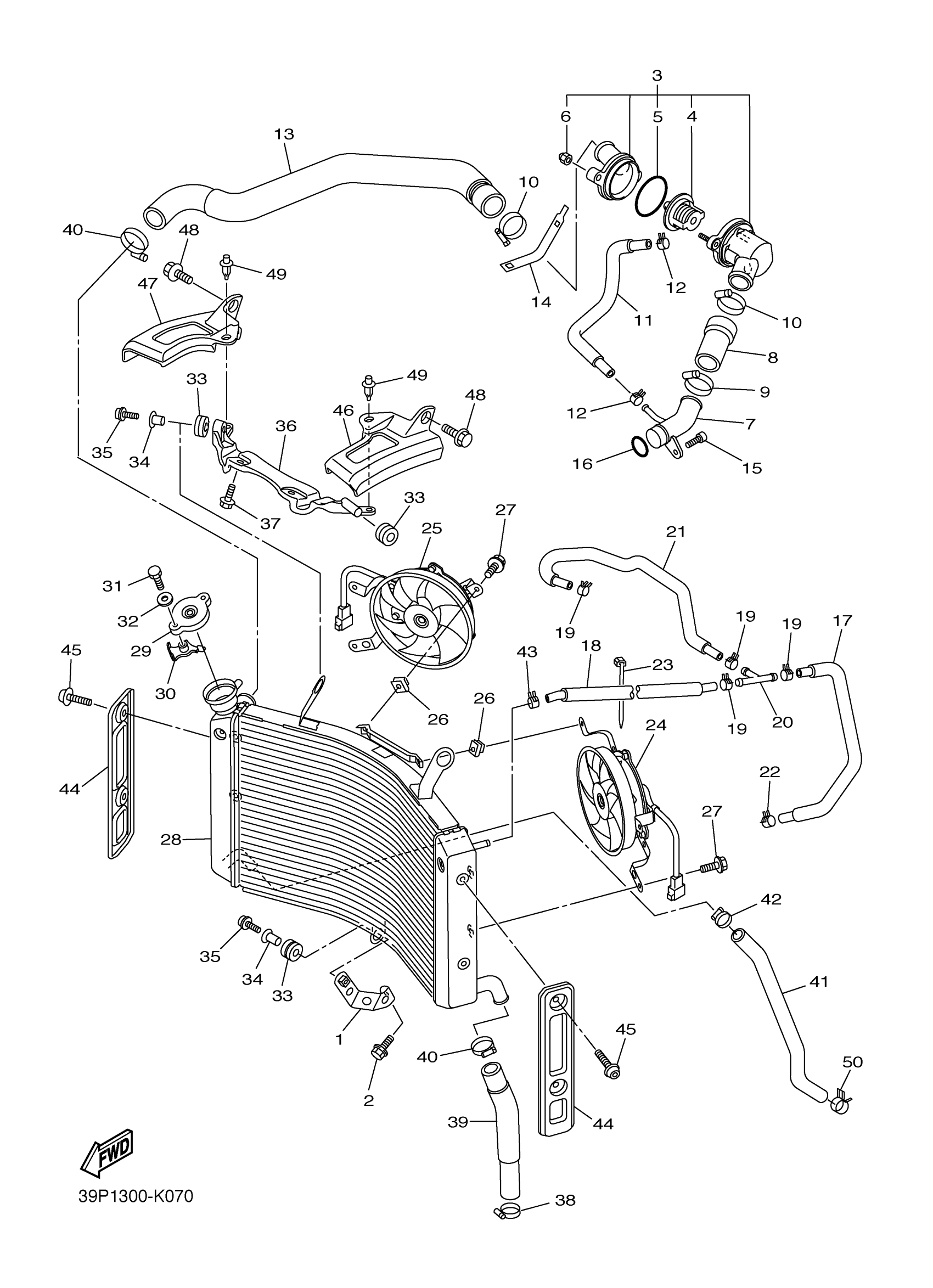

Yamaha FZ8NBG (FZ8) 39P7 2012 RADIATOR HOSE Diagram

#

Description
Price

1

STAY 1

39P-12637-00-00

Unavailable

2

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

3

THERMOSTAT ASSY

2D1-12410-01-00

$95.99

4

THERMOSTAT

5LP-12411-01-00

$38.99

5

O-RING (620)

93210-49046-00

$7.49

6

NUT, CROWN

90176-06014-00

$7.49

7

PIPE 5

5VY-12485-10-00

$68.99

8

HOSE 4

5VY-12579-00-00

$17.49

9

HOSE CLAMP ASSY

90450-35001-00

$5.60

10

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

11

HOSE,3

39P-1243F-00-00

Unavailable

12

CLIP(3BM)

90467-10135-00

$8.49

13

HOSE 3

39P-12578-00-00

Unavailable

14

COVER 1

5GV-1246A-00-00

Unavailable

15

BOLT,SOCKET

91317-06016-00

$1.25

16

O-RING

93210-235A1-00

Unavailable

17

HOSE 1

5VY-1243A-00-00

Unavailable

18

HOSE, 4

2D1-1244G-00-00

Unavailable

19

CLIP(3BM)

90467-10135-00

$8.49

20

WAY 3(1AF)

90413-07023-00

Unavailable

21

HOSE 2

39P-1243E-00-00

Unavailable

22

CLIP (3G0)

90467-10039-00

Unavailable

23

CLAMP(4FM)

90464-15195-00

Unavailable

24

BLOWER ASSY

2D1-12405-01-00

Unavailable

25

BLOWER ASSY

39P-12405-10-00

Unavailable

26

PLATE

1AA-12535-00-00

Unavailable

27

BOLT, BLOWER HOLDING

2D1-12675-00-00

Unavailable

28

RADIATOR ASSY

2D1-12461-00-00

Unavailable

29

CAP, RADIATOR

4FL-12462-00-00

Unavailable

30

STOPPER

5FC-12437-00-00

Unavailable

31

BOLT(4GV)

97017-05012-00

Unavailable

32

WASHER(1RW)

92907-05600-00

Unavailable

33

GROMMET (29L)

90480-15363-00

Unavailable

34

COLLAR 437216330000

90387-07391-00

Unavailable

35

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

Unavailable

36

STAY, RADIATOR

39P-12464-00-00

Unavailable

37

BOLT, FLANGE

95817-06016-00

Unavailable

38

HOSE CLAMP ASSY

90450-32003-00

Unavailable

39

HOSE 7

2D1-12551-00-00

Unavailable

40

HOSE CLAMP ASSY

90450-32003-00

Unavailable

41

HOSE 6

39P-12589-00-00

Unavailable

42

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

43

CLIP(3BM)

90467-10135-00

$8.49

44

RADIATOR COVER ASSY1

39P-1240J-00-00

Unavailable

45

BOLT

90111-06031-00

Unavailable

46

COVER 1

39P-1246A-00-00

Unavailable

47

COVER 2

39P-1246E-00-00

Unavailable

48

BOLT, FLANGE

95022-06014-00

Unavailable

49

RIVET

90269-06001-00

Unavailable

50

CLIP

90467-200A0-00

Unavailable
