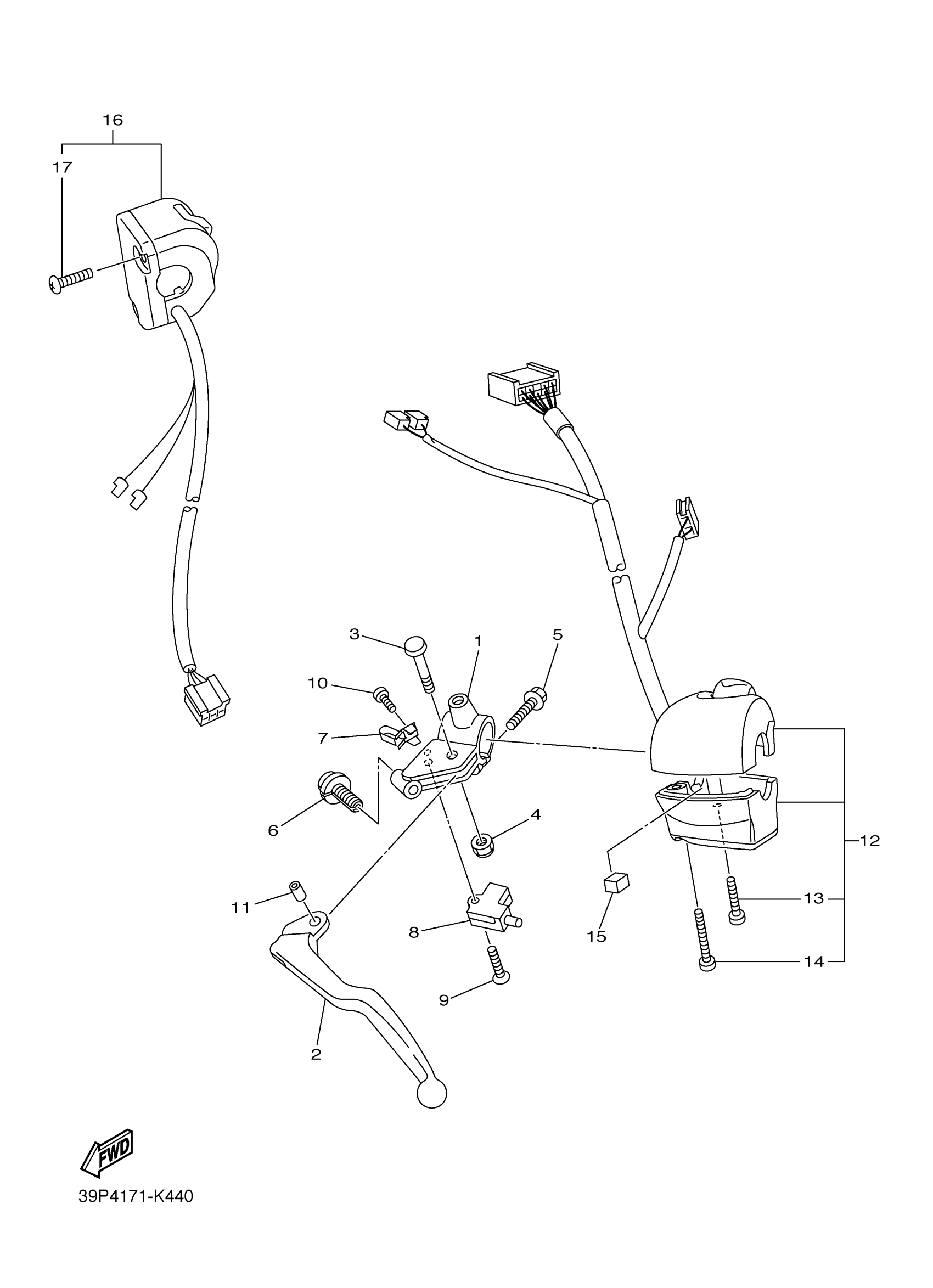

Yamaha FZ8NBG (FZ8) 39P7 2012 HANDLE SWITCH LEVER Diagram

HOLDER, LEVER 1

1B3-82911-00-00

$40.99

LEVER 1

5EB-83912-03-00

$53.99

BOLT, LEVER

2C0-83945-00-00

$10.99

NUT,SELF-LOCKING

95607-06200-00

$12.49

. BOLT, FLANGE

95027-06020-00

Unavailable

BOLT, CABLE ADJUSTING

5LV-83951-00-00

$58.99

PLATE, SPRING

4XV-83929-00-00

$11.99

SWITCH

3YX-82917-01-00

$43.99

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.50

COLLAR, LEVER 1

5JJ-83913-00-00

$8.99

SWITCH, HANDLE 3 (RIGHT)

39P-83963-00-00

$224.99

SCREW, PAN HEAD

98517-05030-00

$10.49

SCREW, PAN

98507-05045-00

$9.49

DAMPER, PLATE

90520-10010-00

Unavailable

SWITCH, HANDLE 2

39P-83975-00-00

Unavailable

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable
