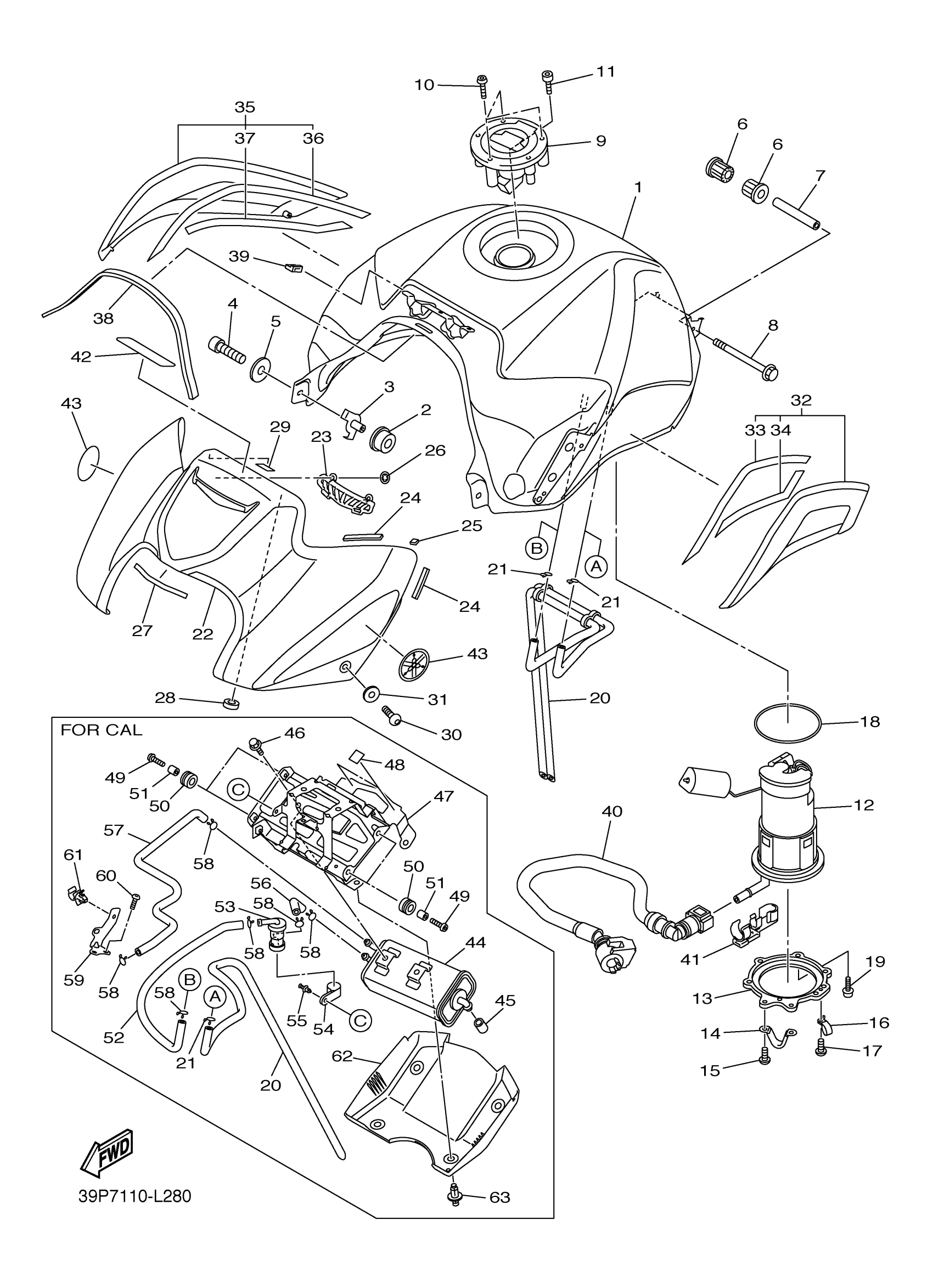

Yamaha FZ8NBG (FZ8) 39P7 2012 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

39P-24110-01-P4

$592.99

2

DAMPER, LOCATING 1

5VY-24181-00-00

$7.99

3

COLLAR

2D1-2412G-00-00

$25.99

4

BOLT(3MA)

91312-06016-00

$5.60

5

WASHER, PLATE

90201-06086-00

$7.49

6

DAMPER, LOCATING 3

5SL-24183-00-00

Unavailable

7

COLLAR

90387-06055-00

Unavailable

8

BOLT, FLANGE

95022-06090-00

$2.34

9

CAP ASSY

39P-24602-00-00

$257.99

10

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

11

BOLT

91312-05010-00

$5.60

12

FUEL PUMP COMP.

39P-13907-03-00

$487.99

13

BRACKET, FUEL PUMP

39P-24491-00-00

Unavailable

14

BRACKET, FUEL TANK 2

2D1-24192-00-00

Unavailable

15

SCREW, BIND

98902-05008-00

$1.70

16

CLAMP

90461-10010-00

Unavailable

17

SCREW, BIND

98902-05008-00

$1.70

18

O-RING

19B-24486-01-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

20

PIPE 5

39P-24315-00-00

Unavailable

21

CLIP

90467-090A2-00

Unavailable

22

COVER, TOP

39P-2171A-10-P0

Unavailable

23

COVER, TANK

39P-241B1-00-00

Unavailable

24

DAMPER

4XV-2834E-00-00

Unavailable

25

DAMPER, LOCATING 1

14B-24181-00-00

Unavailable

26

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

27

SEAL

39P-28307-00-00

Unavailable

28

DAMPER

4FM-28372-00-00

Unavailable

29

DAMPER, RUBBER 1

4RR-21485-00-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-05019-00

Unavailable

31

WASHER, PLATE(MG5)

90202-05224-00

Unavailable

32

TANK SIDE COVER ASSY 1

39P-24106-00-00

Unavailable

33

SEAL 3

39P-241A3-00-00

Unavailable

34

SEAL 5

39P-241A5-00-00

Unavailable

35

TANK SIDE COVER ASSY 2

39P-24108-00-00

Unavailable

36

SEAL 4

39P-241A4-00-00

Unavailable

37

SEAL 6

39P-241A6-00-00

Unavailable

38

DAMPER, PLATE 5

2D1-2414P-00-00

Unavailable

39

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

40

PIPE, FUEL 1

39P-13971-00-00

Unavailable

41

CLAMP

90464-16005-00

Unavailable

42

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

43

EMBLEM

5SL-2413B-00-00

Unavailable

44

CANISTER ASSY

39P-24170-00-00

Unavailable

45

HOSE (L70)

90445-112E0-00

Unavailable

46

BOLT, FLANGE

95812-06010-00

Unavailable

47

BRACKET, CANISTOR

39P-2419F-00-00

Unavailable

48

DAMPER 2

5YU-21639-00-00

Unavailable

49

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

50

GROMMET

90480-14030-00

Unavailable

51

COLLAR (J10)

90387-06026-00

Unavailable

52

PIPE 3

39P-24313-00-00

Unavailable

53

ROLL OVER VALVE ASSY

2C0-24180-00-00

Unavailable

54

CLAMP

90464-15014-00

Unavailable

55

RIVET

90269-05005-00

Unavailable

56

PIPE 4

39P-24314-00-00

Unavailable

57

PIPE

39P-1444J-00-00

Unavailable

58

CLIP

90467-090A2-00

Unavailable

59

STAY

39P-24216-00-00

Unavailable

60

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

61

CLAMP(6M7)

90464-10M32-00

Unavailable

62

COVER

5D0-2172W-00-00

Unavailable

63

RIVET(4PH)

90269-07077-00

Unavailable
