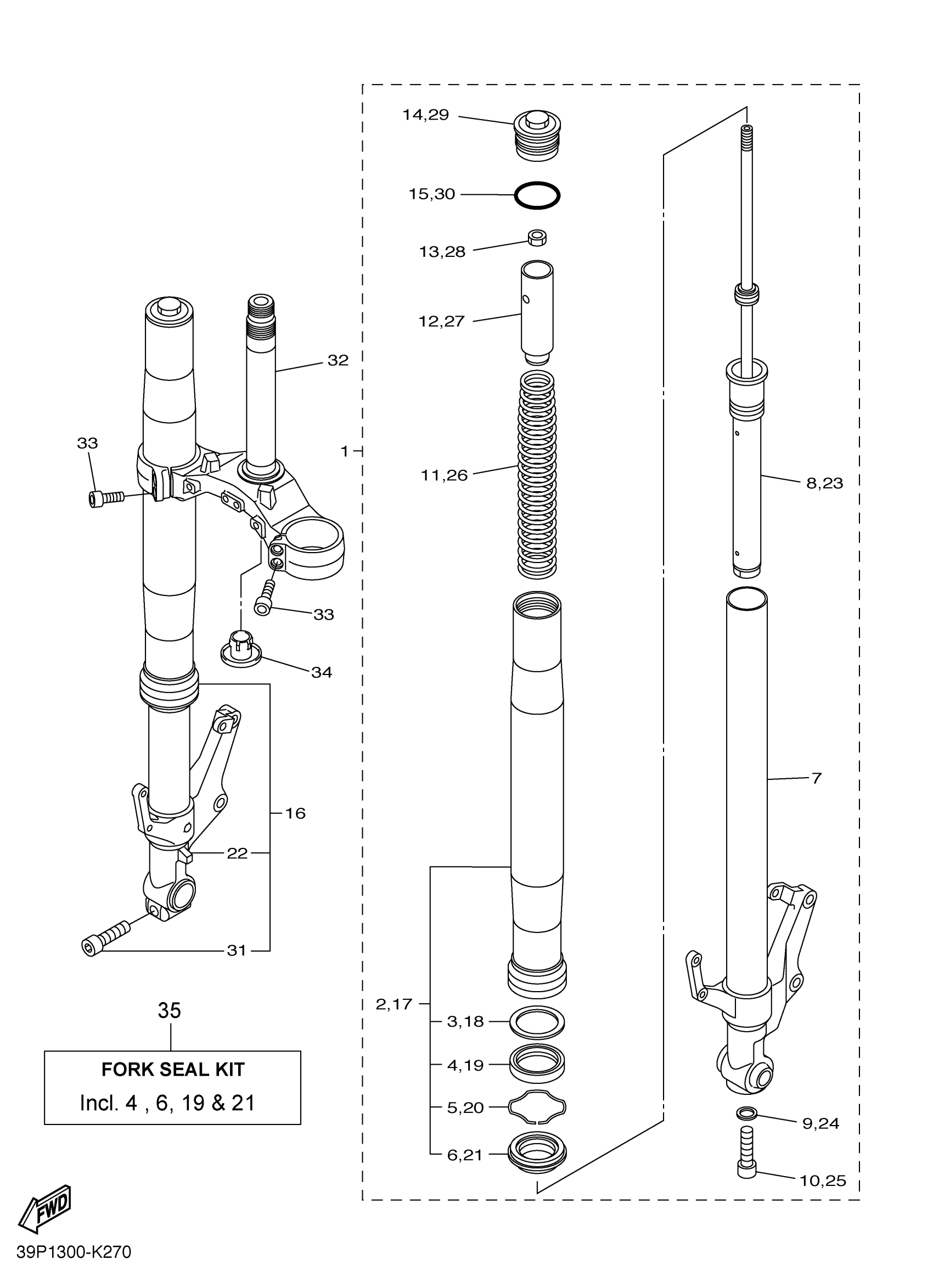

Yamaha FZ8NBG (FZ8) 39P7 2012 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

39P-23102-00-00

Unavailable

2

TUBE, OUTER (RIGHT)

2D1-23136-10-00

Unavailable

3

WASHER

4V4-23146-L0-00

$6.99

4

OIL SEAL

4PU-23145-01-00

$25.99

5

RING, SNAP

4V4-23153-L0-00

$9.99

6

SEAL, DUST

4PU-23144-00-00

$24.99

7

INNER TUBE COMP.1

39P-23110-00-00

Unavailable

8

CYLINDER COMP., FRONT FORK

39P-23170-00-00

Unavailable

9

GASKET

509-23158-L0-00

$16.49

10

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

11

SPRING, FRONT FORK

39P-23141-00-00

Unavailable

12

SPACER

5VY-23118-00-00

Unavailable

13

NUT

3LC-23357-00-00

$6.99

14

BOLT, CAP

39P-23111-00-00

$230.99

15

O-RING

39P-23147-00-00

$8.99

16

FRONT FORK ASSY (R.H)

39P-23103-01-00

Unavailable

17

TUBE, OUTER (RIGHT)

2D1-23136-10-00

Unavailable

18

WASHER

4V4-23146-L0-00

$6.99

19

OIL SEAL

4PU-23145-01-00

$25.99

20

RING, SNAP

4V4-23153-L0-00

$9.99

21

SEAL, DUST

4PU-23144-00-00

$24.99

22

INNER TUBE COMP.2

39P-23120-01-00

Unavailable

23

CYLINDER COMP., FRONT FORK

39P-23170-10-00

Unavailable

24

GASKET

509-23158-L0-00

$16.49

25

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

26

SPRING, FRONT FORK

39P-23141-00-00

Unavailable

27

SPACER

5VY-23118-00-00

Unavailable

28

NUT

3LC-23357-00-00

$6.99

29

BOLT, CAP

39P-23111-00-00

$230.99

30

O-RING

39P-23147-00-00

$8.99

31

BOLT,SOCKET

91314-08040-00

Unavailable

32

UNDER BRACKET COMP.

39P-23340-00-00

Unavailable

33

91312-08030

91312-08030-00

Unavailable

34

COVER, LOWER 1

4KM-23123-01-00

Unavailable

35

FORK SEAL KIT (TWO FORKS)

4PU-W003B-00-00

Unavailable
