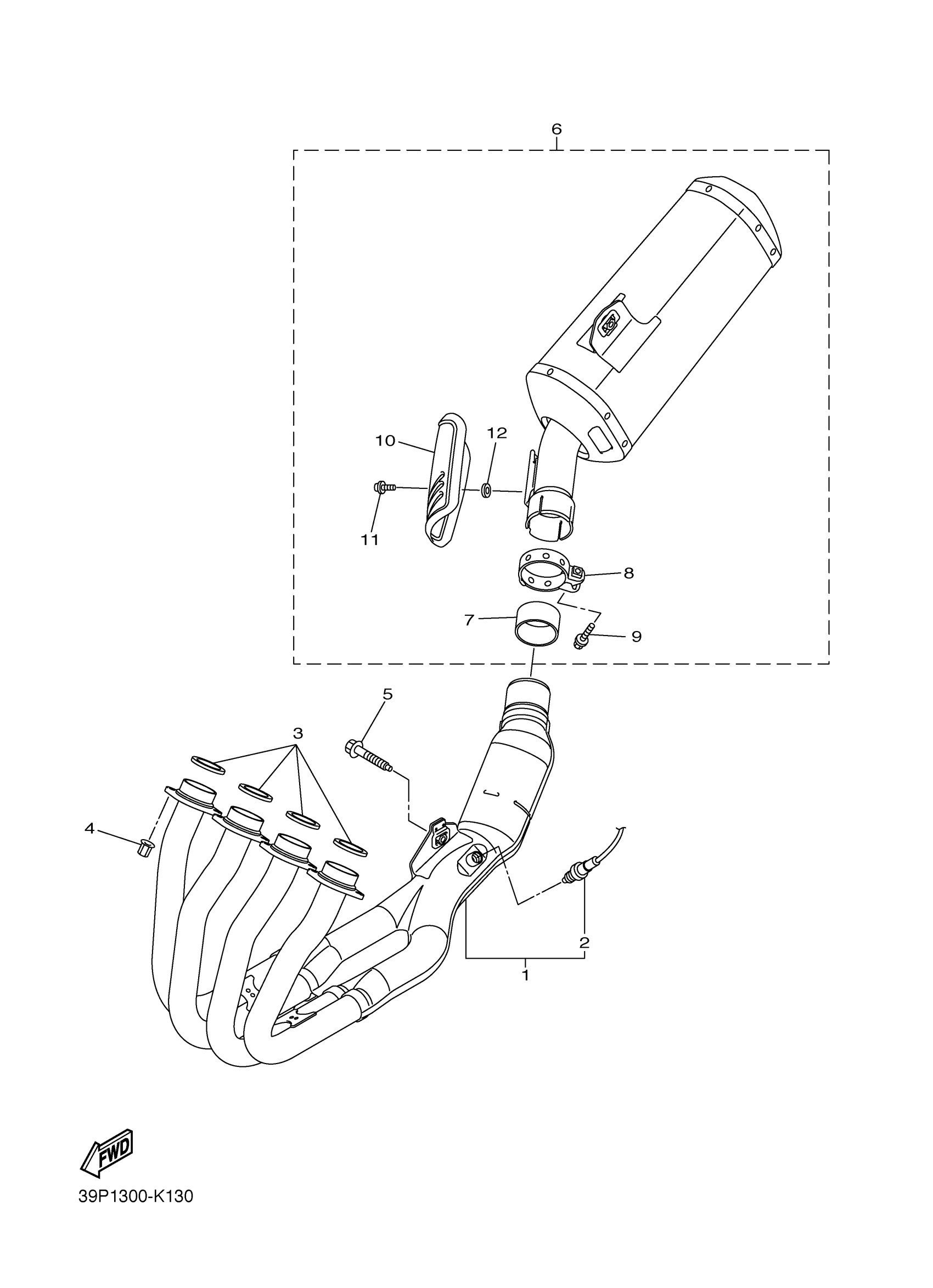

Yamaha FZ8NBG (FZ8) 39P7 2012 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

39P-14610-00-00

Unavailable

2

SENSOR, OXYGEN

39P-8592A-00-00

Unavailable

3

GASKET, EXHAUST PIPE

4FM-14613-00-00

$8.69

4

NUT (22U)

90179-08410-00

$4.72

5

BOLT

90109-08170-00

$4.93

6

MUFFLER ASSY 1

39P-14710-10-00

$892.75

7

GASKET, MUFFLER

5YU-14714-10-00

$36.63

8

BAND, MUFFLER

39P-14715-00-00

$32.33

9

BOLT, FLANGE(3EF)

95024-08035-00

$5.75

10

PROTECTOR, MUFFLER 1

39P-14718-00-00

Unavailable

11

BOLT

90111-06060-00

$3.59

12

WASHER, PLATE

90201-05017-00

Unavailable
