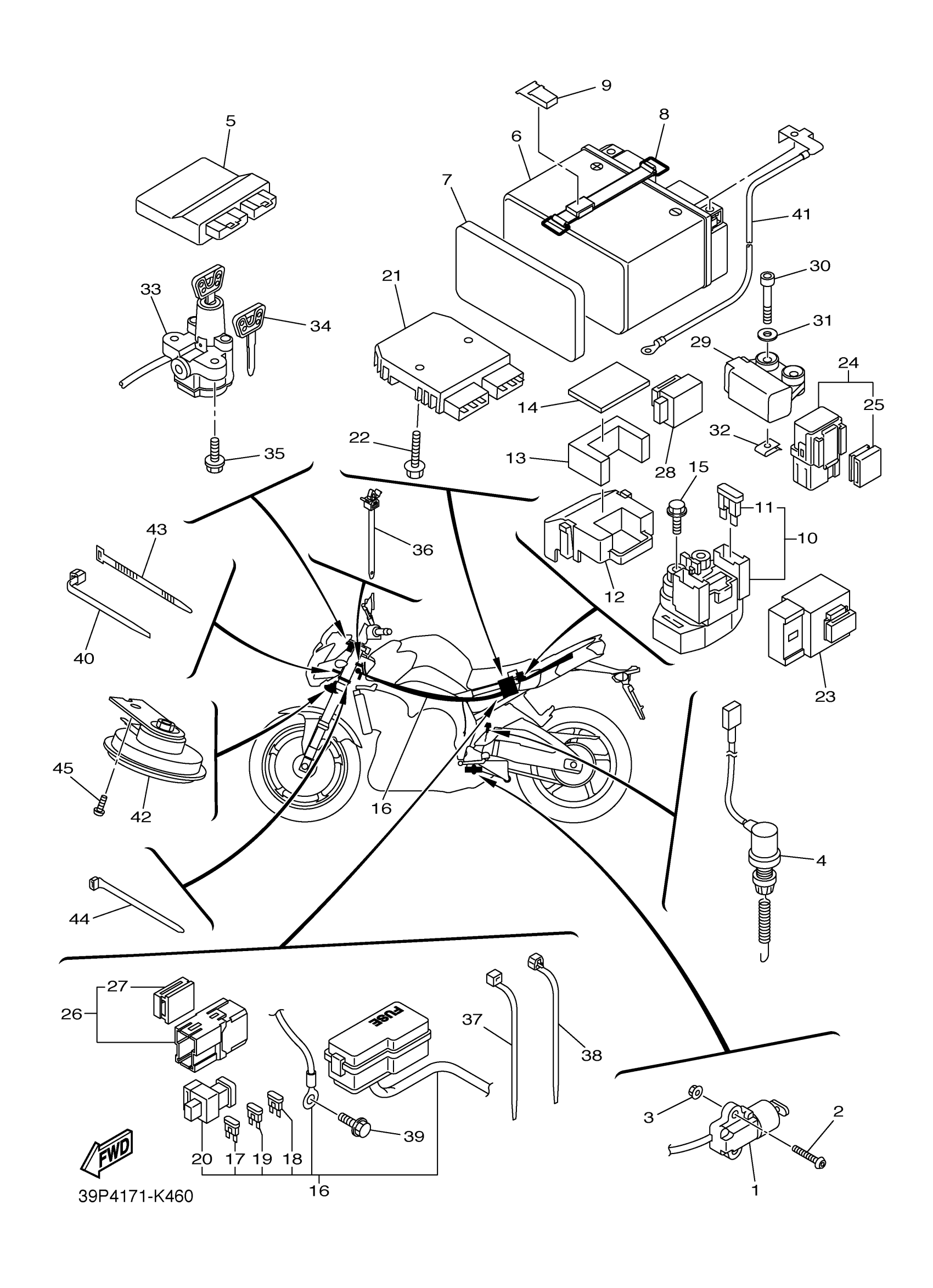

Yamaha FZ8NBG (FZ8) 39P7 2012 ELECTRICAL 2 Diagram

#

Description
Price

1

SWITCH, SIDE STAND

23P-82566-61-00

Unavailable

2

BOLT, BUTTON HEAD

92012-05030-00

$7.49

3

NUT, S/L FLANGE

95607-05200-00

$9.49

4

STOP SWITCH ASSY

39P-82530-02-00

$47.99

5

ENGINE CONTROL UNIT ASSY

39P-8591A-30-00

Unavailable

6

BATTERY YTZ10S

YTZ-10S00-00-00

Unavailable

7

SPACER

39P-8246K-00-00

Unavailable

8

BAND, BATTERY

2D1-82131-00-00

Unavailable

9

HOOK

5YU-2162A-00-00

Unavailable

10

STARTER RELAY ASSY (RC19-054)

2C0-81940-00-00

Unavailable

11

FUSE (12V 15A)

36Y-82151-00-00

$4.94

12

COVER, LEAD WIRE

5SL-82119-10-00

$4.68

13

DAMPER

39P-82176-00-00

Unavailable

14

DAMPER

39P-82157-00-00

Unavailable

15

BOLT, FLANGE

95022-06008-00

$8.49

16

WIRE HARNESS ASSY

39P-82590-21-00

Unavailable

17

FUSE (15A)

67F-82151-50-00

Unavailable

18

. FUSE (10A)

67F-82151-40-00

Unavailable

19

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

20

FUSE (50A)

5JW-82151-10-00

Unavailable

21

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

22

BOLT, FLANGE

95822-06025-00

Unavailable

23

RELAY ASSY

5VK-81950-43-00

Unavailable

24

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

25

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

26

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

27

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

28

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

29

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

30

BOLT

91312-04025-00

Unavailable

31

WASHER, PLATE

90201-04030-00

Unavailable

32

NUT, SPRING(47R)

90183-04039-00

Unavailable

33

MAIN SWITCH STEERING LOCK

39P-82501-10-00

Unavailable

34

BLANK KEY

4BH-82511-09-00

Unavailable

35

BOLT

90109-08196-00

Unavailable

36

CLAMP(2TV)

90464-10112-00

Unavailable

37

CLAMP(4FM)

90464-15195-00

Unavailable

38

CLAMP(4FM)

90464-15195-00

Unavailable

39

BOLT,SOCKET

91380-06010-00

Unavailable

40

CLAMP

90464-13077-00

Unavailable

41

WIRE, MINUS LEAD

2D1-82116-00-00

Unavailable

42

HORN

39P-83371-00-00

Unavailable

43

CLAMP

90465-10098-00

Unavailable

44

CLAMP

90464-59001-00

Unavailable

45

BOLT, BUTTON HEAD

92012-06014-00

Unavailable
