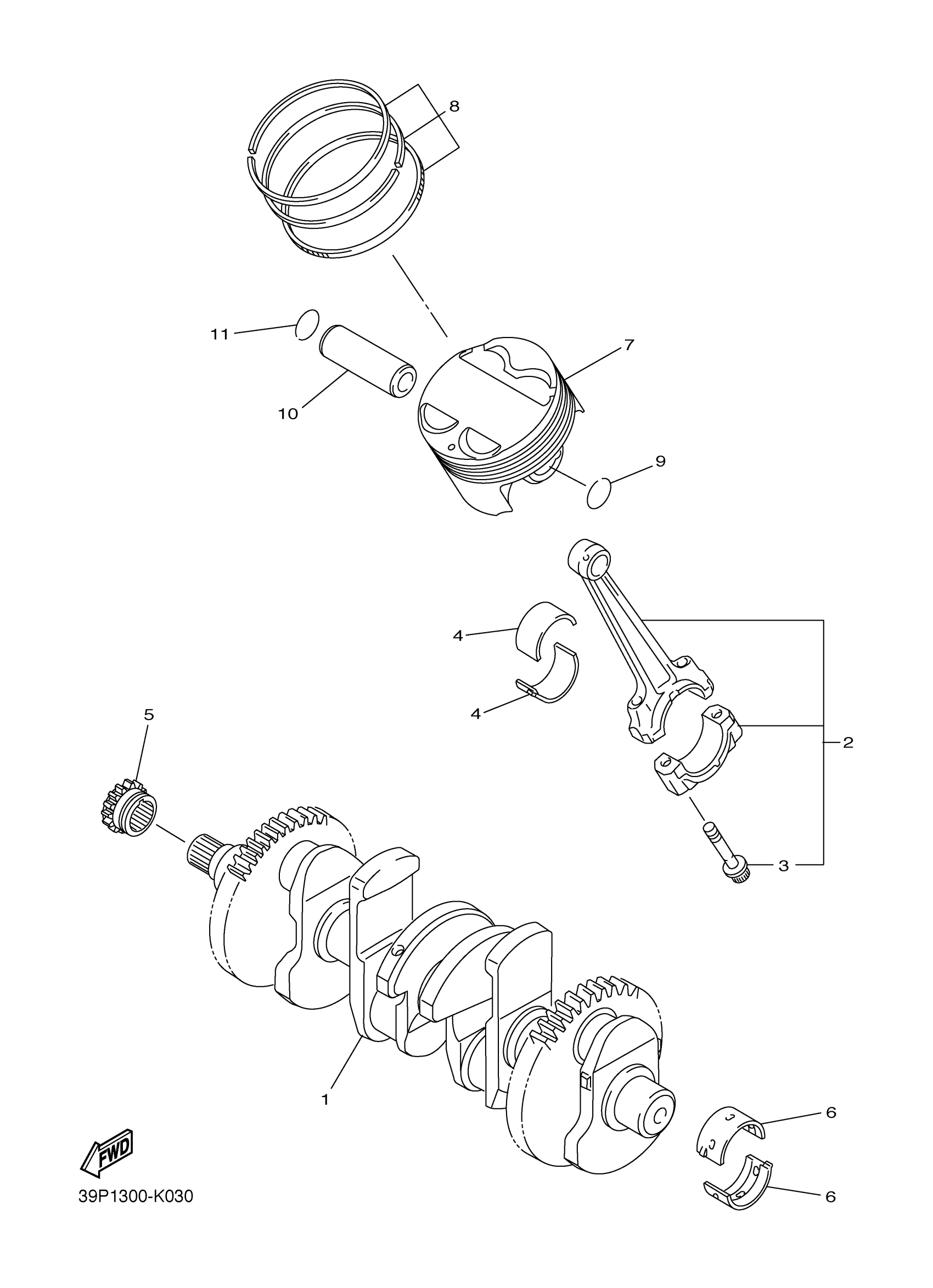

Yamaha FZ8NBG (FZ8) 39P7 2012 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

4C8-11411-00-00

$1,301.99

2

CONNECTING ROD ASSY

14B-11650-00-00

$241.99

3

BOLT, CONNECTING ROD

5VY-11654-01-00

$16.49

4

PLANE BEARING, CONNECTING ROD

2D1-11656-00-00

$12.99

4

PLANE BEARING, CONNECTING ROD

2D1-11656-10-00

$20.99

4

PLANE BEARING, CONNECTING ROD

2D1-11656-20-00

$20.99

4

PLANE BEARING, CONNECTING ROD

2D1-11656-30-00

$20.99

5

SPROCKET, CAM CHAIN

39P-11549-00-00

$59.99

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-00-00

$20.99

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-10-00

$20.99

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-20-00

$20.99

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-30-00

$20.99

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-A0-00

$20.99

7

PISTON (STD)

39P-11631-00-00

Unavailable

8

PISTON RING SET (STD)

39P-11603-00-00

$71.99

9

CIRCLIP

93450-18157-00

Unavailable

10

PIN, PISTON

39P-11633-00-00

Unavailable

11

CIRCLIP

93450-18157-00

Unavailable
