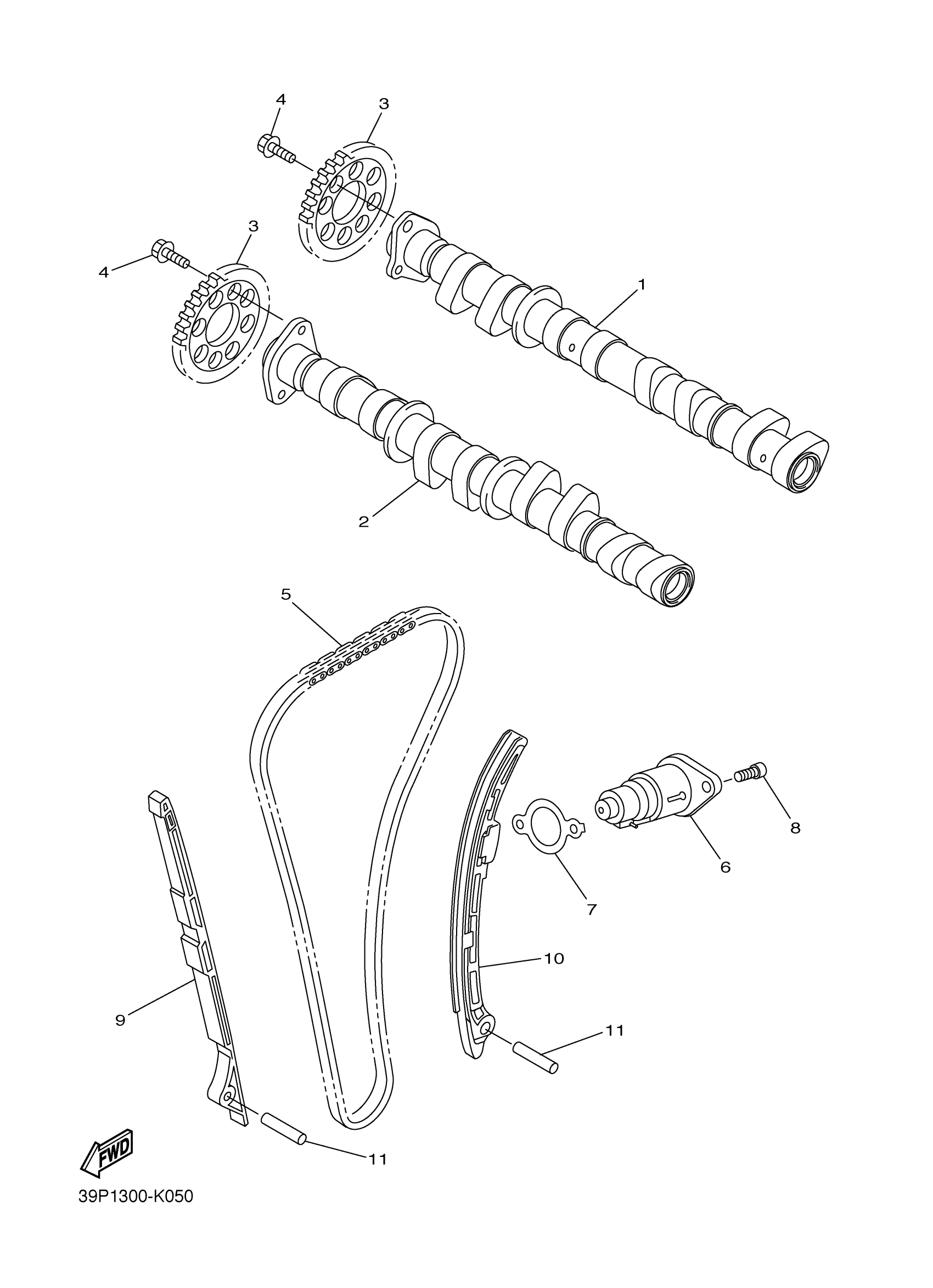

Yamaha FZ8NBG (FZ8) 39P7 2012 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

39P-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

39P-12180-00-00

$322.29

3

SPROCKET, CAM CHAIN

20S-12176-00-00

$56.15

4

BOLT, FLANGE

90105-07004-00

$4.66

5

CHAIN

94591-68124-00

$46.06

6

TENSIONER ASSY, CAM CHAIN

39P-12210-02-00

Unavailable

7

GASKET, TENSIONER CASE

2D1-12213-00-00

Unavailable

8

BOLT, HEXAGON SOCKET HEAD

90110-06106-00

$5.90

9

DAMPER, CHAIN 1

4C8-12251-00-00

$40.15

10

DAMPER, CHAIN 2

4C8-12252-00-00

$153.46

11

PIN, DOWEL

93607-44002-00

$4.06
