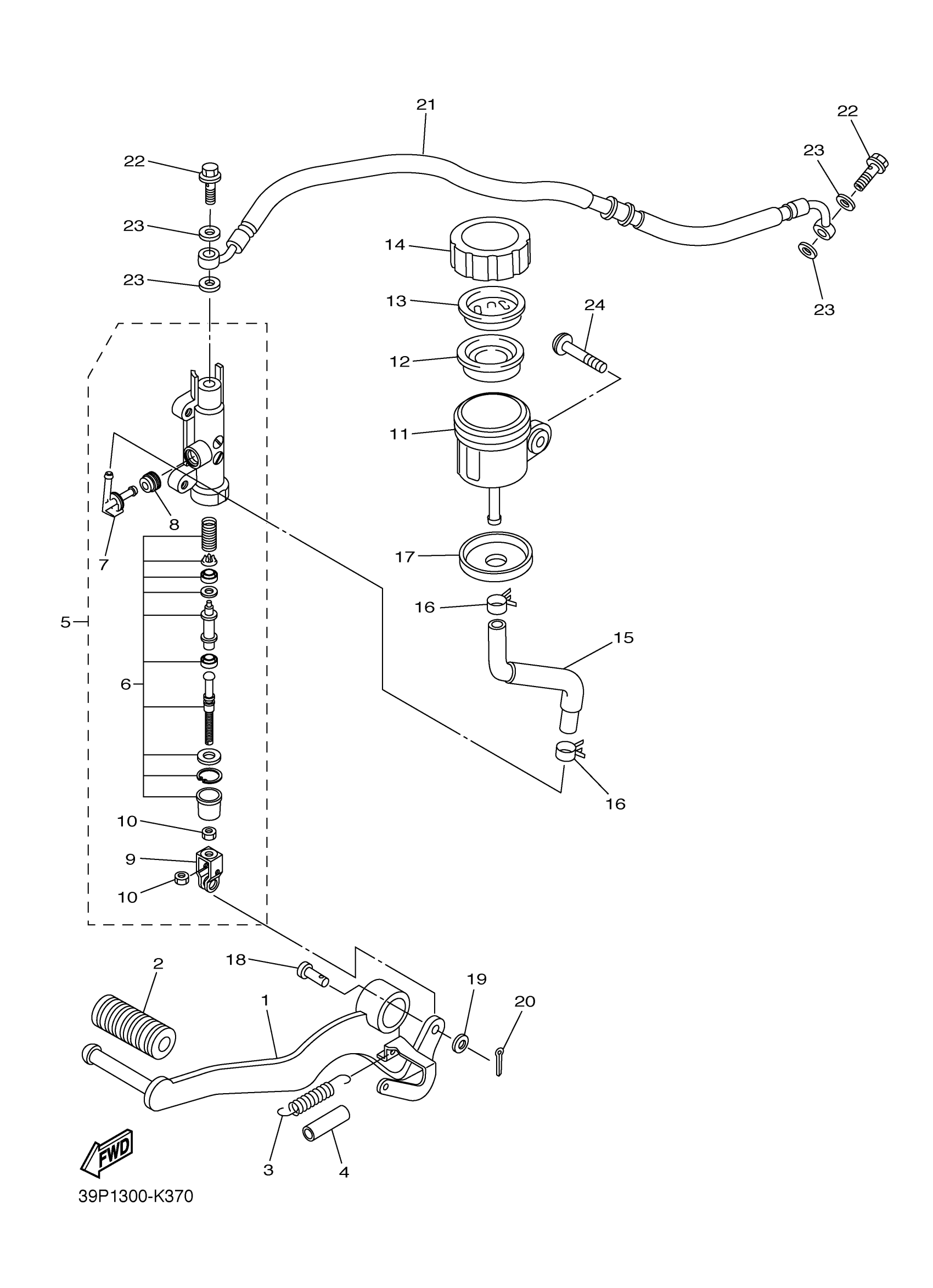

Yamaha FZ8NACB (FZ8 CA) 39P3 2011 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

39P-27211-00-00

$110.99

2

COVER, SHIFT PEDAL

5EB-18113-00-00

$7.99

3

SPRING, TENSION

90506-20014-00

Unavailable

4

HOSE

90446-15386-00

$7.49

5

RR. MASTER CYLINDER ASSY.

2D1-2583V-00-00

Unavailable

6

CYLINDER KIT, MASTER

5VX-W0042-51-00

$85.99

7

JOINT

2D1-2582A-01-00

$5.49

8

O-RING

4BP-2585F-01-00

Unavailable

9

JOINT

4BP-27222-02-00

$29.99

10

NUT

90170-08010-00

$8.49

11

TANK, RESERVOIR

2D1-25894-00-00

$7.99

12

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

$20.99

13

BUSH,DIAPHRAGM

5SL-25855-00-00

$7.99

14

CAP, RESERVOIR

5SL-25852-00-00

$27.99

15

HOSE, RESERVOIR

39P-25895-00-00

$24.99

16

CLIP (7K7)

90467-11044-00

Unavailable

17

BOOT

5D0-2583H-00-00

Unavailable

18

PIN, CLEVIS

90240-08005-00

Unavailable

19

WASHER, PLATE

90201-08066-00

Unavailable

20

PIN, COTTER (648)

91490-20015-00

Unavailable

21

HOSE, BRAKE

39P-25874-00-00

Unavailable

22

BOLT, UNION

90401-10020-00

Unavailable

23

GASKET

90430-10005-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable
