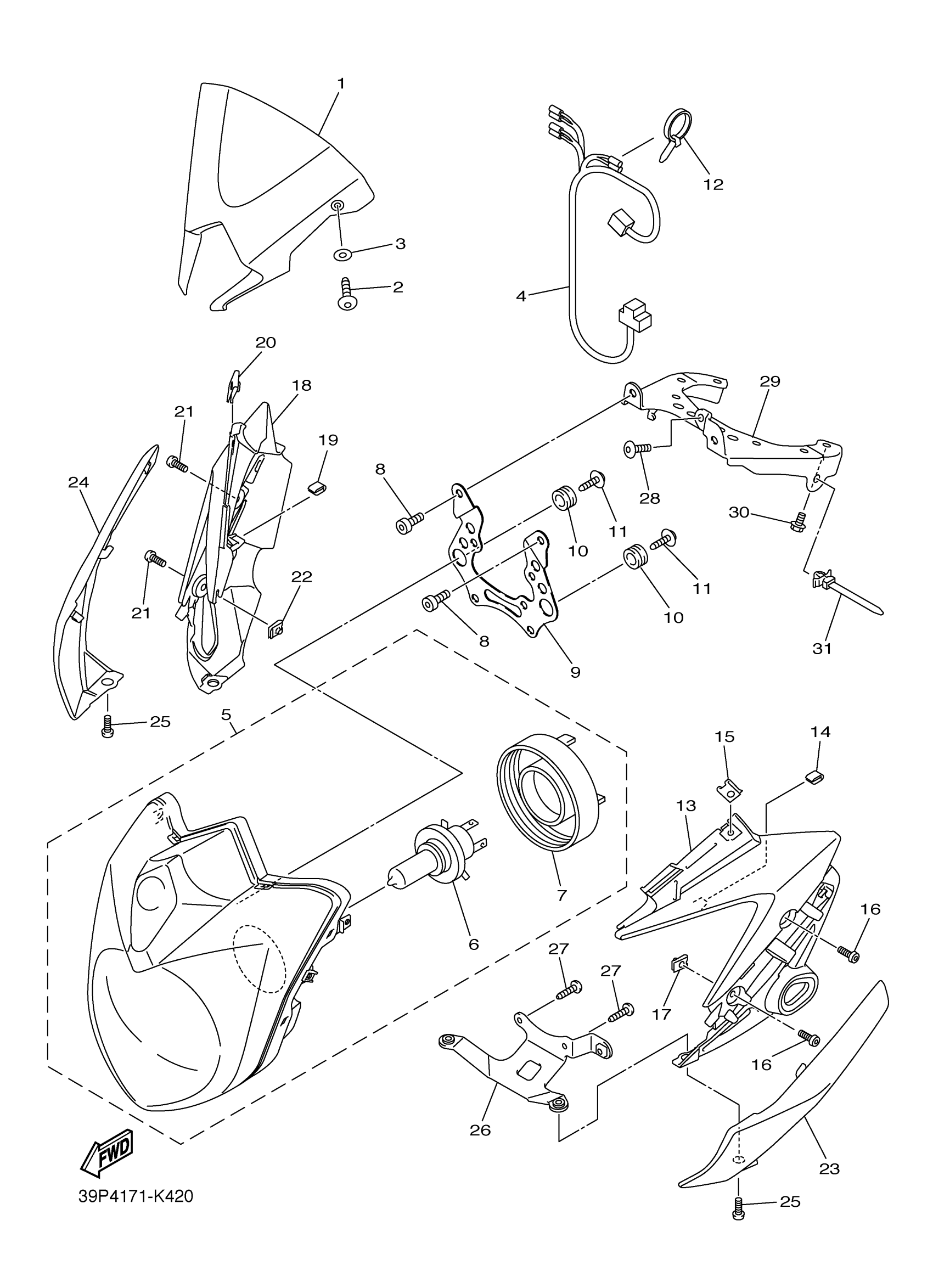

Yamaha FZ8NACB (FZ8 CA) 39P3 2011 HEADLIGHT Diagram

#

Description
Price

1

COVER, METER

39P-83559-00-P0

Unavailable

2

SCREW, TAPPING(4TX)

90167-05076-00

$2.39

3

WASHER, PLATE

90202-05002-00

$2.23

4

WIRE, SUB LEAD

39P-82509-10-00

$49.99

5

HEADLIGHT ASSY

39P-84300-11-00

$492.99

6

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

7

COVER, SOCKET

5JW-84397-00-00

Unavailable

8

BOLT,SOCKET

91317-06010-00

$9.49

9

PLATE 1

20S-28396-00-00

$22.99

10

GROMMET

90480-14004-00

$8.49

11

SCREW, TAPPING

90164-05001-00

$8.49

12

CLAMP

90465-10098-00

Unavailable

13

COVER, UPPER 1

39P-23121-00-00

Unavailable

14

TRIM

20S-28376-00-00

$3.38

15

NUT, SPRING(1YT)

90183-05042-00

$5.60

16

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

17

NUT, SPRING(4ES)

90183-06069-00

Unavailable

18

COVER, UPPER 2

39P-23131-00-00

Unavailable

19

TRIM

20S-28376-00-00

$3.38

20

NUT, SPRING(1YT)

90183-05042-00

$5.60

21

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

22

NUT, SPRING(4ES)

90183-06069-00

Unavailable

23

COVER, OUTER 1

39P-23122-00-P0

Unavailable

24

COVER, OUTER 2

39P-23132-00-P0

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

26

STAY, SETTING

39P-8431R-00-00

Unavailable

27

SCREW, TAPPING

97702-50016-00

Unavailable

28

BOLT, BUTTON HEAD

92012-05012-00

Unavailable

29

STAY, HEADLIGHT 2

39P-84119-00-00

Unavailable

30

BOLT, FLANGE

95817-06012-00

Unavailable

31

CLAMP(2TV)

90464-10112-00

Unavailable
