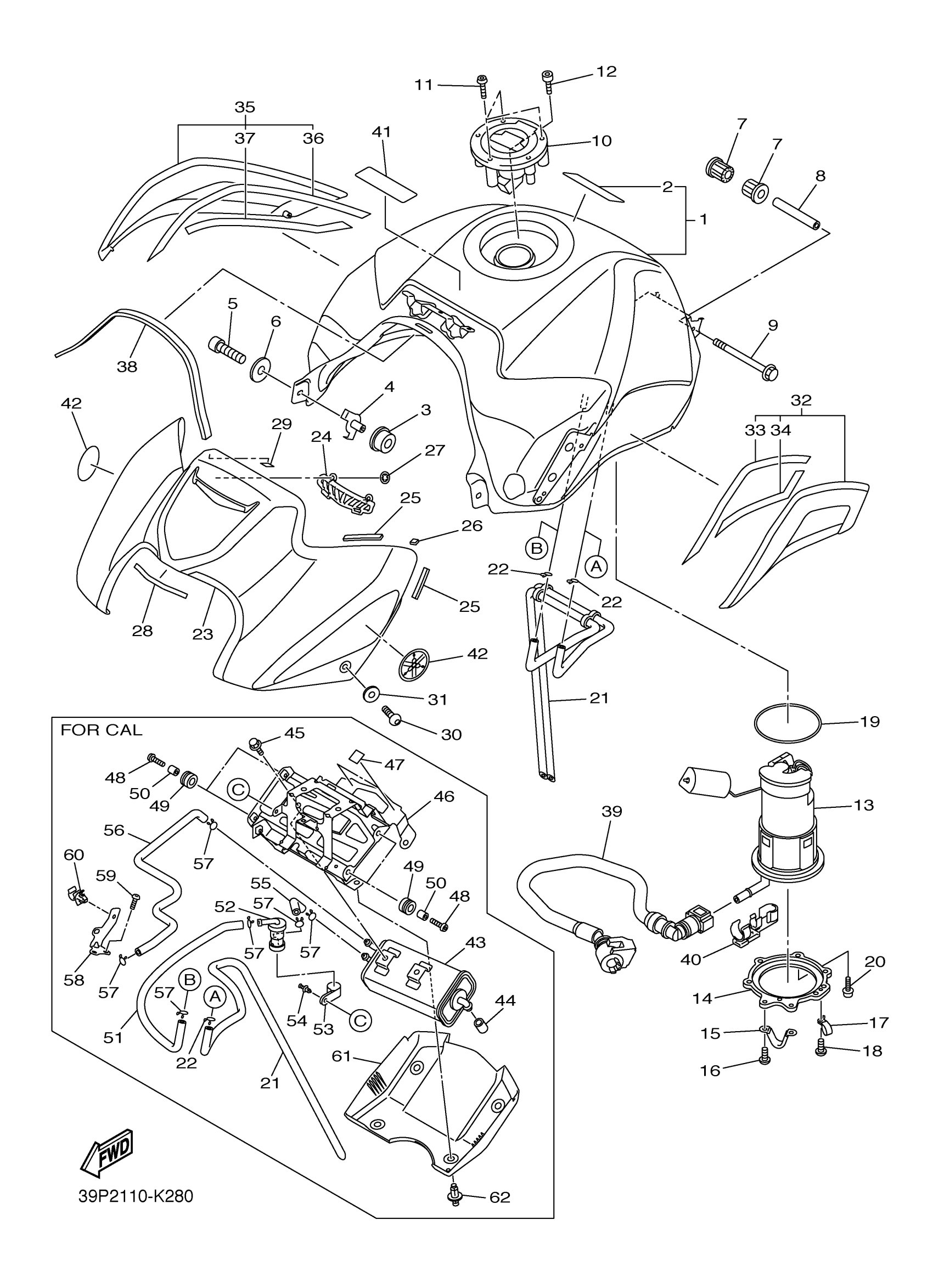

Yamaha FZ8NACB (FZ8 CA) 39P3 2011 FUEL TANK Diagram
#
1
FUEL TANK ASSY
39P-W2410-01-01
Unavailable
2
EMBLEM 1
39P-24161-00-00
Unavailable
7
DAMPER, LOCATING 3
5SL-24183-00-00
Unavailable
8
COLLAR
90387-06055-00
Unavailable
14
BRACKET, FUEL PUMP
39P-24491-00-00
Unavailable
15
BRACKET, FUEL TANK 2
2D1-24192-00-00
Unavailable
16
SCREW, BIND
98902-05008-00
Unavailable
17
CLAMP
90461-10010-00
Unavailable
18
SCREW, BIND
98902-05008-00
Unavailable
19
O-RING
19B-24486-01-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
21
PIPE 7
39P-24317-00-00
Unavailable
22
CLIP
90467-090A2-00
Unavailable
23
COVER, TOP SET
99999-04001-00
Unavailable
24
COVER, TANK
39P-241B1-00-00
Unavailable
25
DAMPER
4XV-2834E-00-00
Unavailable
26
DAMPER, LOCATING 1
14B-24181-00-00
Unavailable
27
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
28
SEAL
39P-28307-00-00
Unavailable
29
SEAL, CRANKCASE
1D7-15379-00-00
Unavailable
30
BOLT,HEX. SOCKET BUTTON
90111-05019-00
Unavailable
31
WASHER, PLATE(MG5)
90202-05224-00
Unavailable
32
TANK SIDE COVER ASSY 1
39P-24106-00-00
Unavailable
33
SEAL 3
39P-241A3-00-00
Unavailable
34
SEAL 5
39P-241A5-00-00
Unavailable
35
TANK SIDE COVER ASSY 2
39P-24108-00-00
Unavailable
36
SEAL 4
39P-241A4-00-00
Unavailable
37
SEAL 6
39P-241A6-00-00
Unavailable
38
DAMPER, PLATE 5
2D1-2414P-00-00
Unavailable
39
PIPE, FUEL 1
39P-13971-00-00
Unavailable
40
CLAMP
90464-16005-00
Unavailable
41
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
42
EMBLEM
5SL-2413B-00-00
Unavailable
