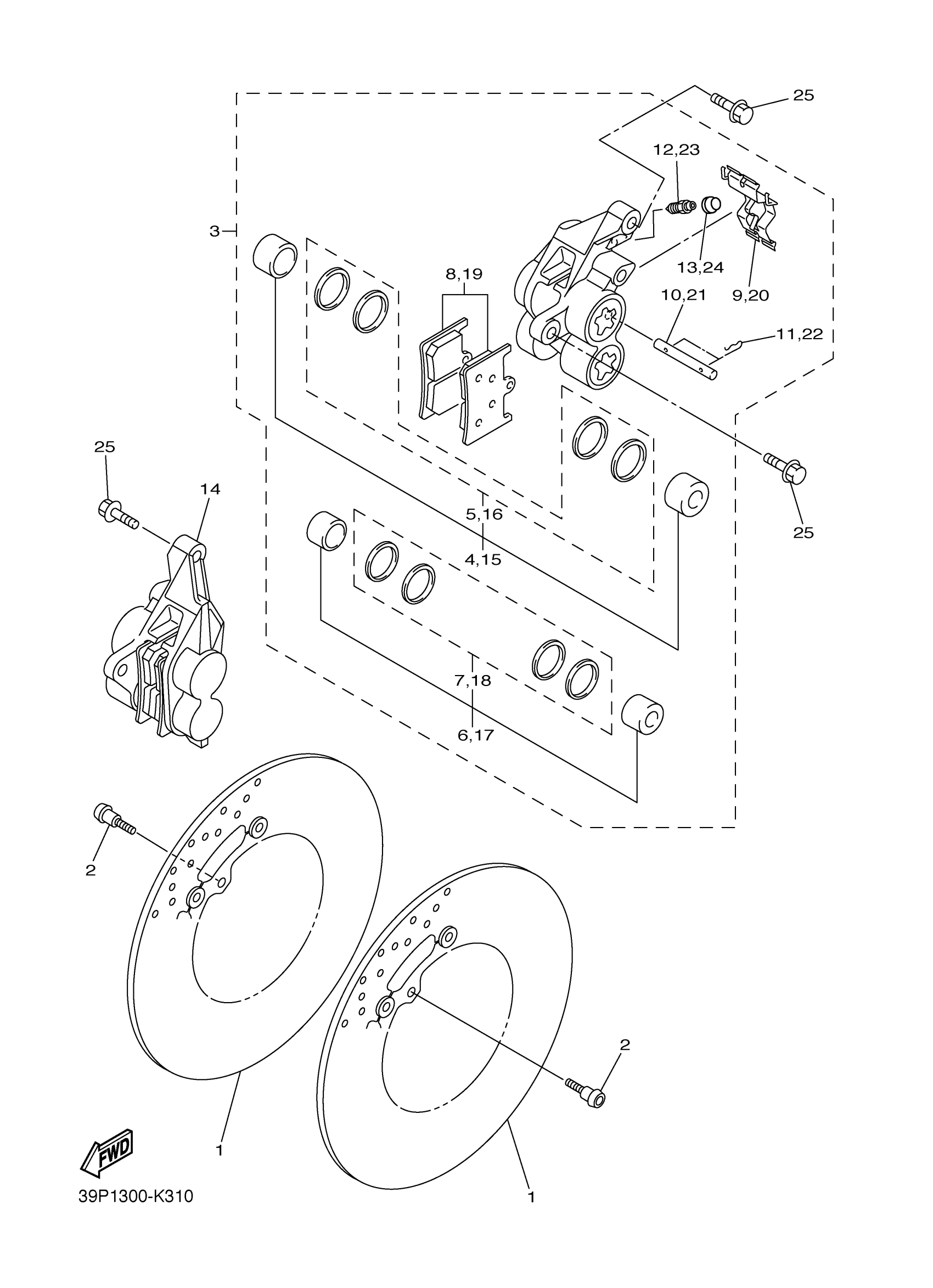

Yamaha FZ8NACB (FZ8 CA) 39P3 2011 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

39P-2581T-00-00

Unavailable

2

BOLT

90109-06254-00

$2.57

3

CALIPER ASSY (LEFT)

39P-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

5

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

6

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

7

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

8

BRAKE PAD KIT

39P-25805-00-00

$54.33

9

SUPPORT, PAD

13S-25919-00-00

$20.44

10

PIN, PAD

4SV-25924-00-00

$34.81

11

CLIP, PAD PIN

3GM-25925-00-00

$9.15

12

SCREW, BLEED

1J3-25824-00-00

$4.44

13

CAP

306-25825-01-00

$8.14

14

CALIPER ASSY (RIGHT)

39P-2580U-00-00

$462.67

15

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

16

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

17

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

18

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

19

BRAKE PAD KIT

39P-25805-00-00

$54.33

20

SUPPORT, PAD

13S-25919-00-00

$20.44

21

PIN, PAD

4SV-25924-00-00

$34.81

22

CLIP, PAD PIN

3GM-25925-00-00

$9.15

23

SCREW, BLEED

1J3-25824-00-00

$4.44

24

CAP

306-25825-01-00

$8.14

25

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
