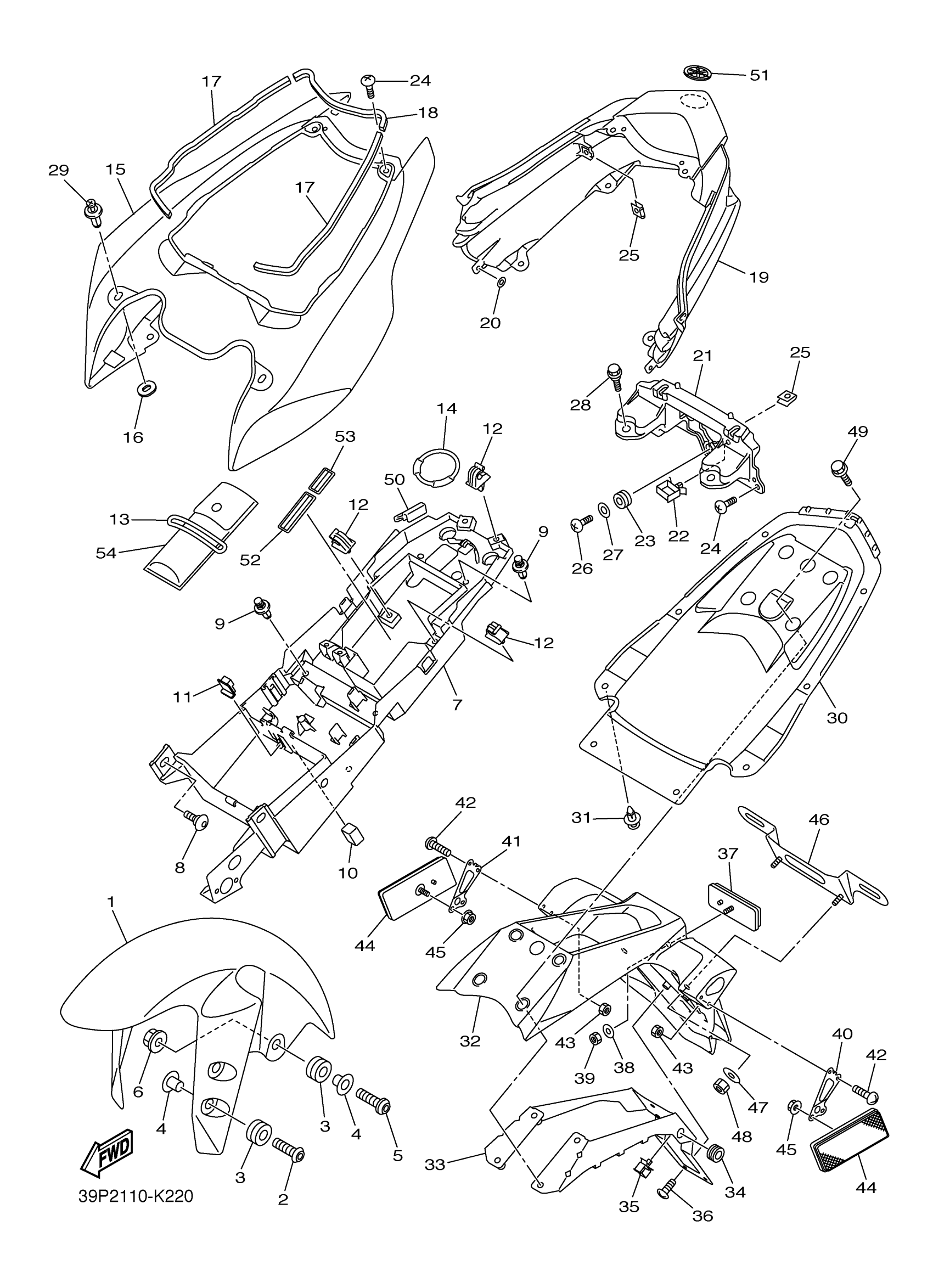

Yamaha FZ8NACB (FZ8 CA) 39P3 2011 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5PW-21511-02-P6

Unavailable

2

SCREW(4DN)

90149-06302-00

Unavailable

3

GROMMET(53Y)

90480-12072-00

$8.49

4

COLLAR

90387-06159-00

$8.49

5

BOLT

90111-06030-00

$4.41

6

NUT, FLANGE

95702-06500-00

$2.39

7

BOX, BATTERY 1

2D1-8212B-02-00

Unavailable

8

BOLT

90109-06253-00

$5.60

9

RIVET(4PH)

90269-07077-00

$8.49

10

SEAL, 2

2D1-216A2-00-00

Unavailable

11

SEAL, 3

2D1-216A3-00-00

Unavailable

12

CLAMP

90464-07259-00

$3.23

13

BAND, TOOL

4XV-21376-00-00

Unavailable

14

BAND

2D1-21646-00-00

$5.49

15

COVER, REAR FENDER

39P-21651-00-P0

Unavailable

16

DAMPER

5PW-2174X-00-00

Unavailable

17

DAMPER, PLATE

90520-05014-00

Unavailable

18

DAMPER, PLATE

90520-05013-00

Unavailable

19

COVER, REAR FENDER 1

39P-2163A-00-00

Unavailable

20

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

21

BRACKET, TAILLIGHT

39P-2117E-00-00

Unavailable

22

CLAMP (1J7)

90464-16021-00

Unavailable

23

GROMMET (4L0)

90480-18276-00

Unavailable

24

SCREW, TAPPING

97702-50016-00

Unavailable

25

NUT, SPRING(1YT)

90183-05042-00

Unavailable

26

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

27

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

28

BOLT

90109-06172-00

Unavailable

29

RIVET(4JH)

90269-07076-00

Unavailable

30

FENDER, REAR

39P-21611-00-00

Unavailable

31

RIVET(4PH)

90269-07077-00

$8.49

32

GUARD, MUD

2D1-21629-10-00

Unavailable

33

BRACKET, REAR STAY

2D1-21688-02-00

Unavailable

34

GROMMET

90480-13004-00

Unavailable

35

CLAMP (1J7)

90464-16021-00

Unavailable

36

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

37

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

38

WASHER, PLATE

90201-05043-00

Unavailable

39

NUT, U

95617-05100-00

Unavailable

40

BRACKET, REAR STAY

5VY-21688-00-00

Unavailable

41

BRACKET, REAR STAY 2

5VY-21689-00-00

Unavailable

42

SCREW, ROUND HEAD(4KM)

90150-04041-00

Unavailable

43

NUT, U (7LY)

95617-04100-00

Unavailable

44

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

45

NUT, FLANGE

95702-05500-00

Unavailable

46

BRACKET, LICENSE

39P-84751-00-00

Unavailable

47

WASHER, PLATE

90201-06088-00

Unavailable

48

NUT, SELF-LOCKING

95617-06100-00

Unavailable

49

BOLT, FLANGE

90105-08129-00

Unavailable

50

MOLD, SEAT

39P-24785-00-00

Unavailable

51

TUNING FORK MARK

4KN-2836B-10-00

Unavailable

52

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

53

LABEL, CAUTION

3TB-24877-A1-00

Unavailable

54

TOOL KIT

39P-28100-01-00

Unavailable
