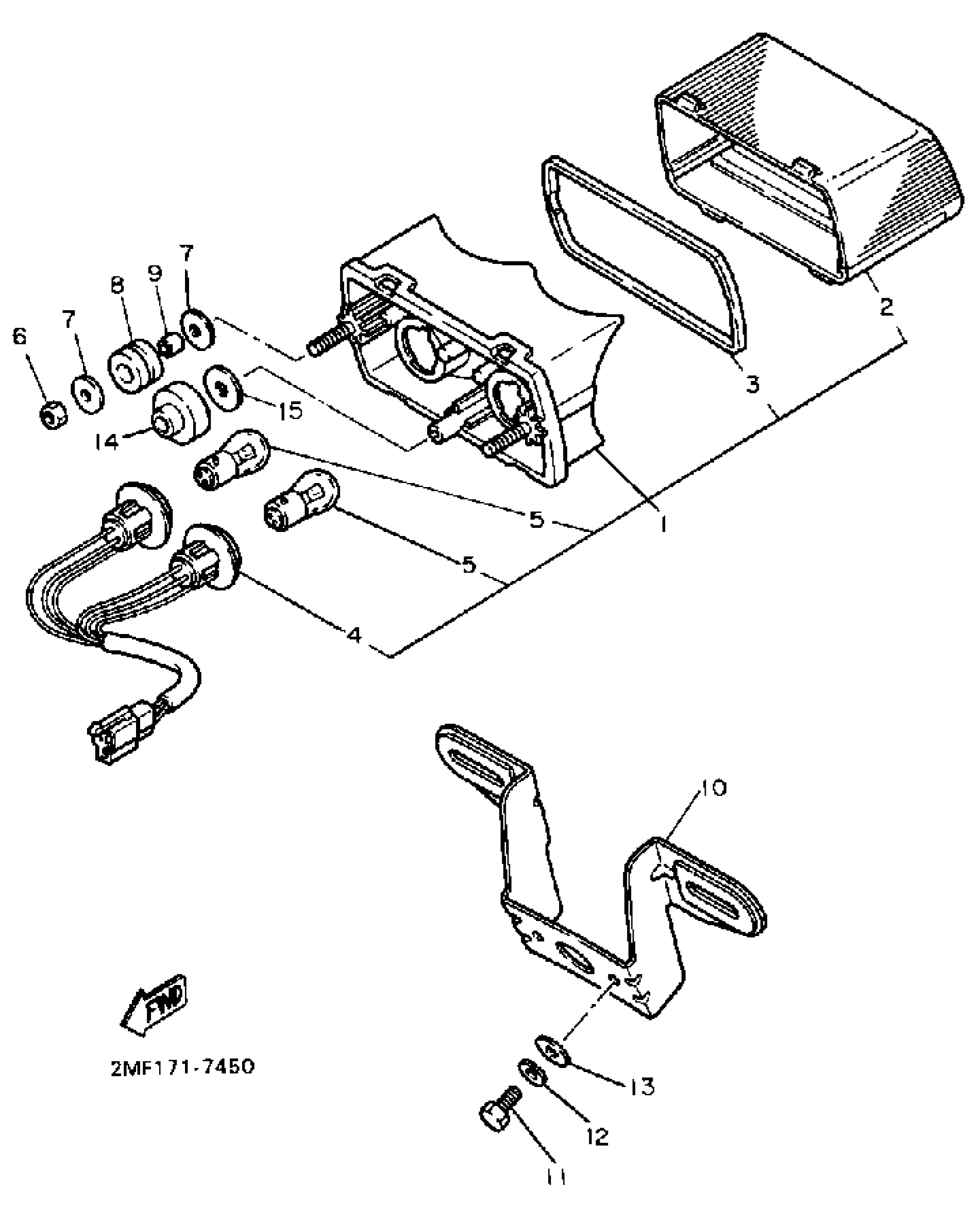

Yamaha FZ750UC (FZ750 CA) 1988 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

52X-84710-60-00

Unavailable

2

LENS, TAILLIGHT

47X-84721-00-00

$59.99

3

GASKET, TAIL LENS

47X-84723-00-00

Unavailable

4

. CORD ASSEMBLY

47X-84735-00-00

Unavailable

5

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

8

GROMMET (4L0)

90480-18276-00

$8.49

9

COLLAR

90387-06113-00

$11.49

10

BRACKET, LICENSE

2KT-84751-00-00

Unavailable

11

BOLT, HEXAGON

97017-06016-00

$8.49

12

WASHER, SPRING

92907-06100-00

$4.25

13

WASHER, PLATE

90201-06380-00

$0.60

14

GROMMET

90480-15259-00

Unavailable

15

WASHER, PLAIN(3BM)

92907-10200-00

$4.99
