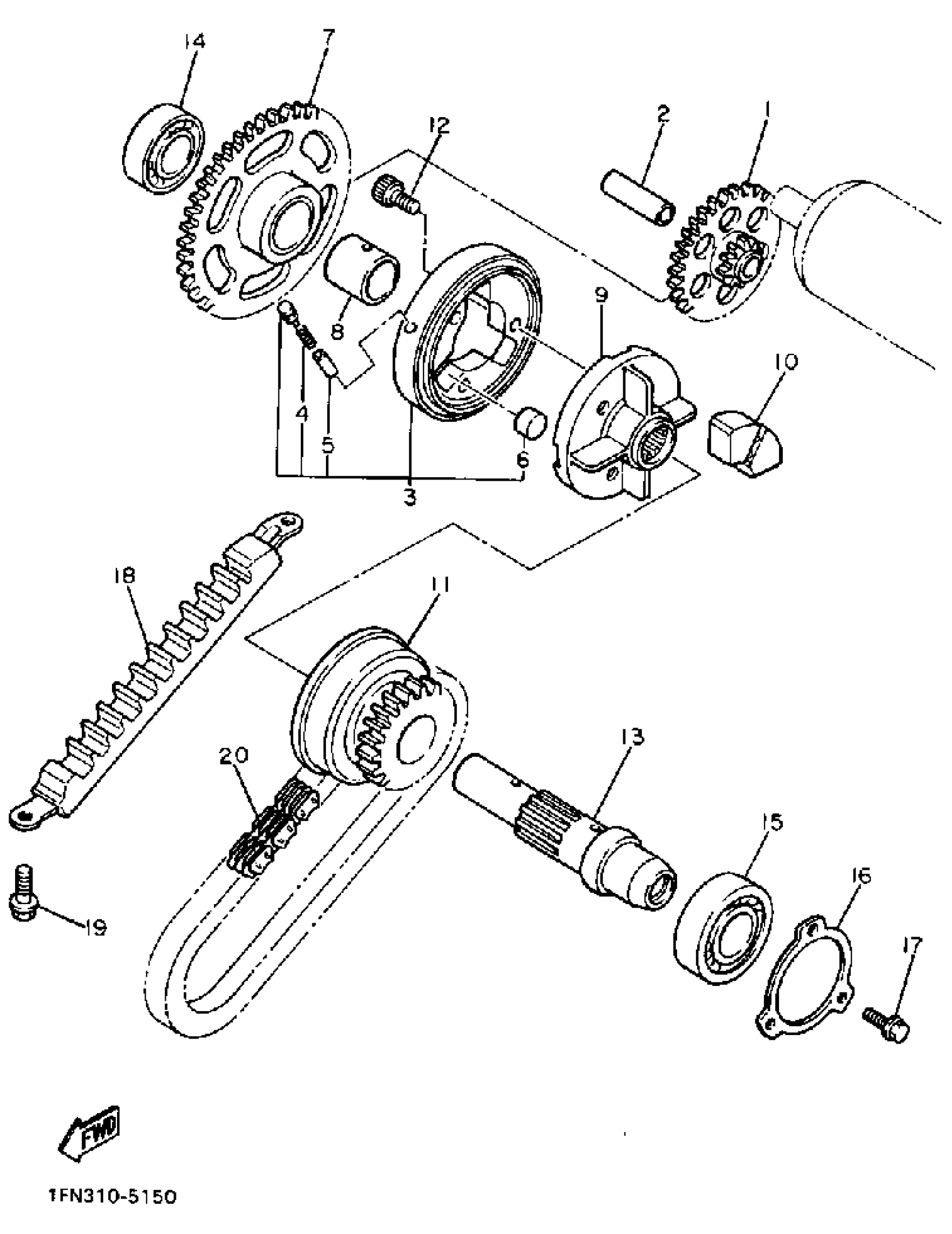

Yamaha FZ750UC (FZ750 CA) 1988 STARTER Diagram

GEAR, IDLER 1

1AE-15512-00-00

Unavailable

SHAFT 1

1AE-15521-00-00

Unavailable

STR CLUTCH OTR ASSEMBLY

1AE-15580-01-00

Unavailable

SPRING, COMPRESSION (25G)

90501-05764-00

$2.02

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

PIN, DOWEL (341)

93603-09106-00

$2.28

GEAR, IDLER 2

1AE-15517-00-00

Unavailable

COLLAR

90387-202A7-00

Unavailable

WHEEL, STARTER

12R-15524-00-00

Unavailable

ABSORBER 1

4H7-16155-01-00

$5.49

SPROCKET, STARTER 2

36Y-15519-00-00

Unavailable

BOLT, SOCKET

91317-08014-00

$8.49

PLATE, BEARING COVER

1AE-15381-00-00

Unavailable

BEARING (7K2)

93306-00423-00

$37.99

BEARING (3Y1)

93306-20541-00

$38.99

PLATE, BEARING COVER

1AE-15381-00-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

GUIDE, UPPER

1AE-11474-00-00

Unavailable

BOLT, FLANGE

95817-06014-00

Unavailable

CHAIN, PRIMARY

4FM-11456-00-00

Unavailable
