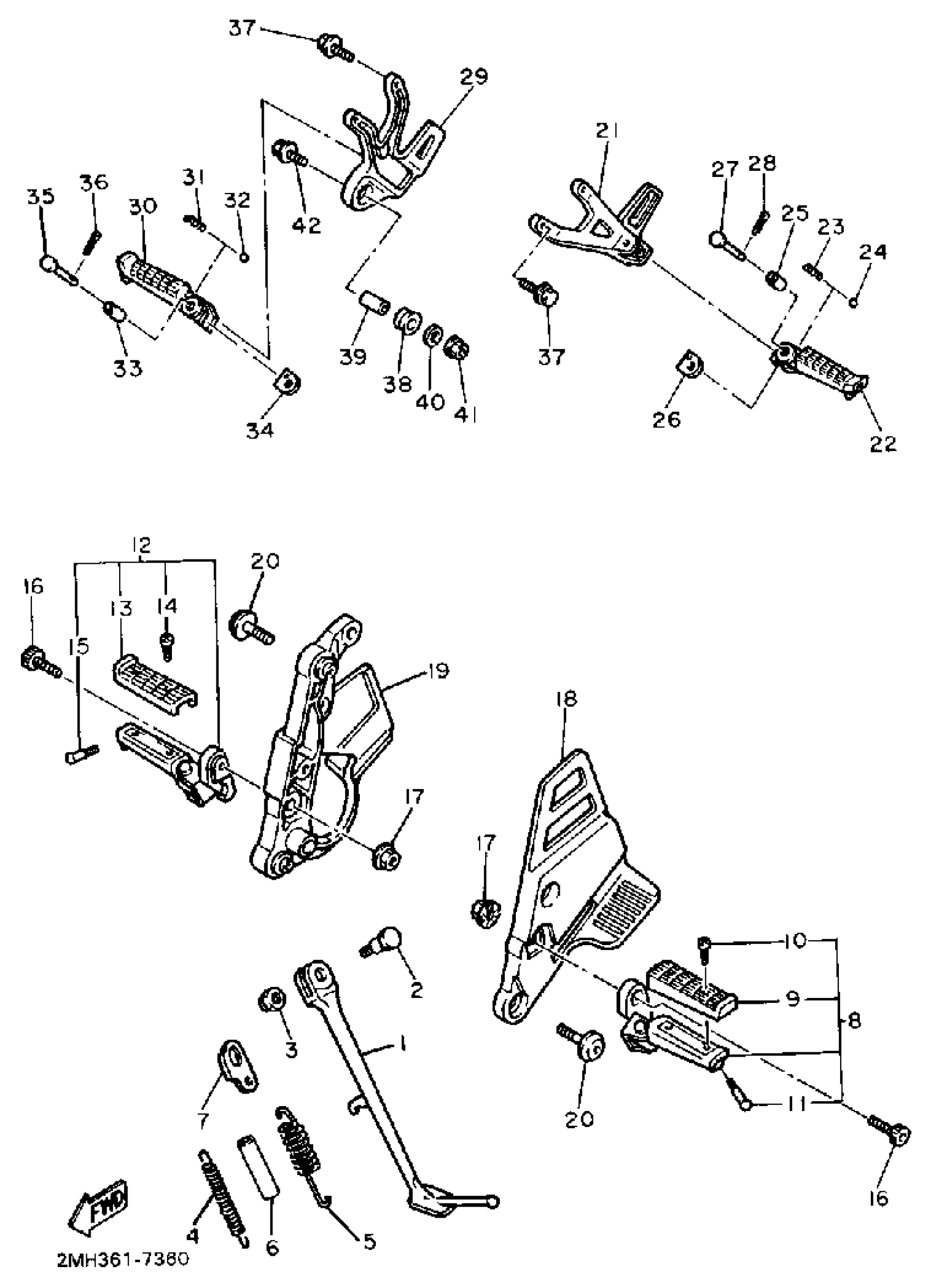

Yamaha FZ750UC (FZ750 CA) 1988 STAND FOOTREST Diagram

#

Description
Price

1

STAND,SIDE

4BP-27311-00-00

Unavailable

2

BOLT(2GH)

90109-104E6-00

$9.49

3

NUT, U

90185-10037-00

$9.49

4

SPRING, TENSION (4K0)

90506-18224-00

$5.60

5

SPRING, TENSION (4K0)

90506-26225-00

$11.49

6

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

7

LINK, SIDE STAND

3VD-27315-00-00

$7.99

8

FRT FOOTREST ASSEMBLY L

2KT-27410-00-00

Unavailable

9

COVER, FOOTREST

2GH-27413-00-00

$45.99

10

SCREW, PAN HEAD

98507-05014-00

$8.49

11

BOLT

90109-08075-00

$7.49

12

FRT FOOTREST ASSEMBLY R

2KT-27420-00-00

Unavailable

13

COVER, FOOTREST

2GH-27413-00-00

$45.99

14

SCREW, PAN HEAD

98507-05014-00

$8.49

15

BOLT

90109-08075-00

$7.49

16

BOLT, SOCKET

91317-10030-00

Unavailable

17

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

18

BRACKET 2

1AE-W2748-00-00

Unavailable

19

BRACKET 3

1AE-W2749-00-00

Unavailable

20

SCREW(1AE)

90149-08222-00

Unavailable

21

BRACKET 4

2KT-2741L-00-00

Unavailable

22

FOOTREST, REAR 1

3VR-27431-02-00

Unavailable

23

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

24

BALL

93501-04011-00

Unavailable

25

COLLAR (10L)

90387-061G0-00

Unavailable

26

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

27

PIN, CLEVIS(1UA)

91701-06045-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable

29

BRACKET 5

2KT-2742L-00-00

Unavailable

30

FOOTREST, REAR 2

3VR-27441-02-00

Unavailable

31

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

32

BALL

93501-04011-00

Unavailable

33

COLLAR (10L)

90387-061G0-00

Unavailable

34

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

35

PIN, CLEVIS(1UA)

91701-06045-00

Unavailable

36

PIN, COTTER

91490-20025-00

Unavailable

37

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

38

DAMPER, MUFFLER BRACKET

2H7-27414-00-00

Unavailable

39

COLLAR (2H7)

90387-10636-00

Unavailable

40

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

41

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

42

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable
