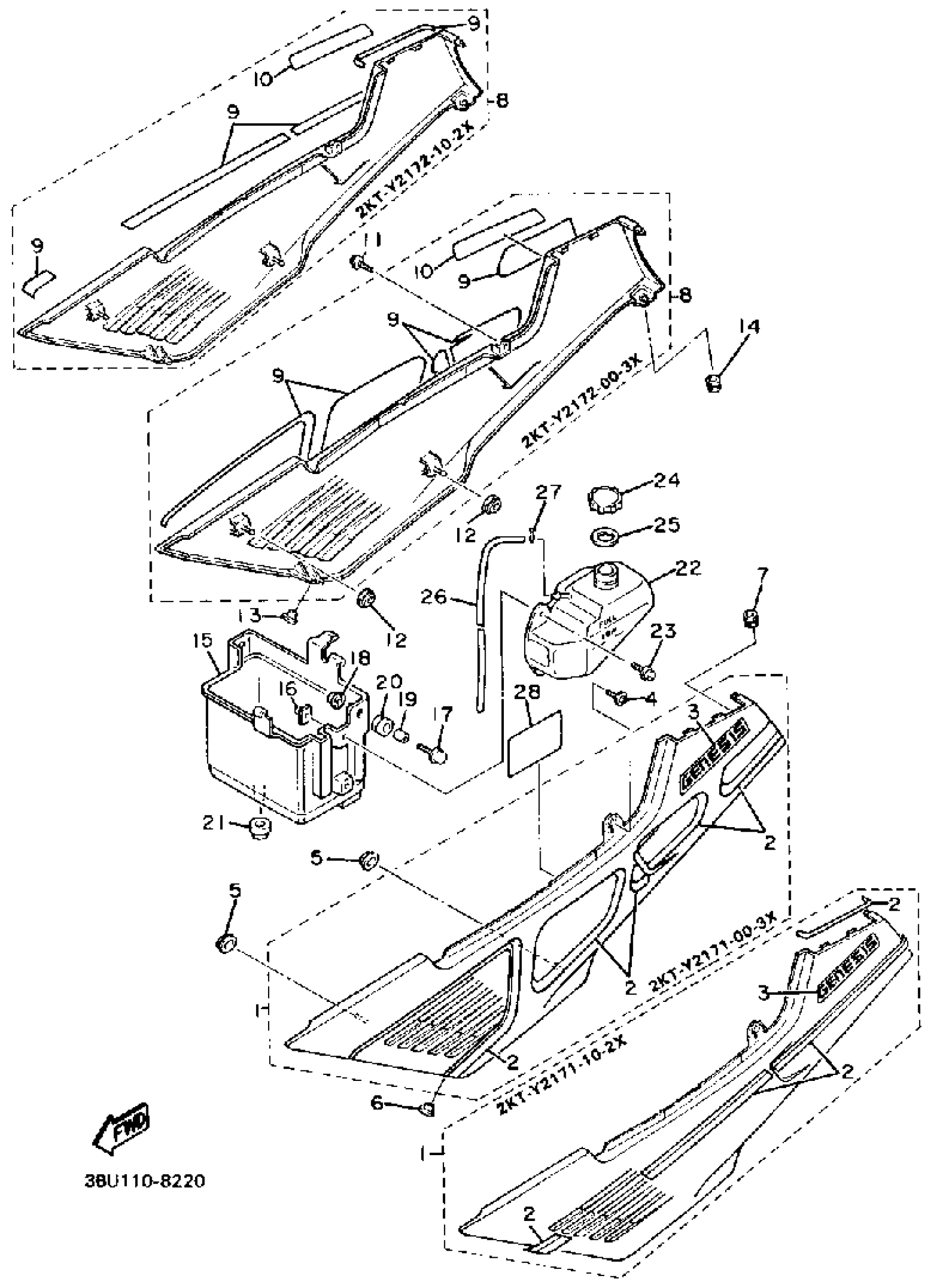

Yamaha FZ750UC (FZ750 CA) 1988 SIDE COVER Diagram

#

Description
Price

1

COVER SIDE 1

2KT-Y2171-00-3X

Unavailable

1

COVER SIDE 1

2KT-Y2171-10-2X

Unavailable

2

GRAPHIC SET 1

2KT-2173L-01-00

Unavailable

2

. GRAPHIC SET 1

2KT-2173L-10-00

Unavailable

3

. EMBLEM 1

2KT-21781-00-00

Unavailable

4

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

5

GROMMET(41Y)

90480-01401-00

$8.49

6

GROMMET

90480-10190-00

Unavailable

7

GROMMET (17J)

90480-10334-00

$9.49

8

COVER, SIDE 2

2KT-Y2172-00-3X

Unavailable

8

COVER, SIDE 2

2KT-Y2172-10-2X

Unavailable

9

. GRAPHIC SET 2 (FINE RED) (SILKY WHITE)

2KT-2174L-01-00

Unavailable

9

. GRAPHIC SET 2

2KT-2174L-10-00

Unavailable

10

. EMBLEM 1

2KT-21781-00-00

Unavailable

11

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

12

GROMMET(41Y)

90480-01401-00

$8.49

13

GROMMET

90480-10190-00

Unavailable

14

GROMMET (17J)

90480-10334-00

$9.49

15

BOX

36Y-21245-00-00

Unavailable

16

PLATE

31A-14477-10-00

Unavailable

17

BOLT, WITH WASHER(2WG)

90119-06172-00

Unavailable

18

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

19

COLLAR

90387-06113-00

Unavailable

20

GROMMET (2N3)

90480-16233-00

Unavailable

21

GROMMET

90480-23192-00

Unavailable

22

TANK, RECOVERY

1AE-21871-00-00

Unavailable

23

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

24

CAP

26H-21875-00-00

Unavailable

25

GASKET

26H-21874-00-00

Unavailable

26

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

27

CLIP 101235600

90467-08003-00

Unavailable

28

PLATE, SPEC

3BU-21683-80-00

Unavailable

28

PLATE, SPECIFICATIO

(3BV-21687-80-00)

Unavailable
