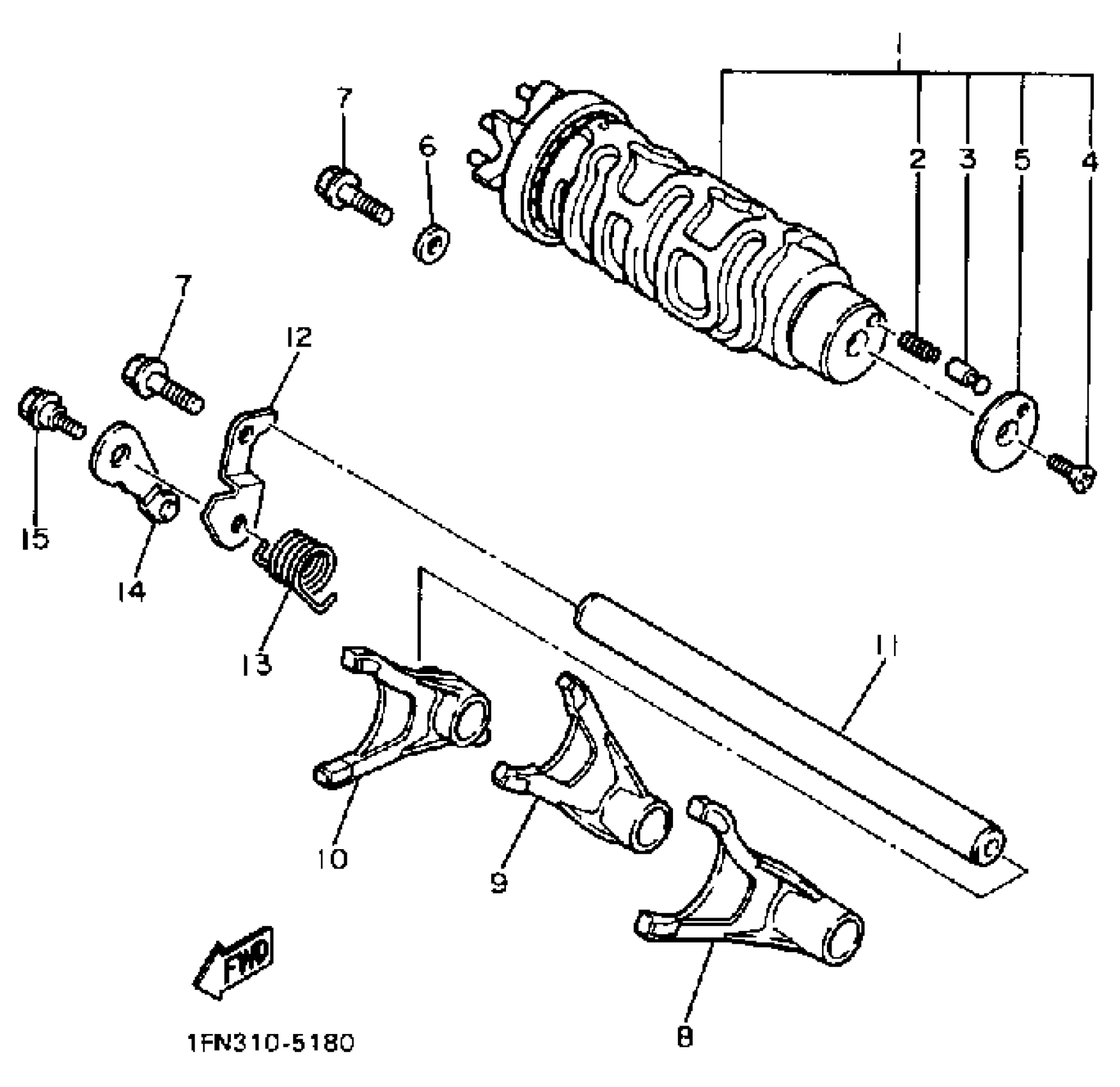

Yamaha FZ750UC (FZ750 CA) 1988 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

4FM-18540-02-00

Unavailable

2

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

3

POINT, NEUTRAL

4UN-18542-00-00

$8.99

4

SCREW, FLAT

98707-05012-00

$1.71

5

PLATE, SIDE 2

278-18566-00-00

Unavailable

6

WASHER, PLATE

90201-06045-00

$8.49

7

BOLT, FLANGE

95817-06016-00

$2.75

8

FORK,SHIFT 1

4FM-18511-00-00

Unavailable

9

FORK,SHIFT 2

4FM-18512-00-00

Unavailable

10

FORK,SHIFT 3

4FM-18513-00-00

Unavailable

11

BAR, SHIF FRK GDE 1

12R-18531-00-00

Unavailable

12

STOPPER, SHIFT BAR

1AE-18536-00-00

Unavailable

13

SPRING, TORSION

90508-26681-00

Unavailable

14

STOPPER LEVER ASSY

36Y-18140-00-00

Unavailable

15

BOLT

90109-06036-00

$9.49
