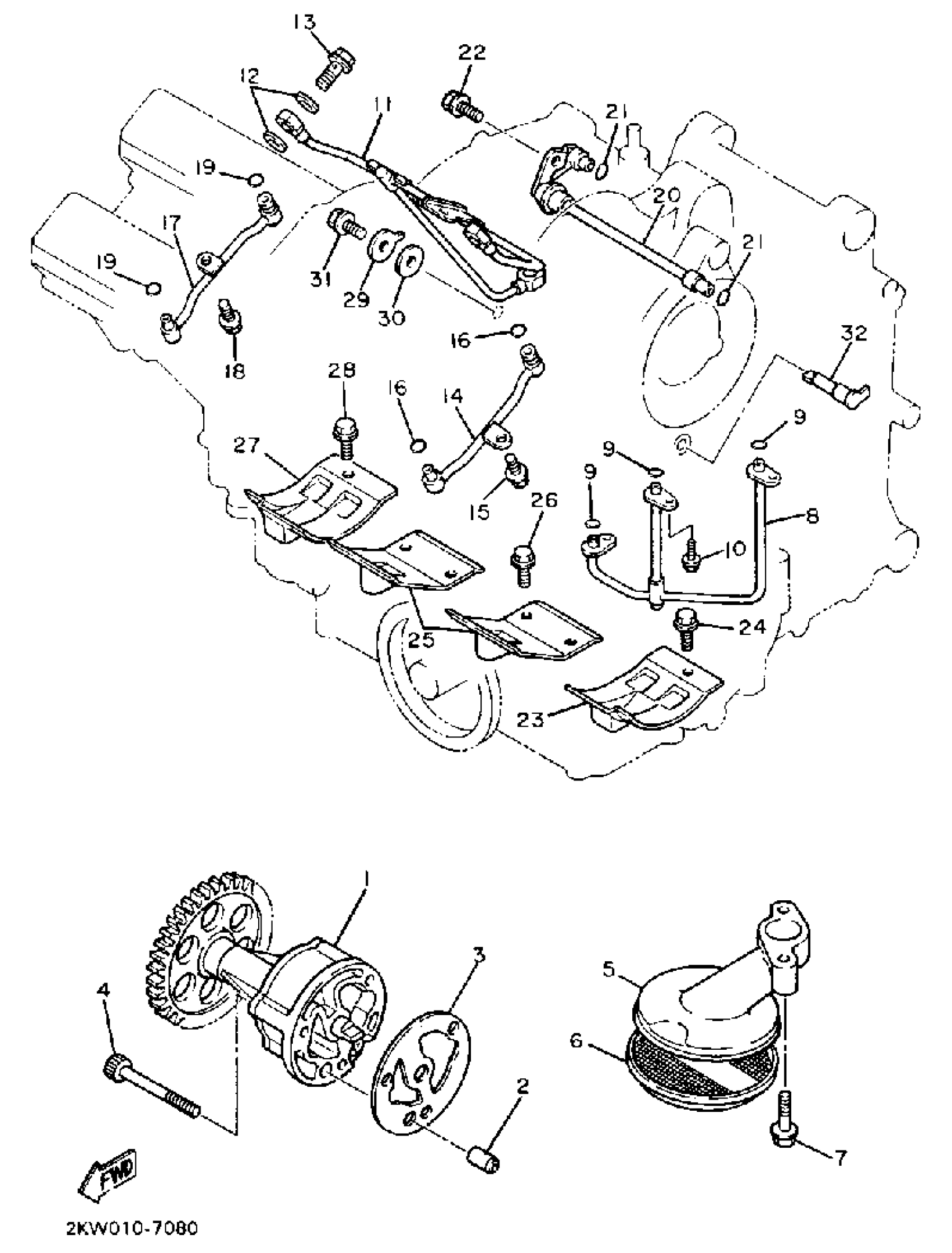

Yamaha FZ750UC (FZ750 CA) 1988 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

1AE-13300-00-00

Unavailable

2

PIN, DOWEL(N04)

91808-12024-00

$4.24

3

GASKET, PUMP COVER

2GH-13329-00-00

Unavailable

4

BOLT,SOCKET

91317-06050-00

$3.88

5

HOUSING, STRAINER

3KS-13412-00-00

Unavailable

6

STRAINER, OIL

1AE-13411-00-00

Unavailable

7

BOLT, SMALL FLANGE

95027-06030-00

$3.98

8

PIPE, DELIVERY 1

1AE-13161-00-00

Unavailable

9

O-RING(1AE)

93210-06714-00

$5.60

10

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

11

PIPE, DELIVERY 2

1AE-13171-01-00

Unavailable

12

GASKET (5R6)

90430-10171-00

$3.18

13

BOLT, UNION(3GM)

90401-10159-00

$11.49

14

PIPE, DELIVERY 3

(2GH-13181-00-00)

Unavailable

15

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

16

O-RING (26H)

93210-06632-00

Unavailable

17

PIPE,DELIVERY 4

2GH-13191-00-00

Unavailable

18

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

19

O-RING (26H)

93210-06632-00

Unavailable

20

PIPE, DELEVERY 5

1AE-1316E-00-00

Unavailable

21

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

22

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

23

PLATE, BUFFLE 1

2GH-15123-00-00

Unavailable

24

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

25

PLATE, BUFFLE 2

1AE-15124-00-00

Unavailable

26

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

27

PLATE, BUFFLE 3

2GH-15133-00-00

Unavailable

28

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

29

WASHER, PLATE

90201-060K2-00

Unavailable

30

GASKET

1AE-13475-00-00

Unavailable

31

BOLT, FLANGE

95817-06016-00

Unavailable

32

NOZZLE

1AE-13454-00-00

Unavailable
