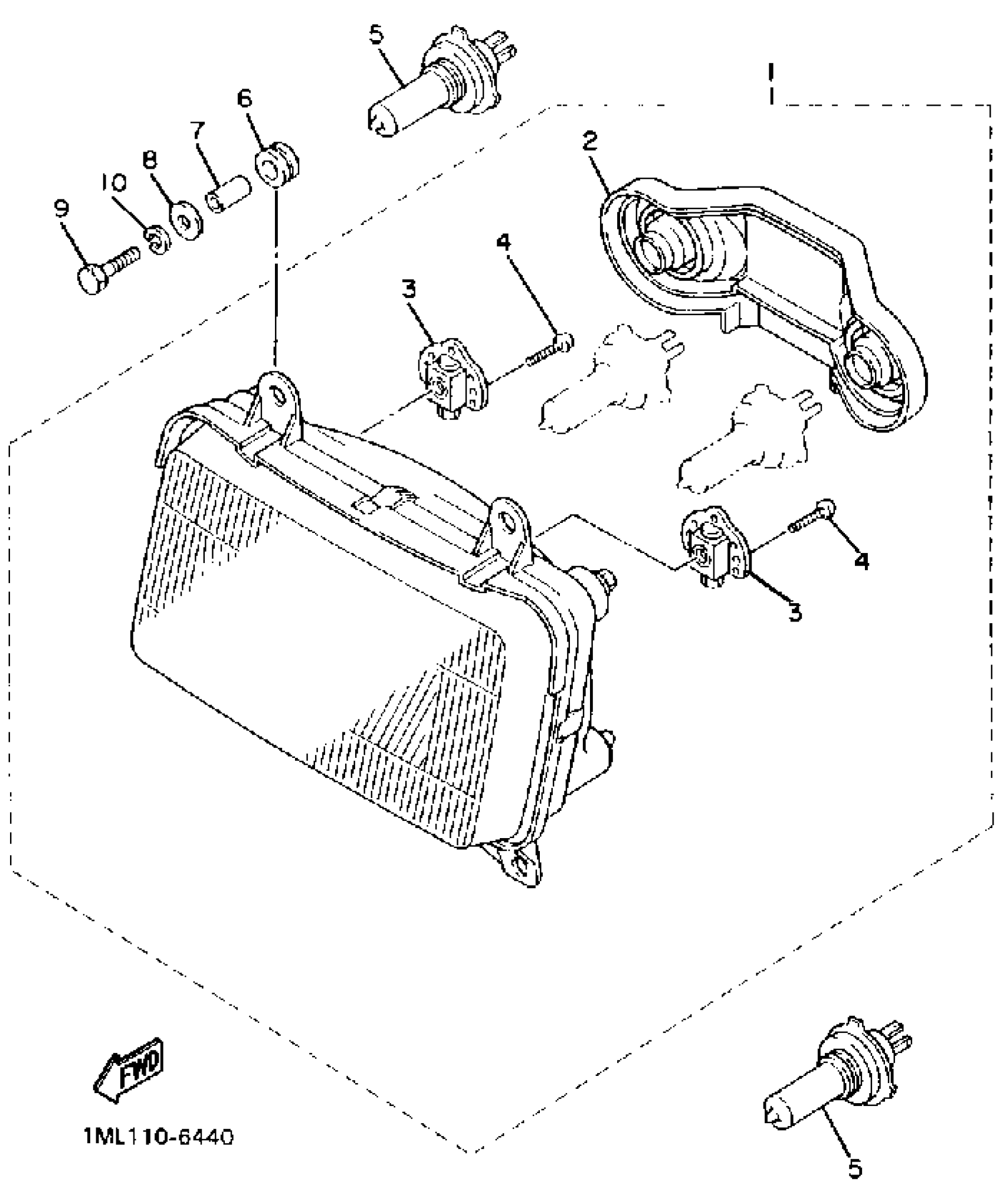

Yamaha FZ750UC (FZ750 CA) 1988 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

1LJ-84303-A0-00

Unavailable

2

. COVER, SOCKET

1FM-84397-00-00

Unavailable

3

GEAR UNIT ASSEMBLY

(1AE-8430M-00-00)

Unavailable

4

SCREW, TAPPING(4HP)

97707-40616-00

$1.15

5

BULB, HEADLIGHT

1ML-84314-00-XX

Unavailable

6

GROMMET 839774310000

90480-14023-00

$4.34

7

COLLAR (1T2)

90387-07598-00

$4.51

8

WASHER, PLATE 8221447500

90201-06057-00

$3.52

9

BOLT, HEXAGON

97017-06025-00

$2.78

10

WASHER, SPRING

92907-06100-00

$0.98
