Description

Price

1

WHEEL, CAST FRONT

1GE-25168-00-UA

Unavailable

2

SPACER(36Y)

90560-15255-00

Unavailable

3

FLANGE, SPACER

146-25115-00-00

$6.99

4

BEARING

93306-30212-00

$40.99

5

OIL SEAL (22X42X7)

93102-22014-00

$12.49

6

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

8

OIL SEAL (45X56X6)

93105-45017-00

$14.99

9

TIRE

94112-161J7-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

GEAR UNIT ASSY

3M5-25190-10-00

Unavailable

13

AXLE, WHEEL

47X-25181-00-00

Unavailable

14

COLLAR (1L9)

90387-15550-00

Unavailable

15

WASHER (525)

90201-15238-00

Unavailable

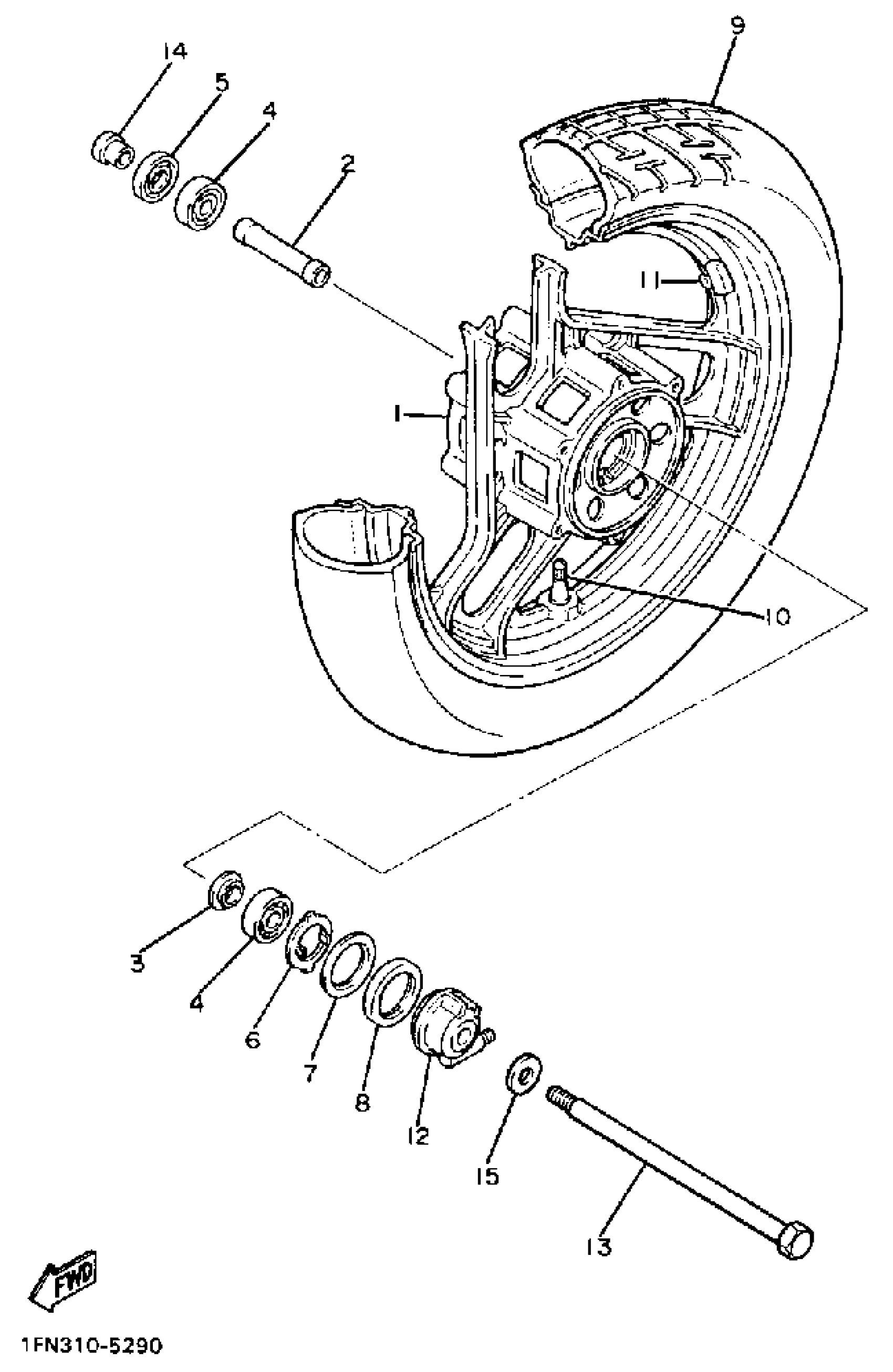

Yamaha FZ750UC (FZ750 CA) 1988 FRONT WHEEL Diagram

WHEEL, CAST FRONT

SPACER(36Y)

FLANGE, SPACER

BEARING

OIL SEAL (22X42X7)

CLUTCH, METER (371,447)

RETAINER, CLUTCH (371,447)

OIL SEAL (45X56X6)

TIRE

VALVE, RIM(2GH)

BALANCER, WHEEL

BALANCER, WHEEL

BALANCER, WHEEL

GEAR UNIT ASSY

AXLE, WHEEL

COLLAR (1L9)

WASHER (525)
