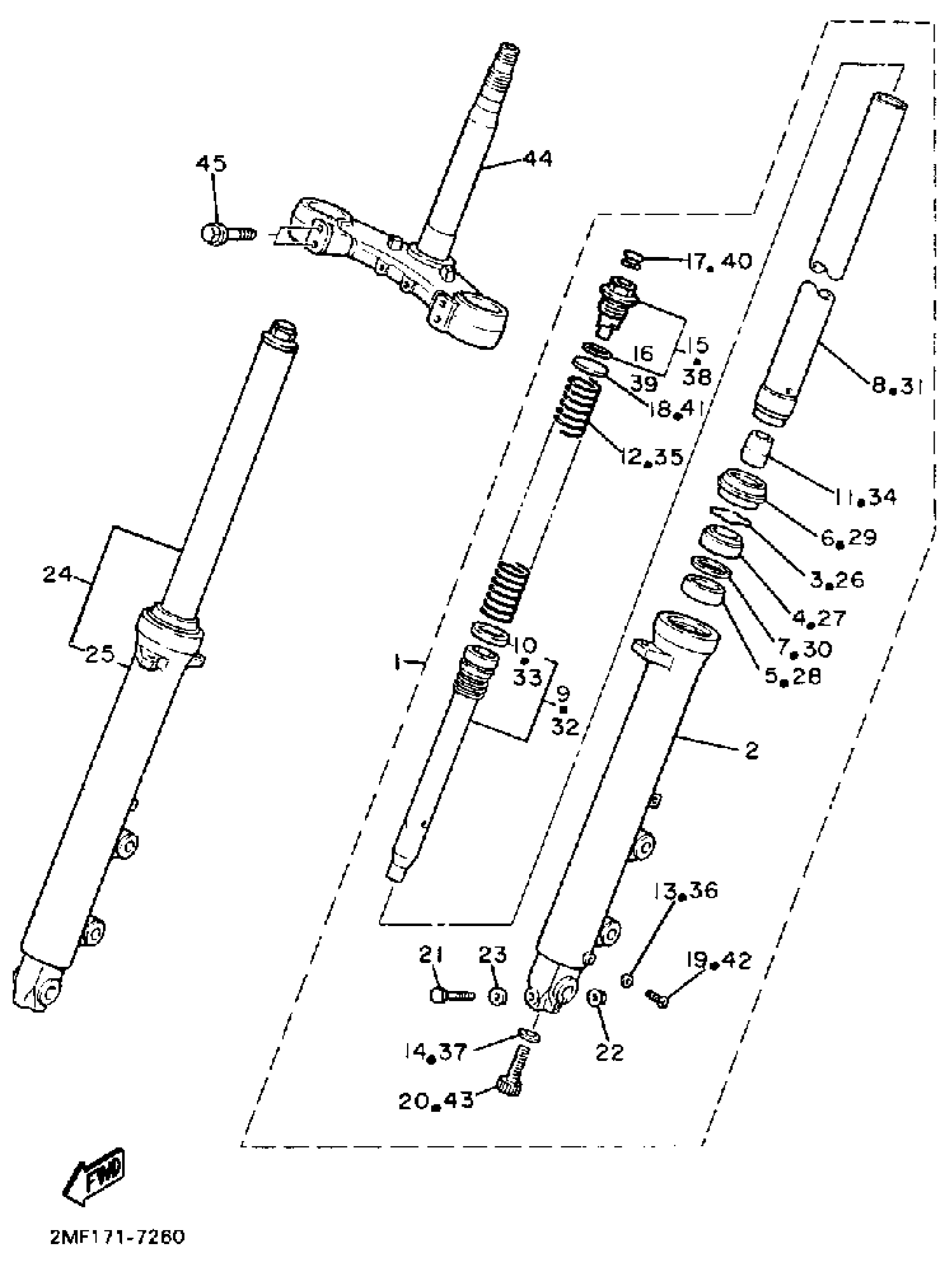

Yamaha FZ750UC (FZ750 CA) 1988 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

2KT-23102-00-00

Unavailable

2

. TUBE, OUTER 1

2KT-23126-00-00

Unavailable

3

CLIP, OIL SEAL

26H-23156-00-00

$7.99

4

OIL SEAL

1AE-23145-00-00

$24.99

5

METAL, SLIDE 1

3KS-23125-00-00

Unavailable

6

SEAL, DUST

1AE-23144-00-00

$14.49

7

WASHER, SPRING UPPER

1AE-23149-00-00

$6.99

8

INNER TUBE COMP.1

3KS-23110-00-00

Unavailable

9

. CYLINDER, FRTFRK

2KT-23170-00-00

Unavailable

10

.. RING, PISTON

1AE-23157-00-00

Unavailable

11

SPINDLE, TAPER

(3R4-23173-L0-00)

Unavailable

12

. SPRING, FRONT FORK

2KT-23141-00-00

Unavailable

13

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

14

GASKET

2K8-23158-L0-00

$15.49

15

. BOLT, CAP

2KT-23111-00-00

Unavailable

16

O-RING

1W4-23114-L0-00

Unavailable

17

CAP, FRONT FORK

2KT-23168-00-00

Unavailable

18

. WASHER, SPRING UPR

2KT-23149-00-00

Unavailable

19

PLUG, DRAIN

(4W5-23119-00-00)

Unavailable

20

BOLT

3R4-23181-L0-00

Unavailable

21

BOLT, HEXAGON

97017-08060-00

Unavailable

22

NUT, U

95617-08100-00

Unavailable

23

WASHER(6TA)

92907-08600-00

Unavailable

24

FRONT FORK ASSEMBLY R

2KT-23103-00-00

Unavailable

25

. TUBE, OUTER 2

2KT-23136-00-00

Unavailable

26

CLIP, OIL SEAL

26H-23156-00-00

$7.99

27

OIL SEAL

1AE-23145-00-00

$24.99

28

METAL, SLIDE 1

3KS-23125-00-00

Unavailable

29

SEAL, DUST

1AE-23144-00-00

$14.49

30

WASHER, SPRING UPPER

1AE-23149-00-00

$6.99

31

INNER TUBE COMP.1

3KS-23110-00-00

Unavailable

32

. CYLINDER, FRTFRK

2KT-23170-00-00

Unavailable

33

.. RING, PISTON

1AE-23157-00-00

Unavailable

34

SPINDLE, TAPER

(3R4-23173-L0-00)

Unavailable

35

. SPRING, FRONT FORK

2KT-23141-00-00

Unavailable

36

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

37

GASKET

2K8-23158-L0-00

$15.49

38

. BOLT, CAP

2KT-23111-00-00

Unavailable

39

O-RING

1W4-23114-L0-00

Unavailable

40

CAP, FRONT FORK

2KT-23168-00-00

Unavailable

41

. WASHER, SPRING UPR

2KT-23149-00-00

Unavailable

42

PLUG, DRAIN

(4W5-23119-00-00)

Unavailable

43

BOLT

3R4-23181-L0-00

Unavailable

44

UNDER BRACKET

1AE-23340-00-00

Unavailable

45

BOLT, FLANGE

95814-08040-00

Unavailable
