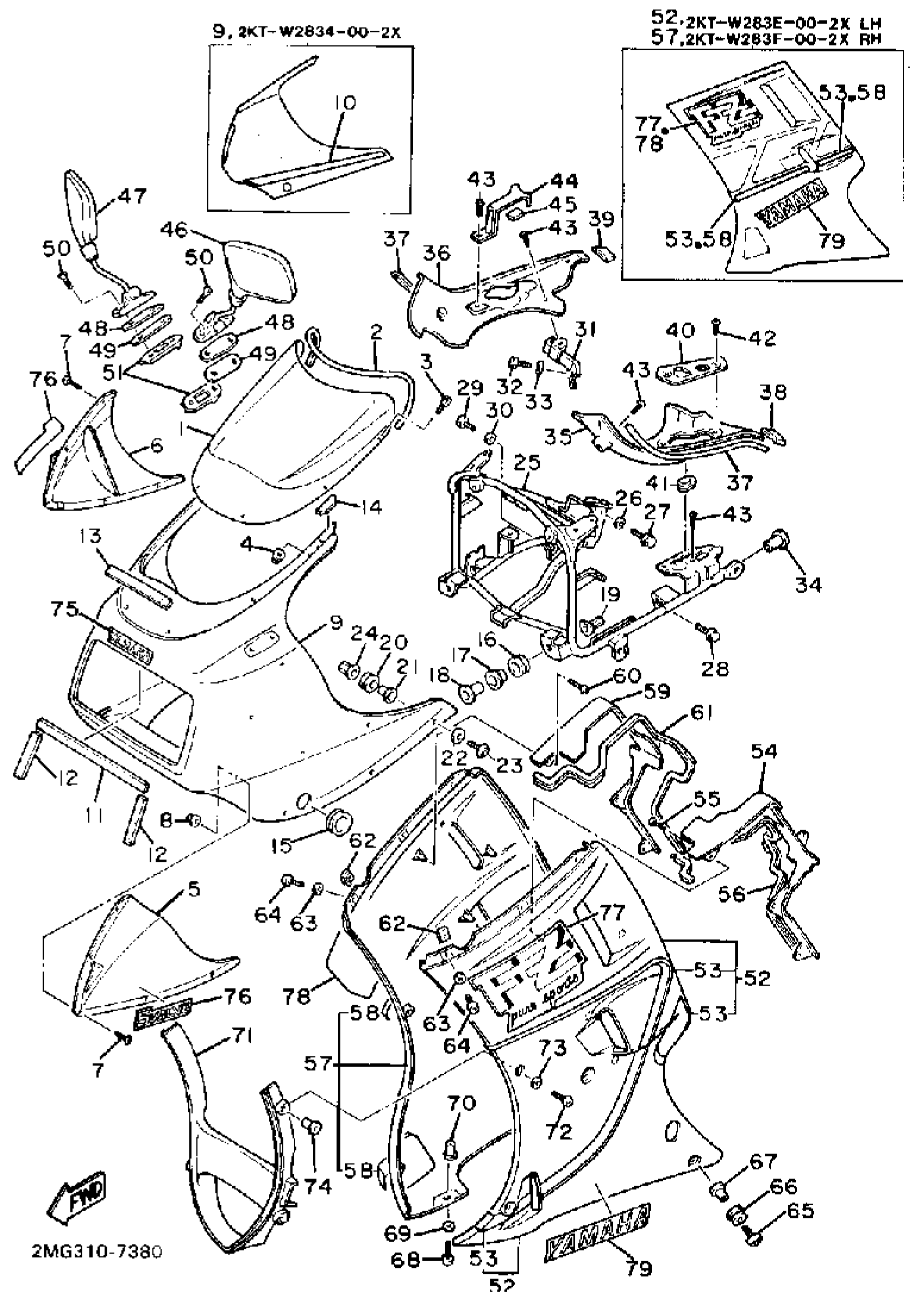

Yamaha FZ750UC (FZ750 CA) 1988 FAIRING Diagram
#
1
WINDSHIELD
2KT-28381-00-00
Unavailable
5
PROTECTOR 1
2KT-2834V-00-00
Unavailable
5
PROTECTOR 1
2KT-2834V-10-00
Unavailable
6
PROTECTOR 2
2KT-2834W-00-00
Unavailable
6
PROTECTOR 2
2KT-2834W-10-00
Unavailable
9
BODY, FRONT UPPER 1
2KT-2835G-00-GE
Unavailable
9
BODY, COWLING
2KT-W2834-00-2X
Unavailable
10
. GRPHC SET, COWLING
2KT-28390-00-00
Unavailable
11
DAMPER
1AE-28371-00-00
Unavailable
12
DAMPER
1AE-28372-00-00
Unavailable
13
DAMPER (L.H)
1AE-2834E-00-00
Unavailable
14
DAMPER (R.H)
1AE-2834F-00-00
Unavailable
15
GROMMET(3GM)
90480-35526-00
Unavailable
16
GROMET (3X3)
90480-14229-00
Unavailable
17
GROMMET(1FN)
90480-14429-00
Unavailable
18
COLLAR (29U)
90387-066H4-00
Unavailable
19
NUT
1AE-28363-00-00
Unavailable
20
GROMMET (1E5)
90480-13163-00
Unavailable
21
COLLAR (11G)
90387-061F9-00
Unavailable
22
WASHER PLATE 122217250000
90202-07015-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(3GM)
90110-06202-00
Unavailable
24
NUT (1AE)
90179-06500-00
Unavailable
25
STAY 1
2KT-28356-00-00
Unavailable
26
WASHER(JN5)
92907-08100-00
Unavailable
27
BOLT, HEXAGON
97017-08016-00
Unavailable
28
BOLT, FLANGE
95817-06012-00
Unavailable
29
BOLT,SOCKET
91317-06012-00
Unavailable
30
WASHER(6TA)
92907-06200-00
Unavailable
31
STAY 2
1AE-28357-00-00
Unavailable
32
BOLT(3JP)
97017-06010-00
Unavailable
33
WASHER, SPRING
92907-06100-00
Unavailable
34
PLUG, BLIND
3Y1-21279-00-00
Unavailable
35
PANEL, INNER 1
1AE-2836K-00-00
Unavailable
36
PANEL, INNER 2
1AE-2836L-00-00
Unavailable
37
MOLD 2
1AE-28346-00-00
Unavailable
38
MOLD 3
1AE-28347-00-00
Unavailable
39
MOLD 4
1AE-28348-00-00
Unavailable
40
COVER
1AE-28365-00-00
Unavailable
41
GROMMET
90480-01430-00
Unavailable
42
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
43
SCREW, BINDING (10V)
90154-05013-00
Unavailable
44
PROTECTOR 1
1AE-2834V-00-00
Unavailable
45
DAMPER 5
1AE-2837J-00-00
Unavailable
46
MIRROR ASSEMBLY
1AE-26280-00-00
Unavailable
47
MIRROR ASSEMBLY
1AE-26290-00-00
Unavailable
48
PLATE, MIRROR FITTING 1
1AE-26298-00-00
Unavailable
49
PLATE, MIRROR FITTING 2
3CV-26299-00-00
Unavailable
50
SCREW, FLAT
98707-06025-00
Unavailable
51
NUT1
1AE-26294-00-00
Unavailable
52
BODY FRONT LOWER 1
2KT-W283E-00-1X
Unavailable
52
. BODY FRONT LOWER 1
2KT-W283E-00-2X
Unavailable
53
. GRAPHIC SET3 COWLN
2KT-2836V-00-00
Unavailable
53
. GRAPHIC SET3 COWLN
2KT-2836V-10-00
Unavailable
54
PLATE 1
2KT-28396-00-00
Unavailable
55
SCREW, PAN TAP.2 SLIT
97707-50614-00
Unavailable
56
MOLD 5
2KT-2834G-00-00
Unavailable
57
BODY FRONT LOWER 2
2KT-W283F-00-1X
Unavailable
57
BODY FRONT LOWER 2
2KT-W283F-00-2X
Unavailable
58
. GRAPHIC SET4 COWLN
2KT-2836W-00-00
Unavailable
58
. GRAPHIC SET4 COWLN
2KT-2836W-10-00
Unavailable
59
PLATE 2
2KT-28397-00-00
Unavailable
60
SCREW, PAN TAP.2 SLIT
97707-50614-00
Unavailable
61
MOLD 6
2KT-2834H-00-00
Unavailable
62
NUT, SPRING
90183-051A0-00
Unavailable
63
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
64
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
65
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
66
GROMMET
90480-13014-00
Unavailable
67
COLLAR(1LJ)
90387-067N5-00
Unavailable
68
SCREW(3YF)
90149-05299-00
Unavailable
69
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
70
NUT(1KT)
90179-05523-00
Unavailable
71
PANEL, INNER 3
2KT-2836M-00-GE
Unavailable
71
PANEL, INNER 3
2KT-2836M-00-VA
Unavailable
72
SCREW(3YF)
90149-05299-00
Unavailable
73
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
74
NUT(1KT)
90179-05523-00
Unavailable
75
EMBLEM, YAMAHA
99241-00080-00
Unavailable
75
EMBLEM, YAMAHA
99243-00080-00
Unavailable
76
EMBLEM 1
2KT-2839H-00-00
Unavailable
77
EMBLEM
2KT-28328-00-00
Unavailable
77
EMBLEM
2KT-28328-10-00
Unavailable
78
EMBLEM
2KT-28338-00-00
Unavailable
78
EMBLEM
2KT-28338-10-00
Unavailable
79
. EMBLEM
2AX-28315-00-00
Unavailable
79
EMBLEM
2KT-28315-10-00
Unavailable
