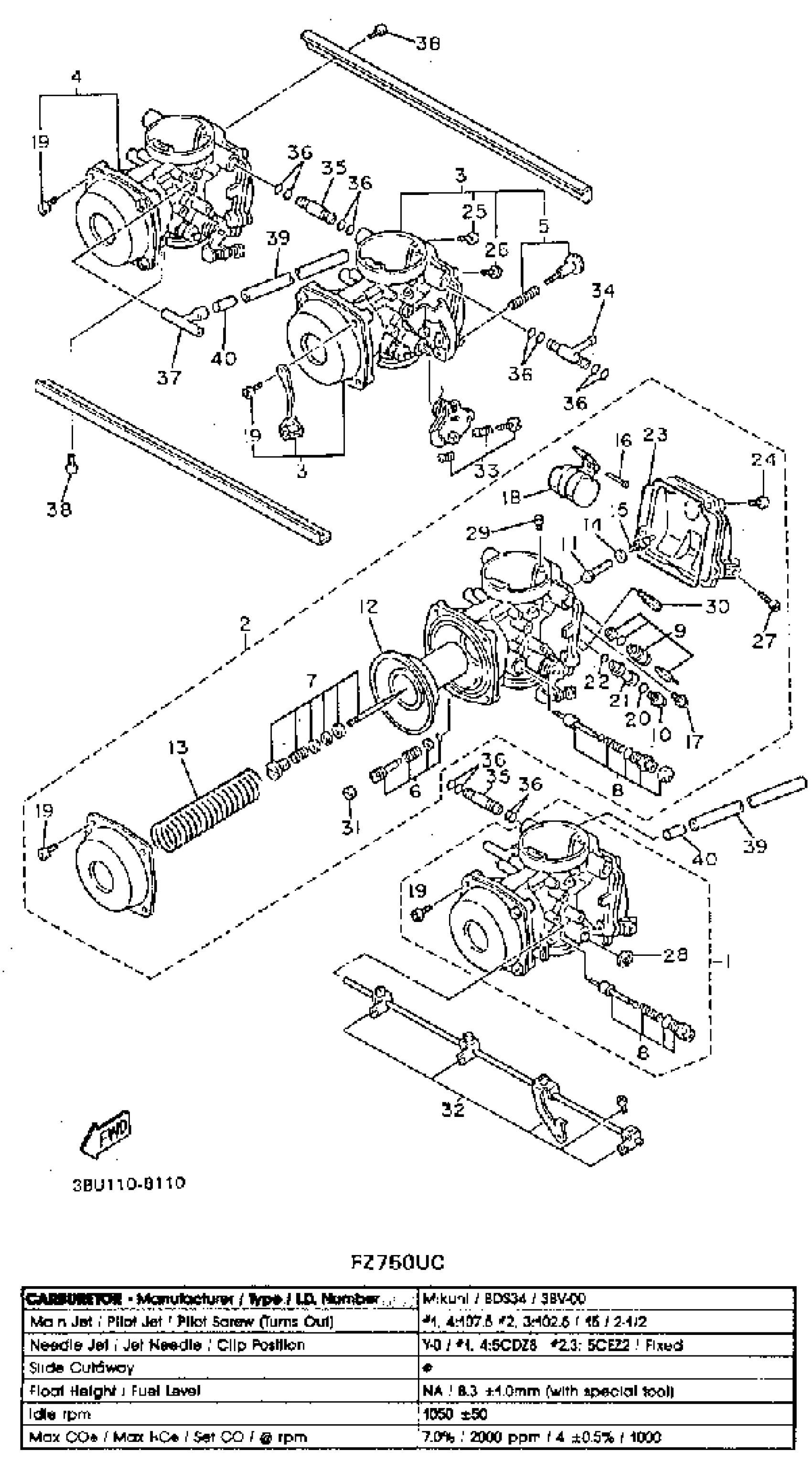

Yamaha FZ750UC (FZ750 CA) 1988 CARBURETOR CALIFORNIA MODEL ONLY Diagram

#

Description

Price

1

CARBURETOR ASSEMBLY 1

3BV-14901-00-00

Unavailable

2

CARBURETOR ASSEMBLY 2

3BV-14902-00-00

Unavailable

3

CARBURETOR ASSEMBLY 3

3BV-14903-00-00

Unavailable

4

CARBURETOR ASSEMBLY 4

3BV-14904-00-00

Unavailable

5

.. THROTTLE SCREW SET

1AE-14103-00-00

Unavailable

6

PILOT SCREW SET

12R-14105-00-00

$17.49

7

.. NEEDLE SET

1AE-1490J-00-00

Unavailable

7

. NEEDLE VALVE SET

3BV-1490J-00-00

Unavailable

8

.. STARTER SET

1AE-1410A-00-00

Unavailable

8

STARTER SET

1FN-1410A-00-00

$79.99

9

NEEDLE VALVE SET

3CF-14107-12-00

$68.99

10

JET,MA1N #102.5

620-1423A-71-A0

$10.99

10

.. JET, MAIN#1075

620-1423A-72-A0

Unavailable

11

.. NOZZLE, MAIN

1AE-14141-90-00

Unavailable

12

DIAPHRAGM ASSY

1AE-14940-00-00

Unavailable

13

.. SPRING, DIAPHRAGM

1AE-14933-00-00

Unavailable

14

WASHER,MAIN JET

137-14153-00-00

Unavailable

15

SCREW

1AE-14565-00-00

Unavailable

16

PIN, FLOAT

353-14186-00-00

Unavailable

17

SCREW

1FN-14565-00-00

Unavailable

18

.. FLOAT

1WG-14985-00-00

Unavailable

19

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

20

O-RING

1AE-14227-00-00

Unavailable

21

.. HOLDER

2LH-14261-00-00

Unavailable

22

GASKET

1AE-14237-00-00

Unavailable

23

O-RING

1FN-14147-00-00

Unavailable

24

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

25

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

26

SCREW, PAN HEAD

98517-04016-00

Unavailable

27

PLUG, DRAIN

12R-14191-00-00

Unavailable

28

CLIP

812-14137-00-00

Unavailable

29

JET,MAIN(122.5)

830-1423A-75-00

Unavailable

30

JET, PILOT (# 15)

3H1-14142-15-00

Unavailable

31

CAP

3F9-14118-00-00

Unavailable

32

. STARTER LEVR SET, 1

1FN-1490L-00-00

Unavailable

33

STOP SCREW SET

1AE-1490K-00-00

Unavailable

34

. NIPPLE

1HX-14251-00-00

Unavailable

35

. NIPPLE

16H-14251-00-00

Unavailable

36

O-RING

36Y-14147-00-00

Unavailable

37

. PIPE

1AE-14197-00-00

Unavailable

38

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

39

PIPE

2KT-14197-01-00

Unavailable

40

. RING

1FN-14918-00-00

Unavailable
