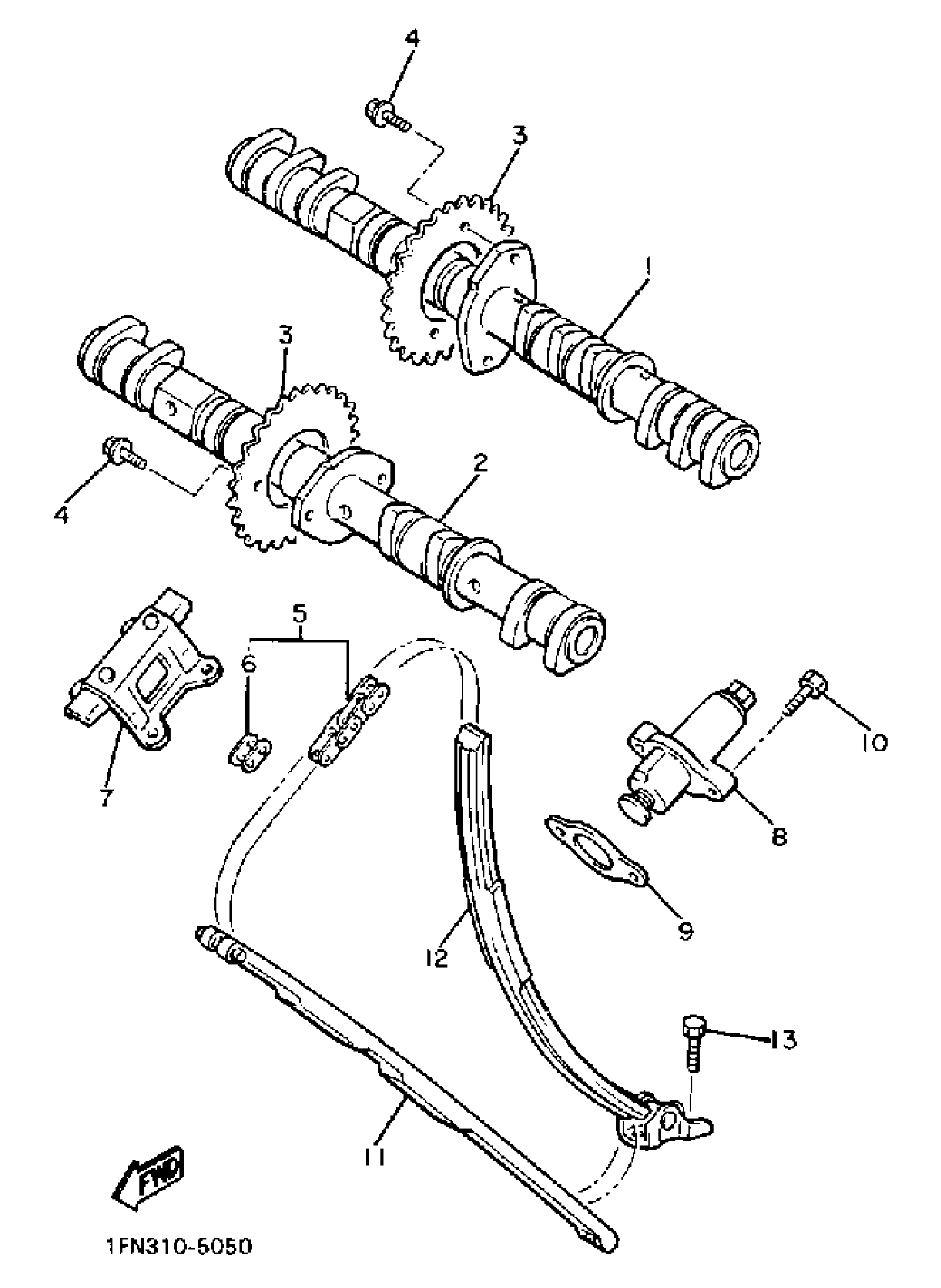

Yamaha FZ750UC (FZ750 CA) 1988 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

1AE-12171-00-00

Unavailable

CAMSHAFT 2

1UF-12181-00-00

Unavailable

SPROCKET, CAM CHAIN (4G0-12176-00) (32T)

4G0-12176-01-00

Unavailable

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN

9Y581-01109-00

Unavailable

PIN, JOINT

4SV-11498-00-00

$7.99

GUIDE, STOPPER 2

2GH-12241-00-00

Unavailable

TENS.ASSEMBLY, CAMCHAIN

99999-01840-00

Unavailable

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT, SMALL FLANGE

95027-06025-00

$4.16

DAMPER, CHAIN 1

1AE-12251-00-00

Unavailable

DAMPER, CHAIN 2

2GH-12252-00-00

Unavailable

BOLT(1FN)

90109-065A8-00

Unavailable
