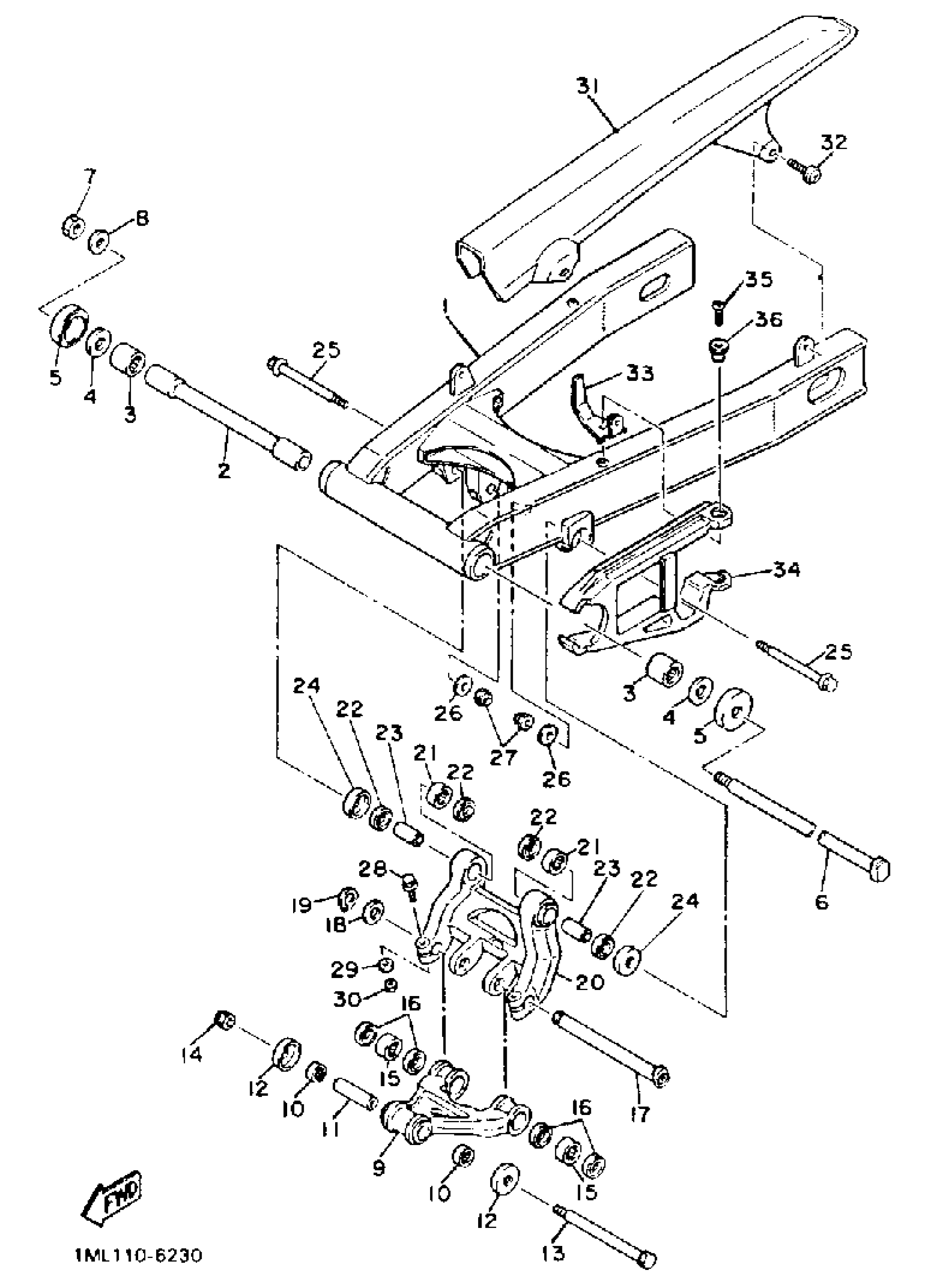

Yamaha FZ750SC (FZ750 CA) 1986 SWING ARM Diagram

#

Description
Price

1

REAR ARM

1AE-22110-00-00

Unavailable

2

BUSH

36Y-22184-00-00

Unavailable

3

BEARING, CYLINDRICAL(36Y)

93317-42550-00

Unavailable

4

SHIM

36Y-22127-00-00

Unavailable

5

COVER, THRUST 1

36Y-22128-00-00

Unavailable

6

SHAFT, PIVOT

1AE-22141-01-00

Unavailable

7

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

8

WASHER, PLATE(3FC)

90201-142M6-00

$9.49

9

UNAVAILABLE IN PRICE BOOK

[1A-E2217-A0-00

Unavailable

10

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$36.99

11

COLLAR(1FN)

90387-123M4-00

Unavailable

12

COVER, THRUST 2

36Y-22129-00-00

Unavailable

13

BOLT

90101-12605-00

Unavailable

14

NUT, U (4PM)

95617-12100-00

$4.16

15

BEARING, CYLINDRICAL(1FN)

93315-31841-00

Unavailable

16

OIL SEAL(1FN)

93110-18017-00

Unavailable

17

SHAFT 1

1AE-22121-00-00

Unavailable

18

WASHER, PLATE(36Y)

90201-187H4-00

Unavailable

19

CIRCLIP(13H)

99009-18400-00

Unavailable

20

ARM 1

1AE-2217M-00-00

Unavailable

21

BEARING, CYLINDRICAL(3MH)

93315-32057-00

Unavailable

22

OIL SEAL

93109-20076-00

Unavailable

23

COLLAR(1FN)

90387-123M3-00

Unavailable

24

COVER, THRUST 2

1AE-22129-00-00

Unavailable

25

BOLT, WASHER BASED(36Y)

90105-12309-00

Unavailable

26

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

27

NUT, U (4PM)

95617-12100-00

$4.16

28

BOLT, FLANGE

95817-06045-00

Unavailable

29

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

30

NUT, SELF-LOCKING

95617-06100-00

Unavailable

31

CASE, CHAIN

29L-22311-01-00

Unavailable

32

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

33

STAY, CHAIN CASE 1

1AE-22321-00-00

Unavailable

34

SEAL, GUARD

(1LJ-22151-00-00)

Unavailable

35

SCREW, BINDING

98907-06025-00

Unavailable

36

C0LLAR

90387-062M9-00

Unavailable
