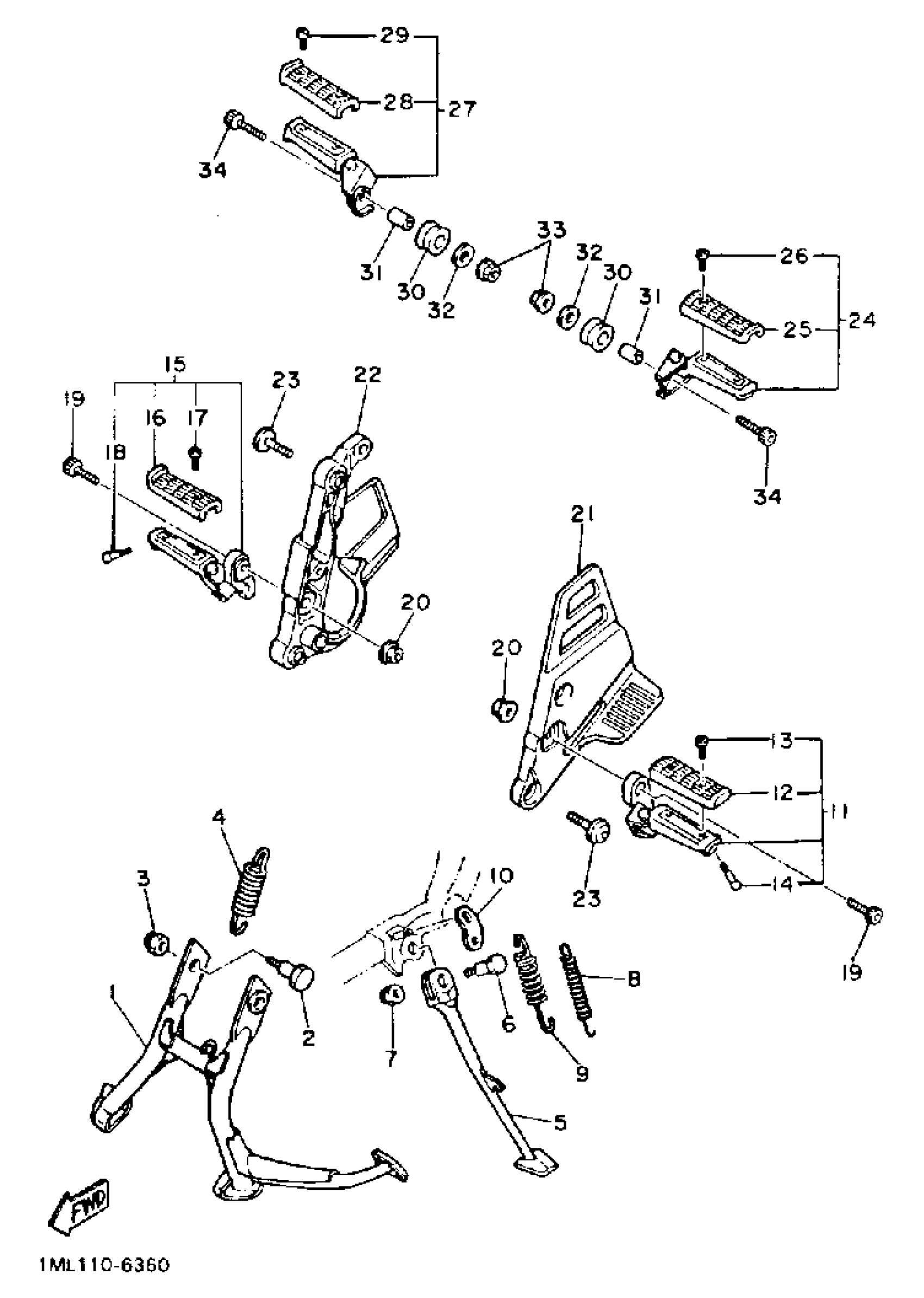

Yamaha FZ750SC (FZ750 CA) 1986 STAND FOOTREST Diagram

#

Description
Price

1

STAND, MAIN (1AE-27111-00-R4)

1AE-27111-01-R4

Unavailable

2

BOLT

90109-100E6-00

Unavailable

3

NUT, SELF LOCKING (3G1)

90185-10091-00

$9.49

4

SPRING, TENSION

90506-45385-00

Unavailable

5

STAND, SIDE

4AS-27311-01-00

Unavailable

6

BOLT

90109-106A8-00

Unavailable

7

NUT, U

90185-10037-00

$9.49

8

SPRING, TENSION (4K0)

90506-18224-00

$5.60

9

SPRING, TENSION (4K0)

90506-26225-00

$11.49

10

LINK, SIDE STAND

3Y3-27315-00-00

Unavailable

11

FRT FOOTREST ASSEMBLY L

1AE-27410-00-00

Unavailable

12

COVER, FOOTREST

2GH-27413-00-00

$45.99

13

SCREW, PAN HEAD

98507-05014-00

$8.49

14

BOLT

90109-08224-00

$2.55

15

FRT FOOTREST ASSEMBLY R

1AE-27420-00-00

Unavailable

16

COVER, FOOTREST

2GH-27413-00-00

$45.99

17

SCREW, PAN HEAD

98507-05014-00

$8.49

18

BOLT

90109-08224-00

$2.55

19

BOLT, SOCKET

91317-10030-00

Unavailable

20

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

21

BRACKET 2

1AE-W2748-00-00

Unavailable

22

BRACKET 3

1AE-W2749-00-00

Unavailable

23

SCREW(1AE)

90149-08222-00

Unavailable

24

RR FOOTREST ASSEMBLY 1

1AE-27430-00-00

Unavailable

25

COVER, FOOTREST

2GH-27413-00-00

$45.99

26

SCREW, PAN HEAD

98507-05014-00

$8.49

27

RR FOOTREST ASSEMBLY 2

1AE-27440-00-00

Unavailable

28

COVER, FOOTREST

2GH-27413-00-00

$45.99

29

SCREW, PAN HEAD

98507-05014-00

$8.49

30

DAMPER, MUFFLER BRACKET

2H7-27414-00-00

Unavailable

31

COLLAR (2H7)

90387-10636-00

Unavailable

32

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

33

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

34

BOLT, SOCKET

91317-10050-00

Unavailable
