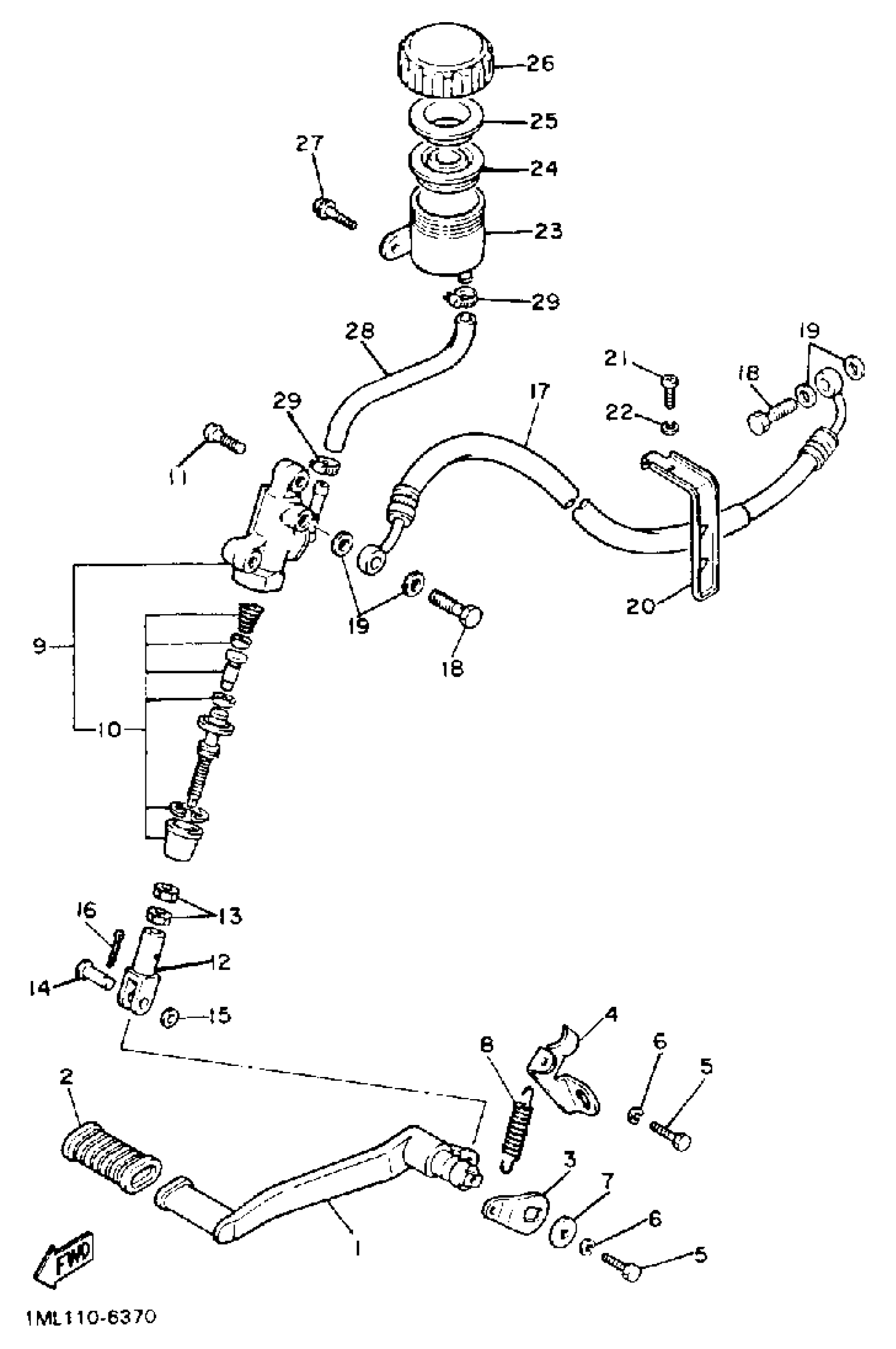

Yamaha FZ750SC (FZ750 CA) 1986 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

1AE-27211-00-00

Unavailable

2

COVER, SHIFT PEDAL

22N-18113-00-00

$7.99

3

LEVER, BRAKE PEDAL

1AE-27252-00-00

$6.99

4

HOOK

1AE-27254-00-00

Unavailable

5

BOLT (661)

97013-06012-00

$5.60

6

WASHER, SPRING

92995-06100-00

Unavailable

7

WASHER, PLATE (8K2)

90201-06778-00

$4.46

8

SPRING, TENSION

90506-14388-00

Unavailable

9

MSTR CYLINDER ASSEMBLY

1AE-25850-51-00

Unavailable

10

CYLINDER KIT, MASTER

2YK-W0042-50-00

$99.99

11

BOLT, BUTTON

92017-08020-00

$7.49

12

JOINT

31A-27222-00-00

$43.99

13

NUT(6L2)

95333-08600-00

$2.49

14

PIN W/HOLE 307181180000

90240-08013-00

$8.49

15

WASHER, PLATE 1562722600

90201-08083-00

$9.49

16

PIN, COTTER

91490-20025-00

Unavailable

17

HOSE,BRAKE 1

99999-02381-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

HOLDER, BRKE HOSE

(1AE-25875-01-00)

Unavailable

21

SCREW PAN HEAD

98580-06020-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

TANK, RESERVOIR

31A-25894-01-00

Unavailable

24

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

25

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

26

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

27

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

28

HOSE, RESERVOIR

1AE-25895-00-00

Unavailable

29

CLAMP, HOSE

90460-12268-00

Unavailable
