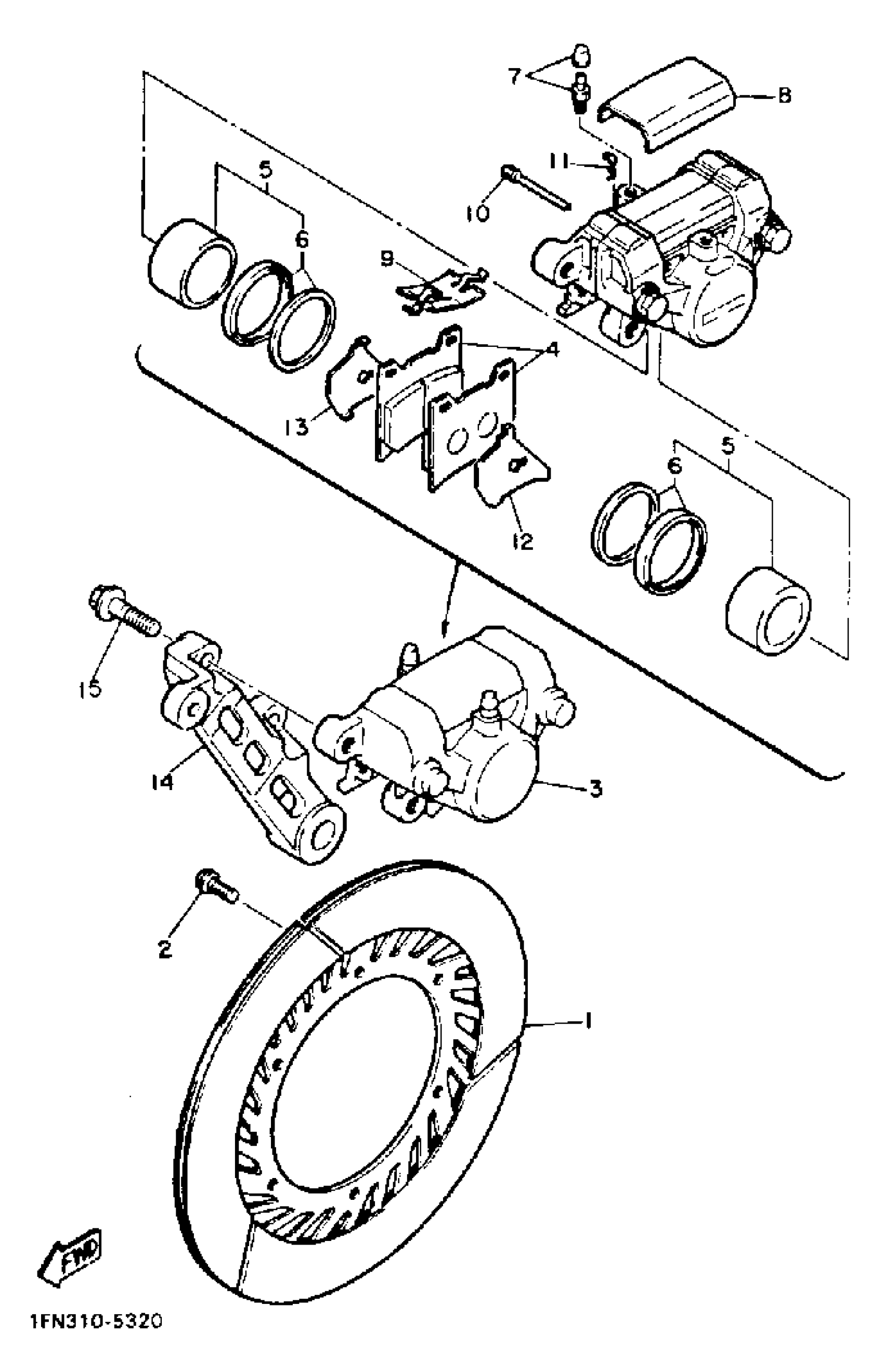

Yamaha FZ750SC (FZ750 CA) 1986 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC,BRAKE

31A-25831-51-00

Unavailable

2

BOLT

90109-084F7-00

$5.50

3

CALIPER ASSEMBLY

1FM-25810-50-00

Unavailable

4

BRAKE PAD KIT 2

1FK-W0046-01-00

$46.93

5

PISTON ASSY, CALIPER

31A-W0057-00-00

$114.10

6

PISTON SEAL KIT

31A-W0047-00-00

$46.67

7

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

8

COVER, DUST

41Y-25836-01-00

Unavailable

9

SPRING

26H-25919-00-00

Unavailable

10

PIN, PAD

3HE-25924-00-00

Unavailable

11

CLIP, PAD PIN

3GM-25925-00-00

$9.15

12

SHIM, CALIPER

1FK-25827-01-00

$14.12

13

SHIM, CALIPER

1FK-25828-01-00

$12.39

14

BRACKET, CALIPER

1AE-25819-52-00

Unavailable

15

BOLT, WASHER BASED(1AR)

90105-10634-00

$6.15
