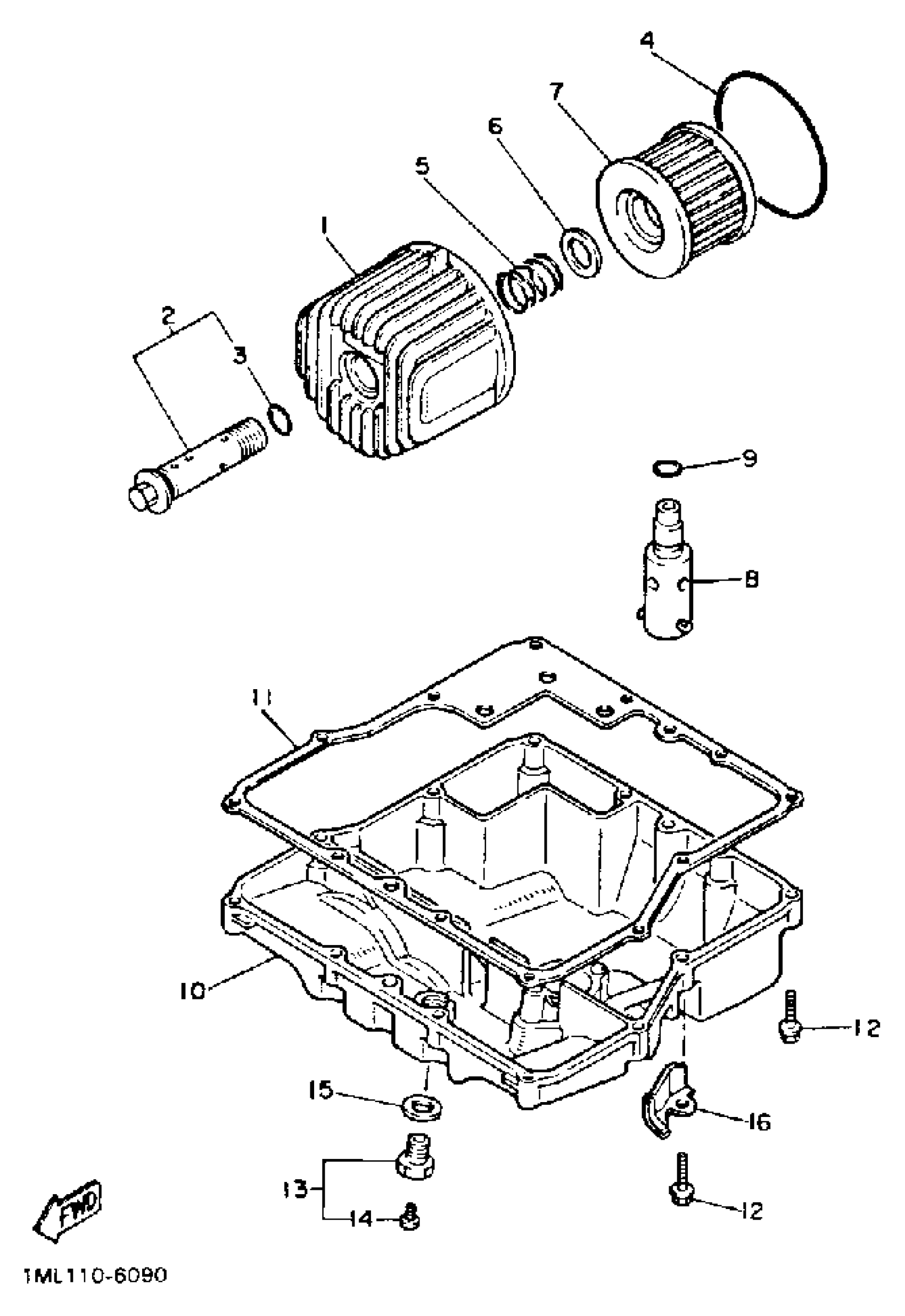

Yamaha FZ750SC (FZ750 CA) 1986 OIL FILTER Diagram

#

Description
Price

1

COVER, OIL ELEMENTELEMENT

1AE-13447-00-00

Unavailable

2

BY-PASS VALVE ASSY

36Y-13340-00-00

Unavailable

3

O-RING (26H)

93210-16629-00

$4.65

4

O-RING(1KF)

93210-87723-00

$10.17

5

SPRING, COMPRESSION (1L9)

90501-20422-00

$6.34

6

WASHER, PLATE (1L9)

90201-21608-00

$5.76

7

ELEMENT, OIL CLEANER

36Y-13441-00-00

$7.03

8

RELIEF VALVE ASSY

36Y-13490-00-00

Unavailable

9

O-RING (22U)

93210-15566-00

$5.39

10

COVER, STRAINER

3NE-13417-00-00

Unavailable

11

GASKET, STRAINER COVER

4AM-13414-00-00

Unavailable

12

BOLT, SMALL FLANGE

95027-06030-00

$3.40

13

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.47

14

SCREW, BIND(2TV)

98980-06008-00

$0.58

15

GASKET

214-11198-01-00

$1.93

16

UNAVAILABLE IN PRICE BOOK

90-46208-15-70

Unavailable
