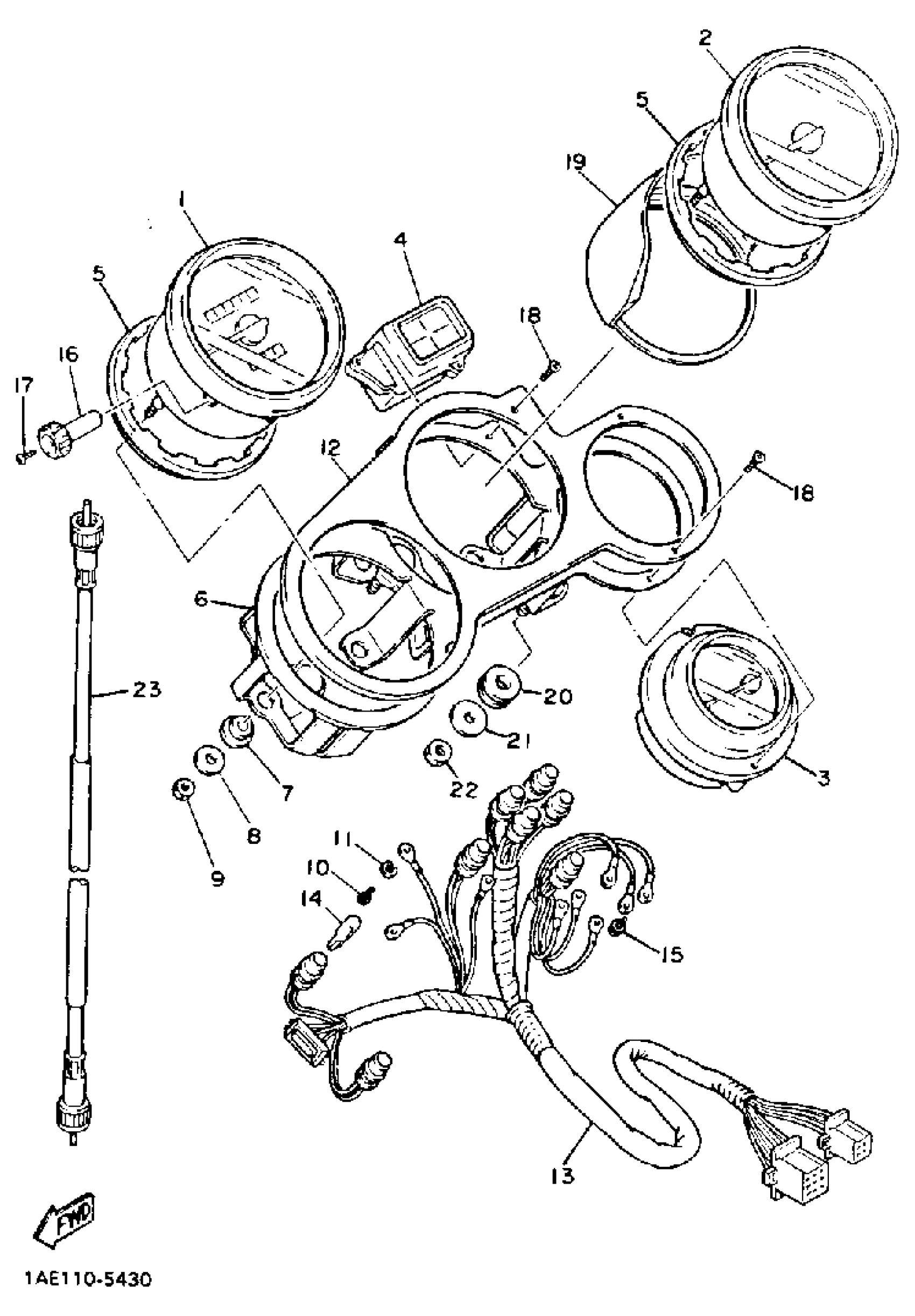

Yamaha FZ750SC (FZ750 CA) 1986 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY (2EF-83570-A0)

1FN-83570-G0-00

Unavailable

2

TACHOMETER ASY

1FM-83540-00-00

Unavailable

3

WATER TEMP METER

1AE-83590-00-00

Unavailable

4

PILOT LIGHT

2KK-83530-00-00

Unavailable

5

DAMPER

1AE-83513-00-00

$25.99

6

BRACKET, METER

1AE-83519-00-00

Unavailable

7

DAMPER, METER COVER FITTING

584-83523-00-00

Unavailable

8

WASHER PLATE 803835240000

90201-05032-00

Unavailable

9

NUT, HEXAGON

95317-05600-00

$2.34

10

SCREW, PAN HEAD(3KS)

98507-03012-00

Unavailable

11

WASHER, SPRING

92990-03100-00

$8.49

12

PLATE, FITTING

1AE-83514-00-00

Unavailable

13

SOCKET CORD ASSEMBLY

1AE-83520-00-00

Unavailable

14

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

15

SCREW, WITH WASHER(36Y)

90159-03102-00

Unavailable

16

KNOB, TRIP METER

1AE-83578-00-00

Unavailable

17

SCREW, PAN HEAD (11H)

90157-02031-00

Unavailable

18

SCREW, TAPPING

1AE-83616-00-00

Unavailable

19

COVER, METER

1AE-83559-00-00

Unavailable

20

GROMET (3X3)

90480-14229-00

Unavailable

21

WASHER, PLATE

90201-06380-00

Unavailable

22

NUT(6TA)

95317-06600-00

Unavailable

23

SPEEDOMETER CABLE ASSY

3VP-83550-02-00

Unavailable
