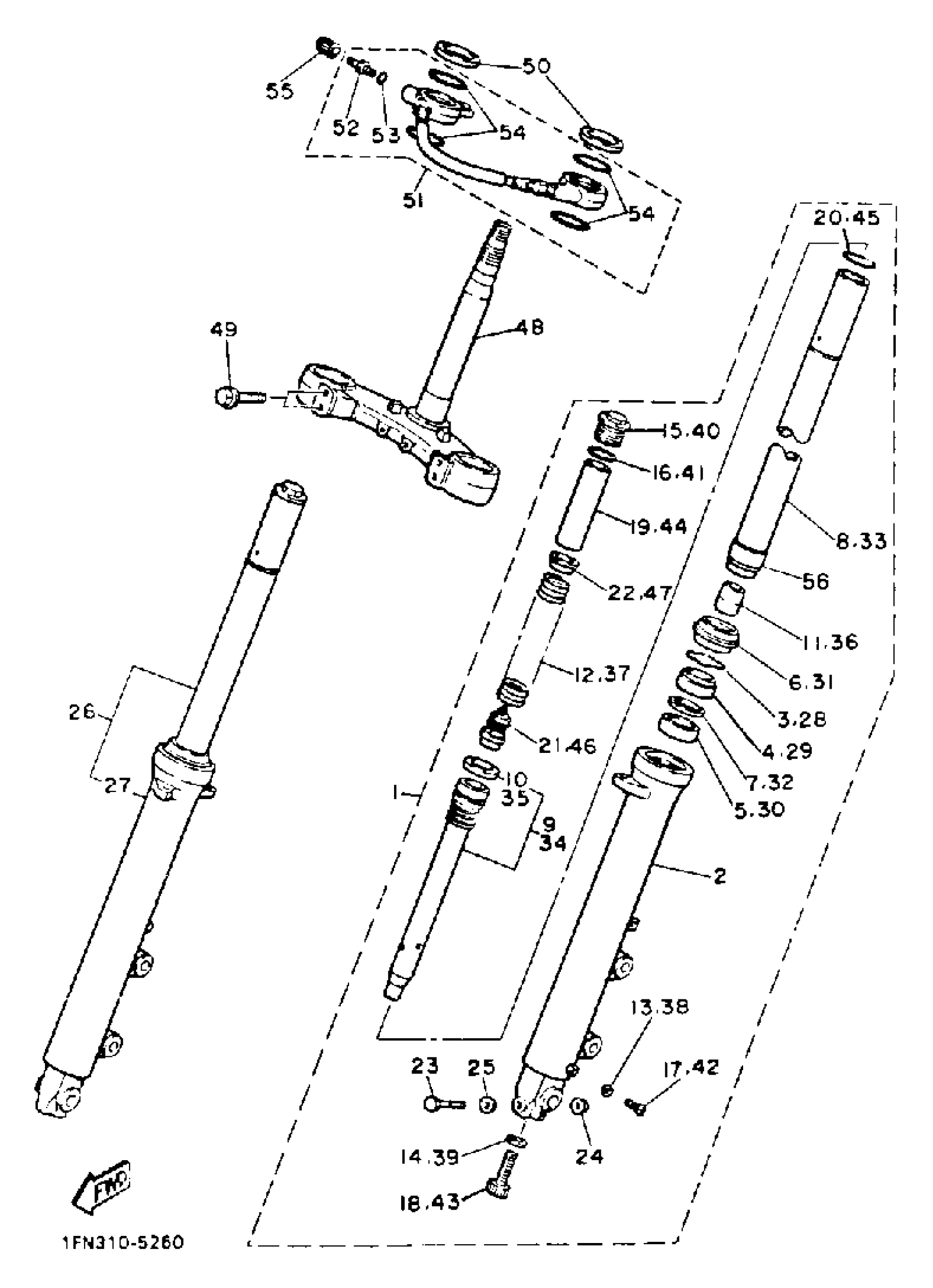

Yamaha FZ750SC (FZ750 CA) 1986 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

1AE-23102-00-00

Unavailable

2

. TUBE, OUTER 1

1AE-23126-00-00

Unavailable

3

CLIP, OIL SEAL

26H-23156-00-00

$7.99

4

OIL SEAL

1AE-23145-00-00

$24.99

5

METAL, SLIDE 1

3KS-23125-00-00

Unavailable

6

SEAL, DUST

1AE-23144-00-00

$14.49

7

WASHER, SPRING UPPER

1AE-23149-00-00

$6.99

8

. INNER TUBE 1

1AE-23110-00-00

Unavailable

9

. CYLINDER, FRTFRK

2KT-23170-00-00

Unavailable

10

.. RING, PISTON

1AE-23157-00-00

Unavailable

11

. UNAVAILABLE IN PRICE BOOK (2K8-23173-L0)

3R4-12173-L0-00

Unavailable

12

. SPRING, FRONT FORK

1FM-23141-00-00

Unavailable

13

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

14

GASKET

2K8-23158-L0-00

$15.49

15

. BOLT, CAP

3EN-23111-00-00

Unavailable

16

O-RING

1W4-23114-L0-00

Unavailable

17

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

18

BOLT

3R4-23181-L0-00

Unavailable

19

. SPACER

49V-23118-00-00

Unavailable

20

. RING, SNAP

42H-23153-00-00

Unavailable

21

. TRAVEL CONTROL VLV

1AE-23160-00-00

Unavailable

22

. SEAT, SPRING UPPER

1FK-23142-00-00

Unavailable

23

BOLT, HEXAGON

97017-08060-00

Unavailable

24

NUT, U

95617-08100-00

Unavailable

25

WASHER(6TA)

92907-08600-00

Unavailable

26

FRONT FORK ASSEMBLY R

1AE-23103-00-00

Unavailable

27

. TUBE, OUTER 2

1AE-23136-00-00

Unavailable

28

CLIP, OIL SEAL

26H-23156-00-00

$7.99

29

OIL SEAL

1AE-23145-00-00

$24.99

30

METAL, SLIDE 1

3KS-23125-00-00

Unavailable

31

SEAL, DUST

1AE-23144-00-00

$14.49

32

WASHER, SPRING UPPER

1AE-23149-00-00

$6.99

33

. INNER TUBE 1

1AE-23110-00-00

Unavailable

34

. CYLINDER, FRTFRK

2KT-23170-00-00

Unavailable

35

.. RING, PISTON

1AE-23157-00-00

Unavailable

36

SPINDLE, TAPER

(3R4-23173-L0-00)

Unavailable

37

. SPRING, FRONT FORK

1FM-23141-00-00

Unavailable

38

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

39

GASKET

2K8-23158-L0-00

$15.49

40

. BOLT, CAP

3EN-23111-00-00

Unavailable

41

O-RING

1W4-23114-L0-00

Unavailable

42

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

43

BOLT

3R4-23181-L0-00

Unavailable

44

. SPACER

49V-23118-00-00

Unavailable

45

. RING, SNAP

42H-23153-00-00

Unavailable

46

. TRAVEL CONTROL VLV

1AE-23160-00-00

Unavailable

47

. SEAT, SPRING UPPER

1FK-23142-00-00

Unavailable

48

UNDER BRACKET

1AE-23340-00-00

Unavailable

49

BOLT, FLANGE

95814-08040-00

Unavailable

50

WASHER

2H7-23163-00-00

Unavailable

51

HOSE ASSEMBLY

1AE-2318J-00-00

Unavailable

52

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

53

O-RING

3J2-23147-00-00

Unavailable

54

. O-RING

1AE-23188-00-00

Unavailable

55

.. CAP, AIR VALVE

24M-23184-00-00

Unavailable

56

PISTON, FRONT FORK

1AE-00000-00-00

Unavailable
