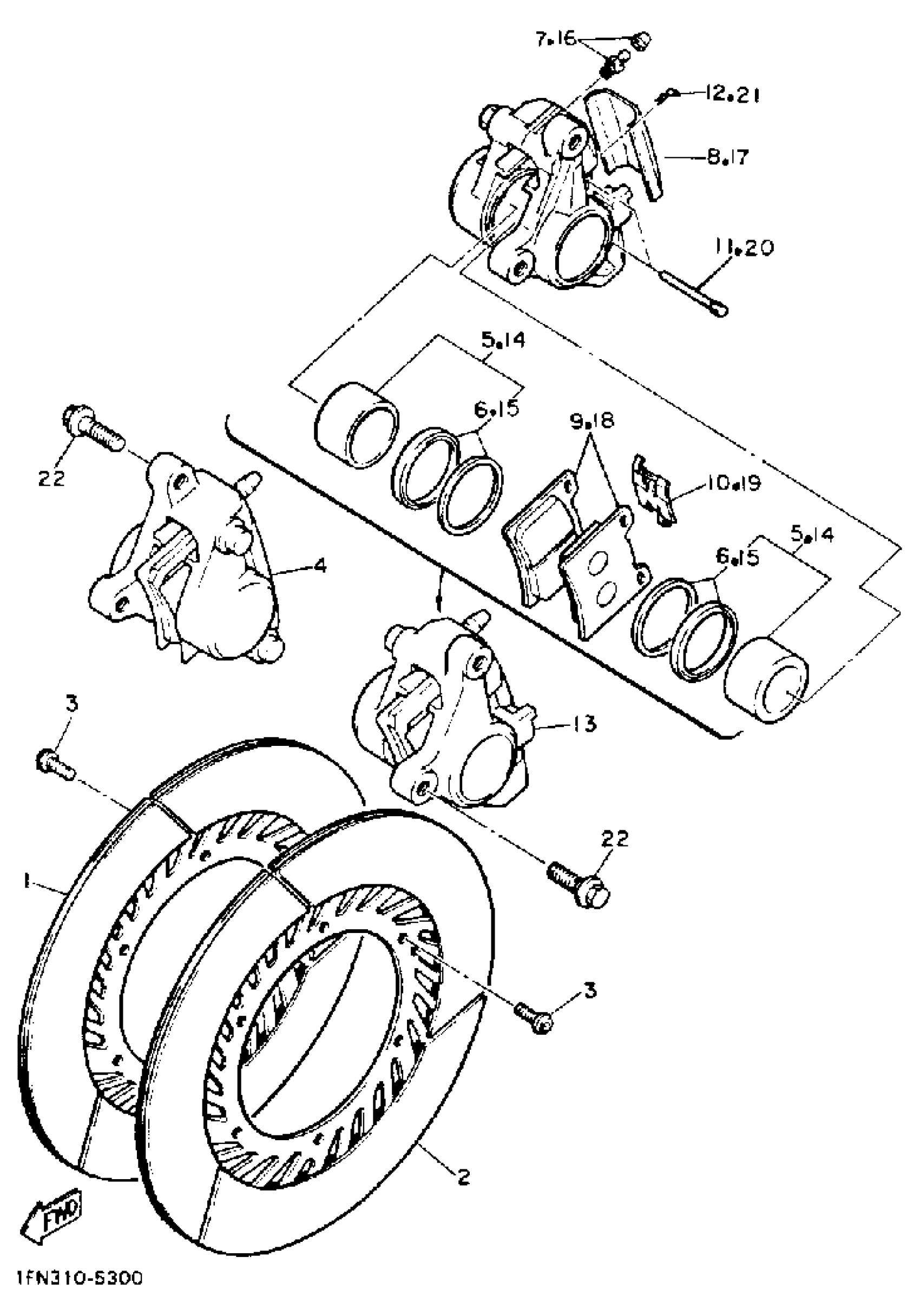

Yamaha FZ750SC (FZ750 CA) 1986 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (31A-25831-00)

31A-25831-01-00

Unavailable

2

DISC, BRAKE (31A-25831-10)

31A-25831-11-00

Unavailable

3

BOLT

90109-084F7-00

$9.49

4

CALIPER ASSEMBLY (R) (1FM-25810-00)

1FM-25810-01-00

Unavailable

5

PISTON ASSY, CALIPER

1FK-W0057-00-00

$226.99

6

CALIPER SEAL KIT

1FK-W0047-00-00

Unavailable

7

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

8

COVER, DUST

41Y-25836-01-00

Unavailable

9

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

10

SPRING

26H-25919-00-00

Unavailable

11

PIN, PAD

3HE-25924-00-00

Unavailable

12

CLIP, PAD PIN

3GM-25925-00-00

$11.99

13

CALIPER ASSEMBLY (L) (1FM-25810-10)

1FM-25810-11-00

Unavailable

14

PISTON ASSY, CALIPER

1FK-W0057-00-00

$226.99

15

CALIPER SEAL KIT

1FK-W0047-00-00

Unavailable

16

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

17

COVER, DUST

41Y-25836-01-00

Unavailable

18

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

19

SPRING

26H-25919-00-00

Unavailable

20

PIN, PAD

3HE-25924-00-00

Unavailable

21

CLIP, PAD PIN

3GM-25925-00-00

$11.99

22

BOLT, WASHER BASED(1AR)

90105-10634-00

Unavailable
