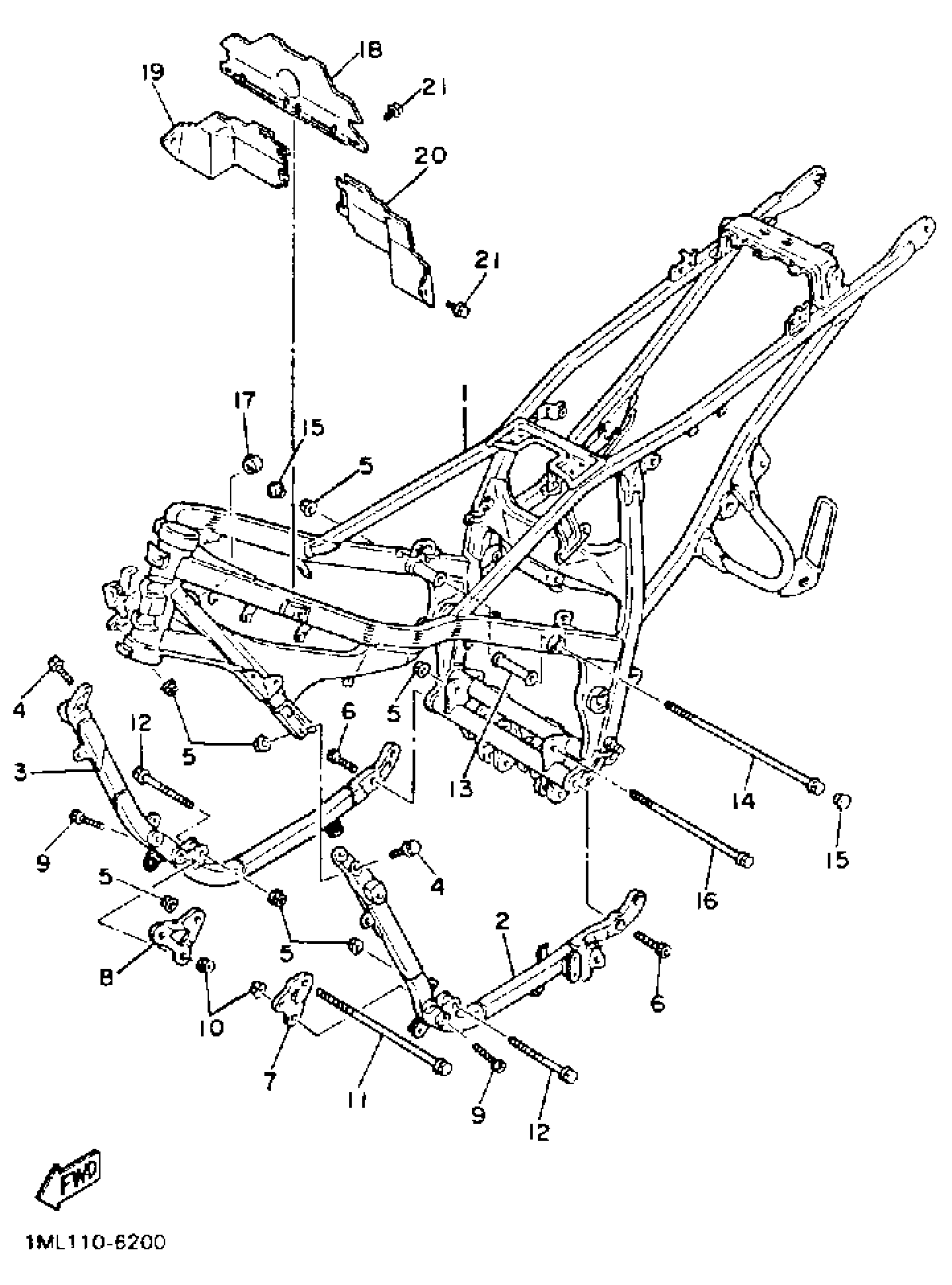

Yamaha FZ750SC (FZ750 CA) 1986 FRAME Diagram

#

Description
Price

1

FRAME

1LJ-21110-00-MA

Unavailable

2

TUBE, DOWN

1ML-21140-00-MA

Unavailable

3

DOWN TUBE COMP.2

1ML-21150-00-MA

Unavailable

4

BOLT, FLANGE

95814-10040-00

$4.72

5

NUT(4KG)

90179-10658-00

$9.49

6

BOLT,SOCKET

91314-08020-00

$8.49

7

STAY, ENGINE 2

1AE-21315-00-00

Unavailable

8

STAY, ENGINE 3

1AE-21316-00-00

Unavailable

9

BOLT, SOCKET

91314-08050-00

$7.49

10

NUT, FLANGE

95704-08500-00

$8.49

11

BOLT, WASHER BASED(1AE)

90105-10401-00

Unavailable

12

BOLT, WASHER BASED(4HM)

90105-10737-00

$26.99

13

SPACER

1AE-21459-00-00

Unavailable

14

BOLT, ENGINE MOUNTING

90105-10056-00

Unavailable

15

PLUG(1FN)

90338-23172-00

$12.49

16

BOLT

90105-10042-00

Unavailable

17

GROMMET (509)

90480-18171-00

Unavailable

18

COVER 1

1AE-1246A-00-00

Unavailable

19

COVER 2

2KW-1246E-00-00

Unavailable

20

COVER 3

2KW-1246F-00-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

Unavailable
