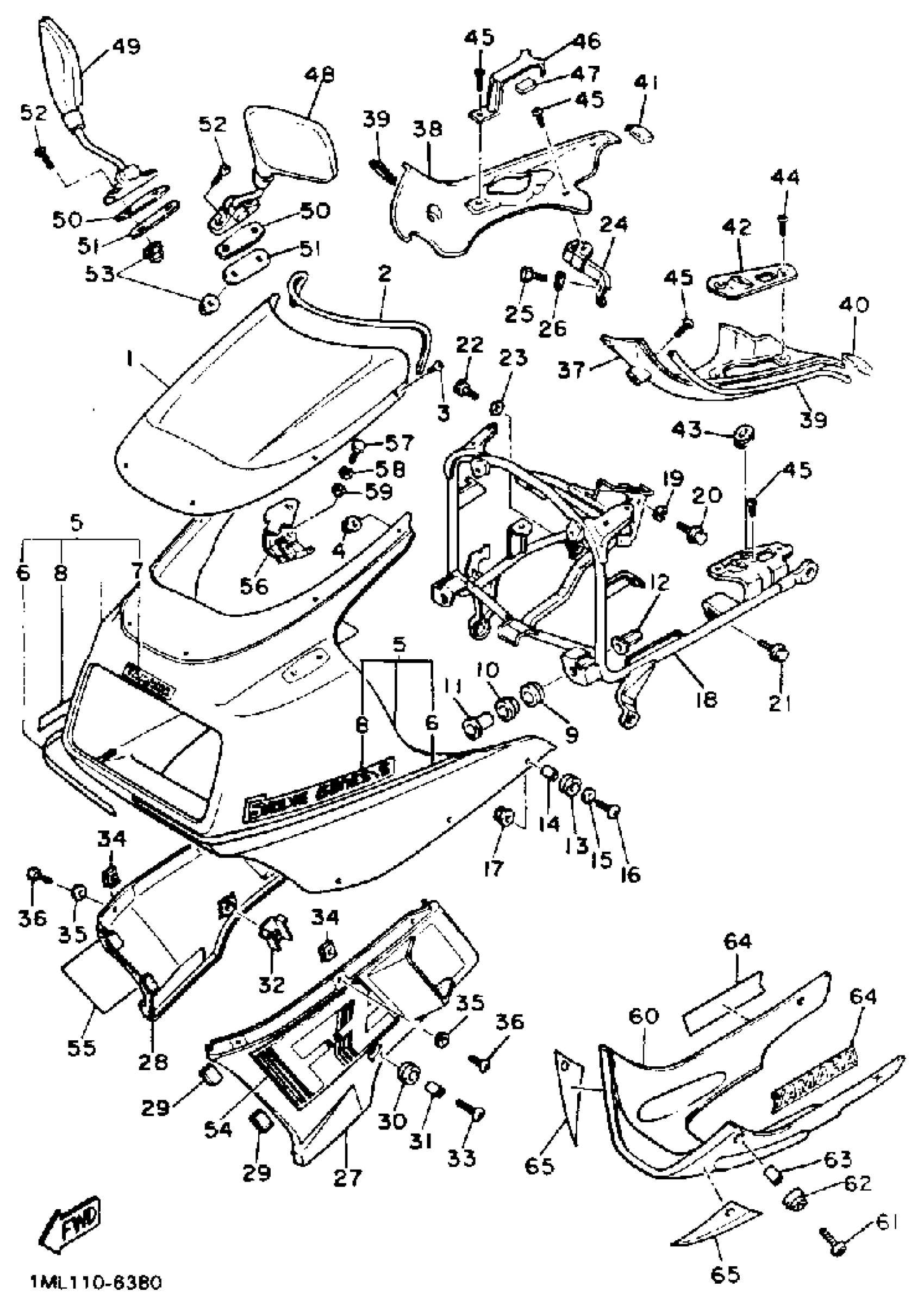

Yamaha FZ750SC (FZ750 CA) 1986 FAIRING Diagram

#

Description
Price

1

WINDSHIELD

1AE-28381-00-00

Unavailable

2

MOLE 4

36Y-28348-00-00

$31.99

3

SCREW, ROUND HEAD(46X)

90150-05020-00

$9.49

4

NUT, FLANGE(3GM)

95707-05500-00

$8.49

5

BODY, FRONT UPPER 1

1FM-Y283G-00-1X

Unavailable

6

. GRPHC SET, COWLING

1FM-28390-00-00

Unavailable

7

EMBLEM, YAMAHA

99241-00100-00

$4.19

8

. EMBLEM 1

1FM-2839H-00-00

Unavailable

9

GROMET (3X3)

90480-14229-00

$8.49

10

GROMMET(1FN)

90480-14429-00

$7.49

11

COLLAR (29U)

90387-066H4-00

$8.49

12

NUT

1AE-28363-00-00

Unavailable

13

GROMMET (1E5)

90480-13163-00

$7.49

14

COLLAR (11G)

90387-061F9-00

$8.49

15

WASHER PLATE 122217250000

90202-07015-00

$8.49

16

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

Unavailable

17

NUT (1AE)

90179-06500-00

Unavailable

18

STAY 1

1AE-28356-00-00

Unavailable

19

WASHER(JN5)

92907-08100-00

Unavailable

20

BOLT, SMALL FLANGE

95027-08016-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

Unavailable

22

BOLT,SOCKET

91317-06012-00

Unavailable

23

WASHER(6TA)

92907-06200-00

Unavailable

24

STAY 2

1AE-28357-00-00

Unavailable

25

BOLT(3JP)

97017-06010-00

Unavailable

26

WASHER, SPRING

92907-06100-00

Unavailable

27

PANEL 1

1AE-2835U-00-GE

Unavailable

28

PANEL 2

1AE-2835V-00-GE

Unavailable

29

DAMPER

22F-2139X-00-00

Unavailable

30

GROMMET

90480-13014-00

Unavailable

31

COLLAR (2H1)

90387-06638-00

Unavailable

32

NUT

1AE-28362-00-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

34

NUT, SPRING

90183-051A0-00

Unavailable

35

WASHER PLATE 626441880000

90202-06007-00

Unavailable

36

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

37

PANEL, INNER 1

1AE-2836K-00-00

Unavailable

38

PANEL, INNER 2

1AE-2836L-00-00

Unavailable

39

MOLD 2

1AE-28346-00-00

Unavailable

40

MOLD 3

1AE-28347-00-00

Unavailable

41

MOLD 4

1AE-28348-00-00

Unavailable

42

COVER

1AE-28365-00-00

Unavailable

43

GROMMET

90480-01430-00

Unavailable

44

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

45

SCREW, BINDING (10V)

90154-05013-00

Unavailable

46

PROTECTOR 1

1AE-2834V-00-00

Unavailable

47

DAMPER 5

1AE-2837J-00-00

Unavailable

48

MIRROR ASSEMBLY

1AE-26280-00-00

Unavailable

49

MIRROR ASSEMBLY

1AE-26290-00-00

Unavailable

50

PLATE, MIRROR FITTING 1

1AE-26298-00-00

Unavailable

51

PLATE, MIRROR FITTING 2

3CV-26299-00-00

Unavailable

52

SCREW, FLAT

98707-06025-00

Unavailable

53

NUT1

1AE-26294-00-00

Unavailable

54

EMBLEM

1AE-28328-30-00

Unavailable

55

EMBLEM

1AE-28368-30-00

Unavailable

56

DUCT ASSEMBLY

1AE-2832E-00-00

Unavailable

57

BOLT, HEXAGON

97017-06016-00

Unavailable

58

WASHER, SPRING

92907-06100-00

Unavailable

59

WASHER(6TA)

92907-06600-00

Unavailable

60

COVER, LOWER

1ML-W2839-00-8E

Unavailable

61

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

62

GROMMET

90480-13014-00

Unavailable

63

COLLAR(51L)

90387-067K6-00

Unavailable

64

EMBLEM

1ML-28315-00-00

Unavailable

65

GRAPHIC SET, LWRCVRLOWER COVER

1ML-28301-00-00

Unavailable
