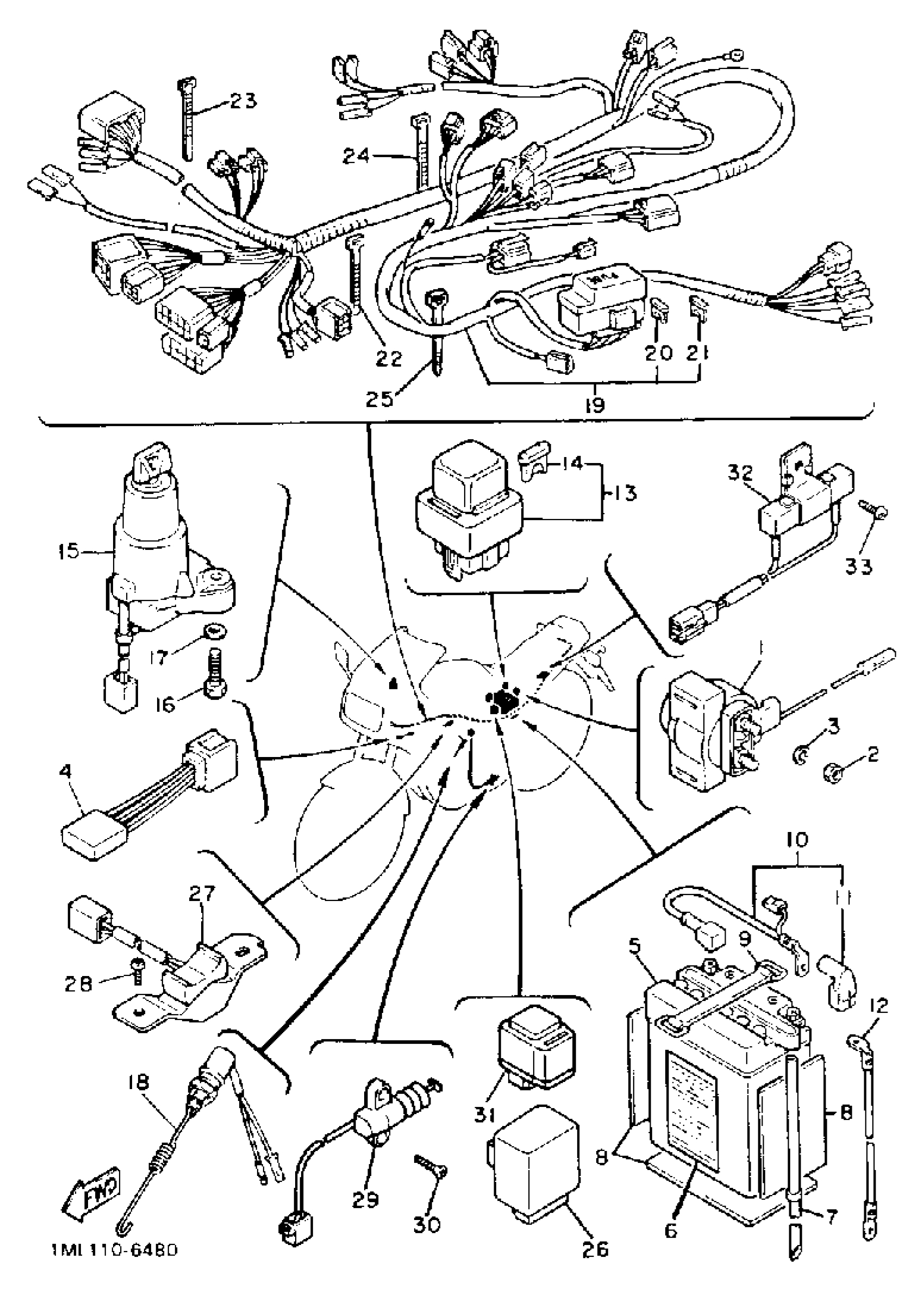

Yamaha FZ750SC (FZ750 CA) 1986 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

2

NUT(650)

95380-06700-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

RECTIFIER 2

4U8-81980-M0-00

Unavailable

5

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

6

LABEL, BATTERY

40A-82141-G0-00

Unavailable

7

HOSE (L1500)

90445-084J0-00

$18.99

8

SEAT, BATTERY

5Y1-82122-00-00

$7.99

9

BAND, BATTERY

2T4-82131-00-00

$8.99

10

WIRE, PLUS LEAD

1TX-82115-00-00

Unavailable

11

. COVER, LEAD WIRE

4X7-82119-00-00

Unavailable

12

WIRE, MINUS LEAD

1UF-82116-00-00

Unavailable

13

FUSE HOLDER ASSY

1AE-82150-00-00

Unavailable

14

FUSE (12V 30A)

1AE-82151-00-00

$7.99

15

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

STOP SWITCH ASSEMBLY

33M-82530-02-00

Unavailable

19

WIRE HARNESS ASSEMBLY

1LJ-82590-00-00

Unavailable

20

FUSE (10A)

42X-82151-00-00

Unavailable

21

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

22

BAND, SWITCH CORD

437-83936-01-00

Unavailable

23

BAND, SWITCH CORD

437-83936-11-00

Unavailable

24

BAND

341-26397-01-00

Unavailable

25

BAND

1UA-82591-00-00

Unavailable

26

CONTROL UNIT ASSEMBLY

1AE-85740-01-00

Unavailable

27

SWITCH

3TJ-83964-10-00

Unavailable

28

SCREW, BINDING (10V)

90154-05013-00

Unavailable

29

SWITCH,SIDE STAND

1AA-82566-01-00

Unavailable

30

SCREW, FLAT

98707-05014-00

Unavailable

31

RELAY ASSY

4U8-81950-03-00

Unavailable

32

RESISTOR ASSEMBLY

3KS-85370-00-00

Unavailable

33

BOLT, FLANGE

95817-06012-00

Unavailable
