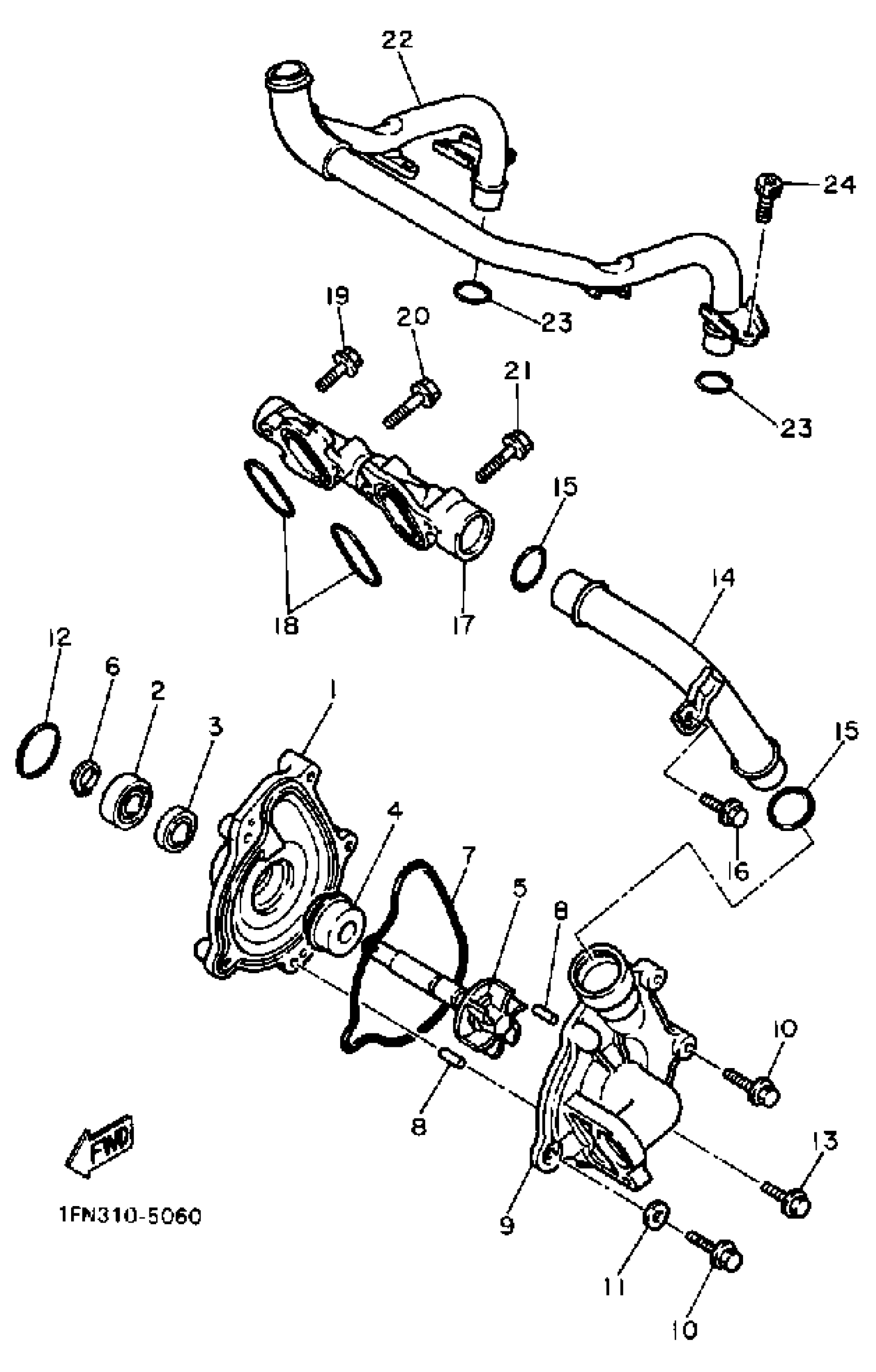

Yamaha FZ750N (FZ750N) 1985 WATER PUMP Diagram

HOUSING, WATER PUMP

1AE-12421-00-00

Unavailable

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

OIL SEAL

93101-12173-00

$13.49

SEAL, MECHANICAL

11H-12438-10-00

$62.99

IMPELLER SHAFT ASSY

1UF-12450-00-00

Unavailable

CIRCLIP(10Y)

99009-12400-00

$3.59

O-RING

1AE-12439-00-00

$28.99

PIN,DOWEL (603)

93604-10011-00

$8.49

COVER,HOUSING

1AE-12422-09-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

$4.16

GASKET 256113960000

90430-06014-00

Unavailable

O-RING (626)

93210-33133-00

$2.92

BOLT, SMALL FLANGE

95027-06050-00

$2.55

PIPE 1

1AE-12481-01-00

Unavailable

O-RING(1LT)

93210-23787-00

$8.49

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

JOINT 1

3DX-12469-00-00

Unavailable

O-RING(1AA)

93210-30694-00

Unavailable

. BOLT, FLANGE

95027-06020-00

Unavailable

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

BOLT, SMALL FLANGE

95027-06040-00

Unavailable

UNAVAILABLE IN PRICE BOOK

1AE-12482-00-

Unavailable

O-RING (716)

93210-18417-00

Unavailable

BOLT,SOCKET

91317-06012-00

Unavailable
