Description

Price

1

FRT FLSHR LITE ASSEMBLY

1AE-83310-70-00

Unavailable

2

GASKET, FLASHER LENS

5Y1-83313-00-00

Unavailable

3

LENS FLASHER

5Y1-83312-00-00

$13.49

4

SCREW, PAN HEAD

98511-04012-00

Unavailable

5

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

6

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

7

NUT, HEXAGON

95337-12600-00

$8.49

8

CAP

18G-83365-00-00

$19.99

9

REAR FLASHER LIGHT ASSY 1

37A-83330-21-00

$121.99

10

LENS FLASHER

5Y1-83312-00-00

$13.49

11

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

12

GASKET, FLASHER LENS

5Y1-83313-00-00

Unavailable

13

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

14

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

15

NUT, HEXAGON

95337-12600-00

$8.49

16

CAP

18G-83365-00-00

$19.99

17

STAY, FLASHER

1AE-83368-00-00

Unavailable

18

STAY, FLASHER

1AE-83369-00-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

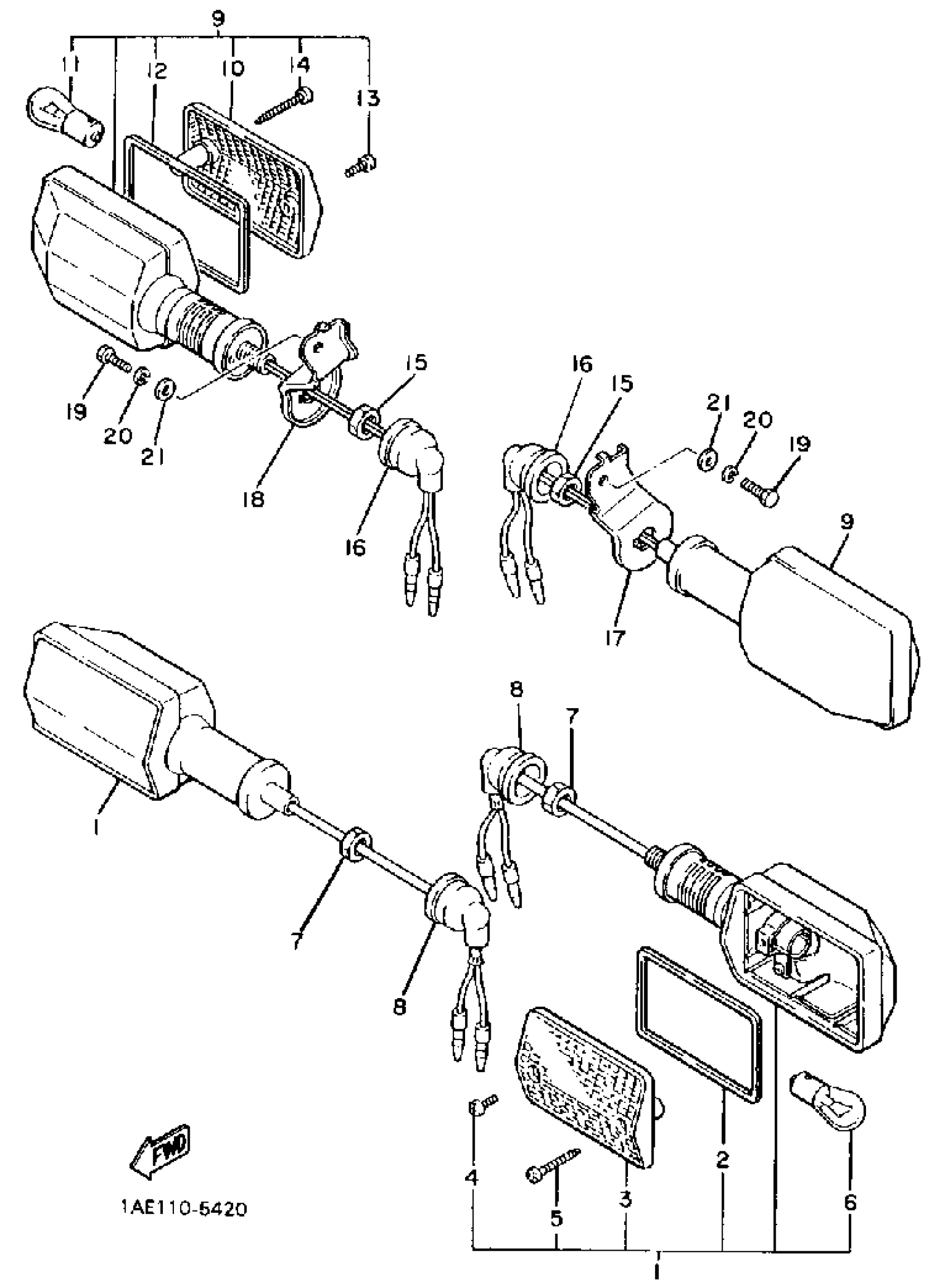

Yamaha FZ750N (FZ750N) 1985 TURNSIGNAL Diagram

FRT FLSHR LITE ASSEMBLY

GASKET, FLASHER LENS

LENS FLASHER

SCREW, PAN HEAD

SCREW, TAPPING(3AH)

. BULB (12V-32CP)

NUT, HEXAGON

CAP

REAR FLASHER LIGHT ASSY 1

LENS FLASHER

. BULB (12V-32CP)

GASKET, FLASHER LENS

SCREW, PAN HEAD (E56)

SCREW, TAPPING(3AH)

NUT, HEXAGON

CAP

STAY, FLASHER

STAY, FLASHER

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLAIN (646)
