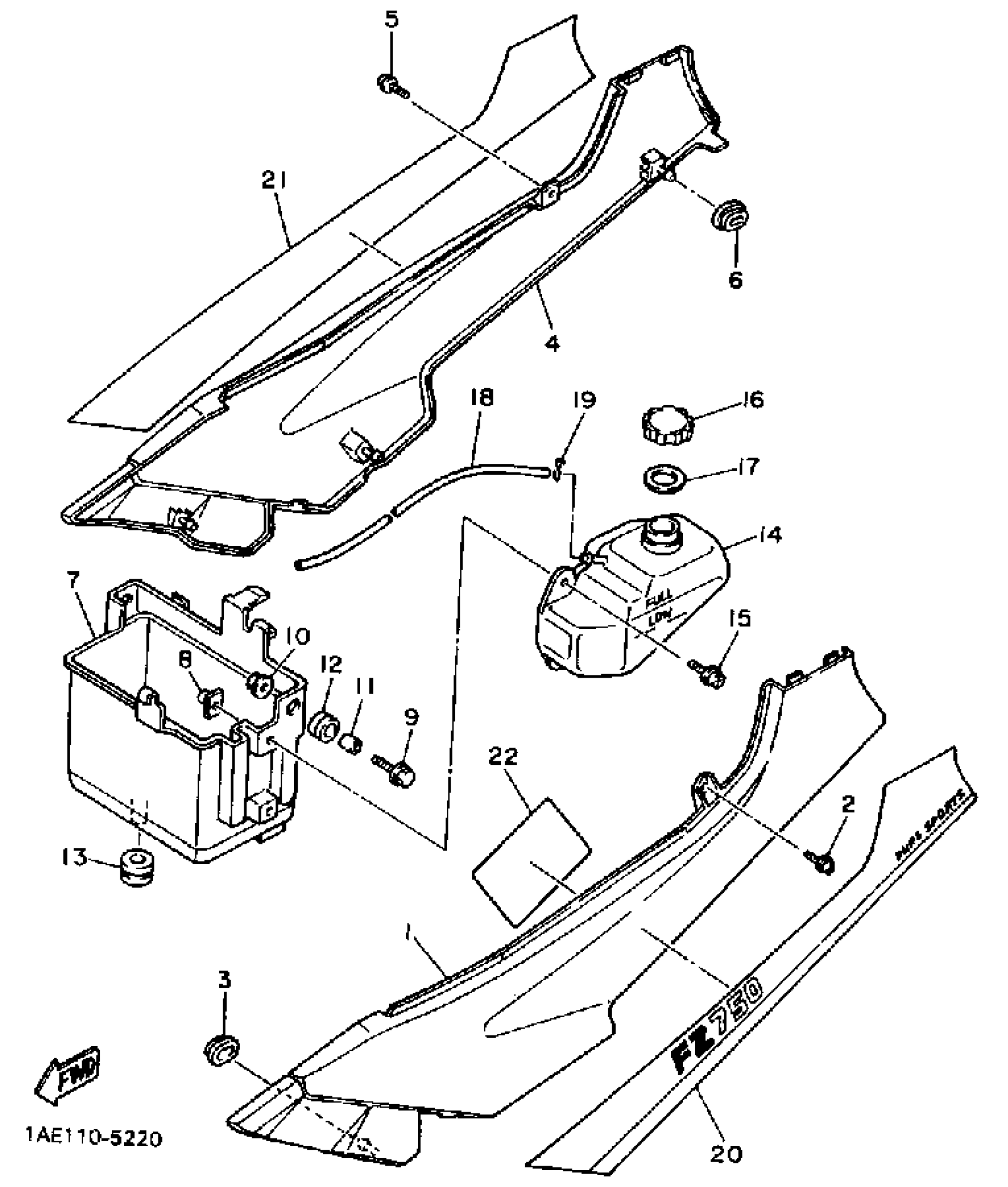

Yamaha FZ750N (FZ750N) 1985 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

1AE-21711-00-LK

Unavailable

2

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

3

GROMMET(41Y)

90480-01401-00

$8.49

4

COVER, SIDE 2

1AE-21721-00-LK

Unavailable

5

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

6

GROMMET(41Y)

90480-01401-00

$8.49

7

BOX

36Y-21245-00-00

Unavailable

8

PLATE

31A-14477-10-00

Unavailable

9

BOLT, WITH WASHER(2WG)

90119-06172-00

$10.49

10

NUT, FLANGE(7NB)

95780-06500-00

$2.60

11

COLLAR

90387-06113-00

$11.49

12

GROMMET (2N3)

90480-16233-00

$8.49

13

GROMMET

90480-23192-00

Unavailable

14

TANK, RECOVERY

1AE-21871-00-00

Unavailable

15

SCREW, WITH WASHER (5U8)

90159-06056-00

$8.49

16

CAP

26H-21875-00-00

Unavailable

17

GASKET

26H-21874-00-00

Unavailable

18

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

19

CLIP 101235600

90467-08003-00

Unavailable

20

GRAPHIC

1AE-2173E-01-00

Unavailable

21

GRAPHIC

1AE-2173F-01-00

Unavailable

22

PLATE, SPEC

1AE-21683-70-00

Unavailable
