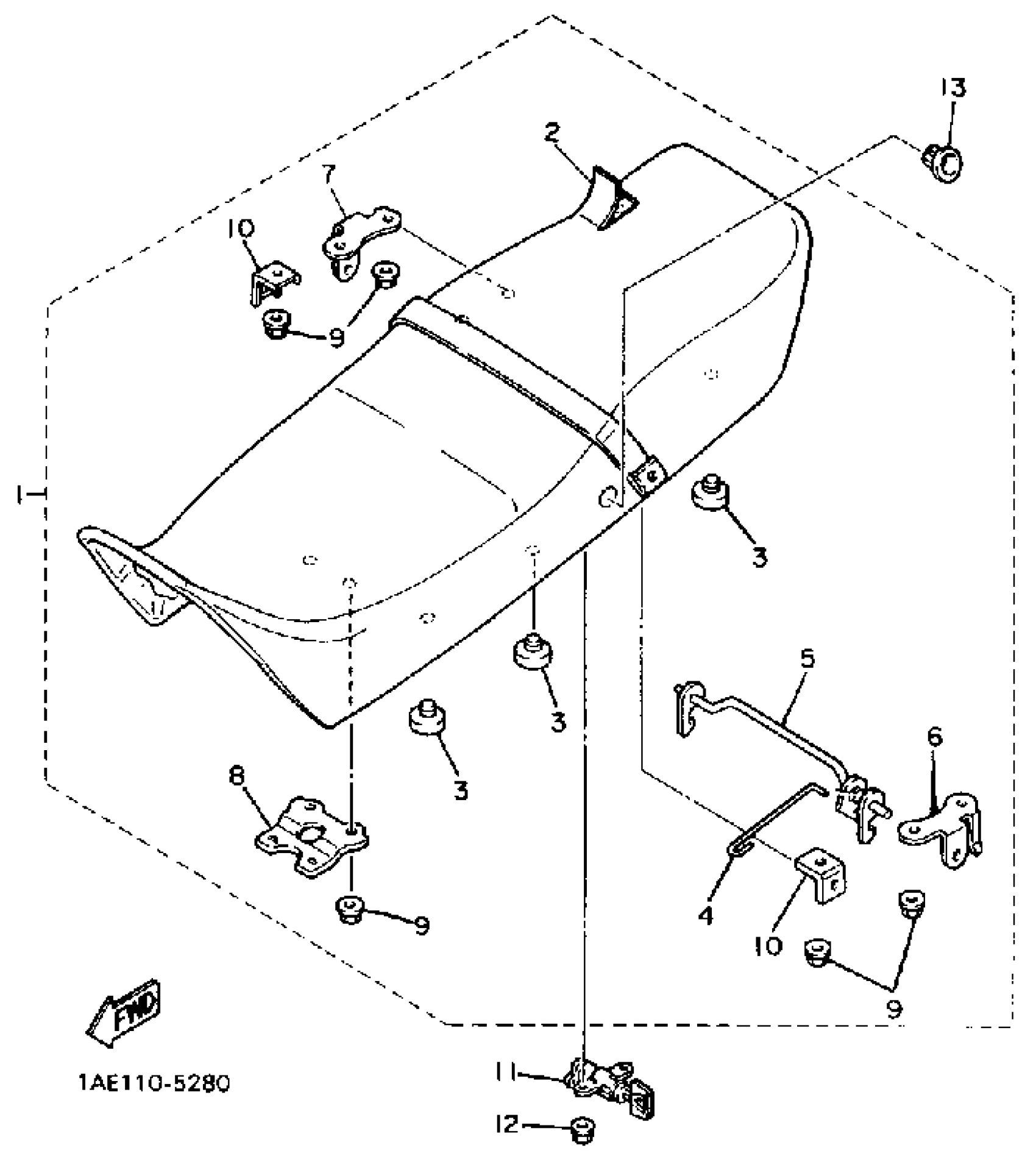

Yamaha FZ750N (FZ750N) 1985 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

1AE-24730-00-00

Unavailable

2

. COVER, SEAT

1AE-24731-00-00

Unavailable

3

PAD, SEAT

22W-24741-00-00

$8.99

4

. ROD, CONNECTING

47X-2478F-00-00

Unavailable

5

. LEVER, SEAT

47X-24776-00-00

Unavailable

6

. BRACKET, SEAT

47X-24728-01-00

Unavailable

7

BRACKET, SEAT

47X-24718-01-00

$7.99

8

. BRACKET, SEAT

1AE-24748-00-00

Unavailable

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

BRACKET, SEAT

4K0-24748-00-00

Unavailable

11

SEAT LOCK ASSY

47X-24705-00-00

Unavailable

12

NUT, FLANGE(3GM)

95707-05500-00

$8.49

13

COVER

1AE-24796-00-00

Unavailable
