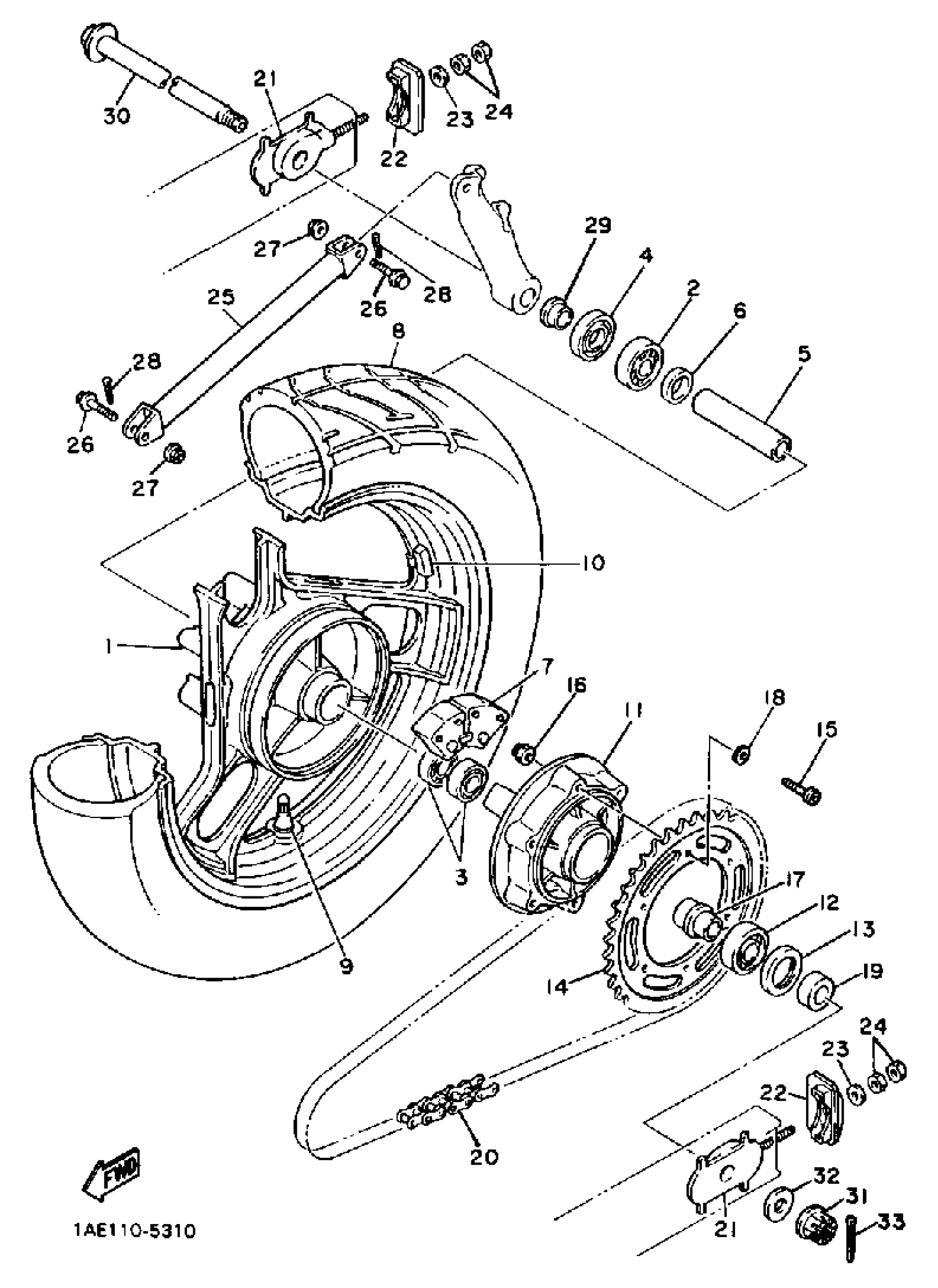

Yamaha FZ750N (FZ750N) 1985 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

1AE-25338-20-98

Unavailable

2

BEARING(4HM)

93306-30317-00

$39.99

3

BEARING (10H)

93306-20314-00

$32.99

4

OIL SEAL (25X47X7-801)

93102-25044-00

$14.99

5

COLLAR(1FN)

90387-173M5-00

Unavailable

6

FLANGE, SPACER

146-25315-00-00

$7.99

7

DAMPER

4BP-25364-00-00

$39.99

8

130/80 V18 BS TIRE

94113-187G4-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$16.99

9

VALVE, RIM(2GH)

93900-00030-00

$16.99

10

BALANCER, WHEEL

5MT-25398-00-00

$17.49

10

BALANCER, WHEEL

5MT-25398-10-00

$17.49

10

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

11

CLUTCH, HUB

1UF-25366-00-00

Unavailable

12

BEARING(N01)

93306-37207-00

$49.99

13

OIL SEAL(47X)

93105-42024-00

Unavailable

14

SPROCKET, DRIVEN (45T)

1AE-25445-21-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD (29L

90110-08057-00

Unavailable

16

NUT, SELF-LOCKING

90185-08169-00

Unavailable

17

COLLAR(47X)

90387-177K0-00

Unavailable

18

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

19

COLLAR(47X)

90387-177K1-00

Unavailable

20

CHAIN (DID50VA7-110LE)

94581-59110-00

Unavailable

21

PULLER, CHAIN 1

46X-25388-01-00

Unavailable

22

PULLER, CHAIN 2

36Y-25389-00-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

NUT(6L2)

95333-08600-00

Unavailable

25

BAR, TENSION

1AE-25371-01-00

Unavailable

26

BOLT, WASHER BASED(47X)

90105-08321-00

Unavailable

27

NUT, FLANGE

95704-08500-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable

29

COLLAR (3HE)

90387-177Y4-00

Unavailable

30

AXLE, WHEEL

1AE-25381-01-00

Unavailable

31

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

32

WASHER, PLATE (5X6)

90201-160F6-00

Unavailable

33

PIN, COTTER

91490-30030-00

Unavailable
