Description

Price

1

SHOCK ABSORBER ASSY, REAR

4CH-22210-10-6W

Unavailable

2

. BUSH, SHOCK ABS LWR

36Y-22226-00-00

Unavailable

3

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

$14.99

4

O-RING (1L9)

93210-18322-00

$5.60

5

CONTROL PANEL ASSEMBLY

1AE-22460-02-00

Unavailable

6

. COVER, DUST

36Y-22936-00-00

Unavailable

7

. COVER, HEAD

36Y-22913-00-00

Unavailable

8

. SPRING, COMPRESSION

90501-061A3-00

Unavailable

9

CIRCLIP(22K)

99080-05600-00

$8.49

10

CHAIN

1AE-22269-00-00

Unavailable

11

BOLT, FLANGE

90105-12382-00

Unavailable

12

COLLAR

90387-127H0-00

Unavailable

13

NUT, SELF LOCKING (1M1)

90185-12072-00

$9.49

14

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

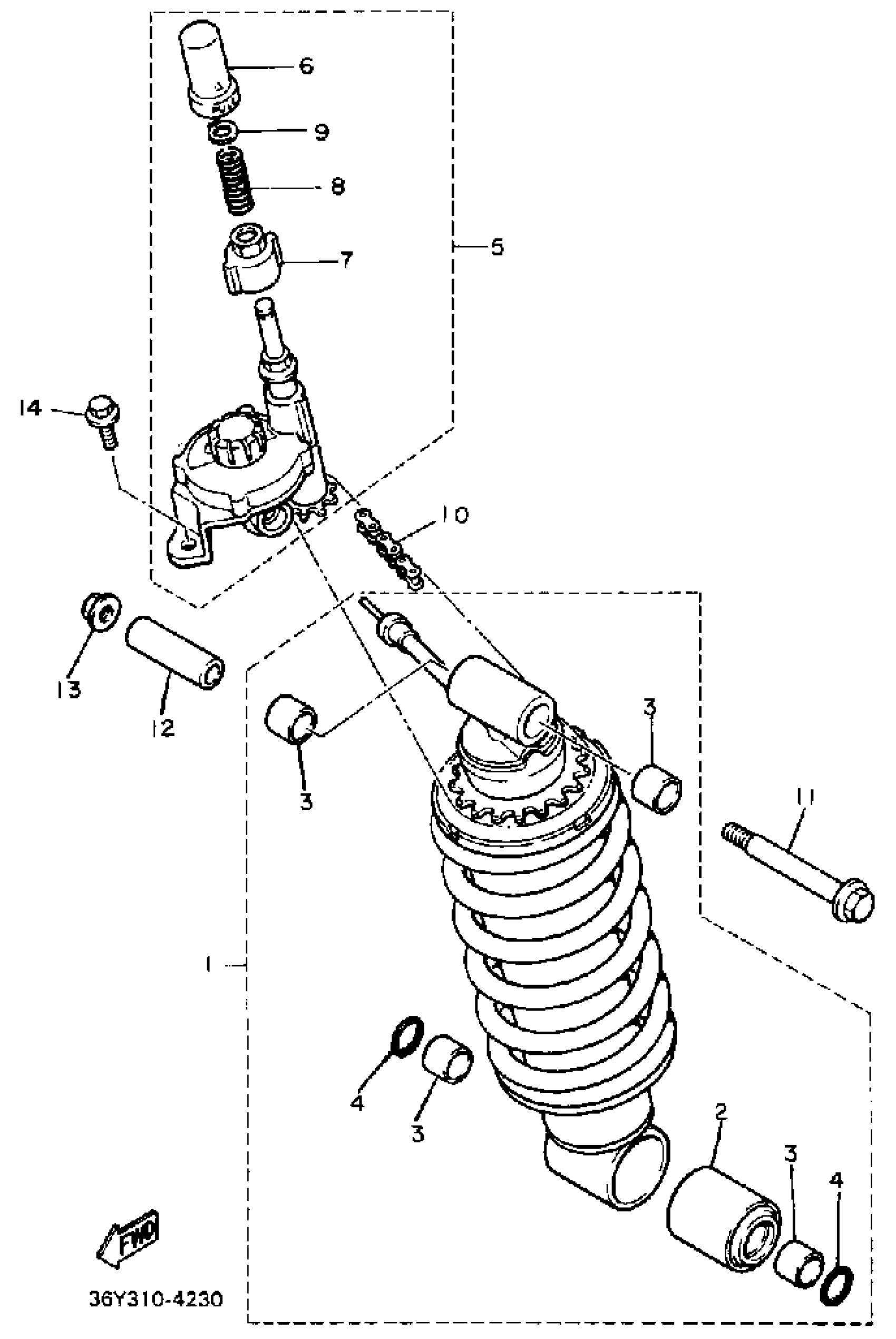

Yamaha FZ750N (FZ750N) 1985 REAR SHOCKS Diagram

SHOCK ABSORBER ASSY, REAR

. BUSH, SHOCK ABS LWR

BUSH, BIMETAL FORMED (5X6)

O-RING (1L9)

CONTROL PANEL ASSEMBLY

. COVER, DUST

. COVER, HEAD

. SPRING, COMPRESSION

CIRCLIP(22K)

CHAIN

BOLT, FLANGE

COLLAR

NUT, SELF LOCKING (1M1)

BOLT, FLANGE(8AB)
