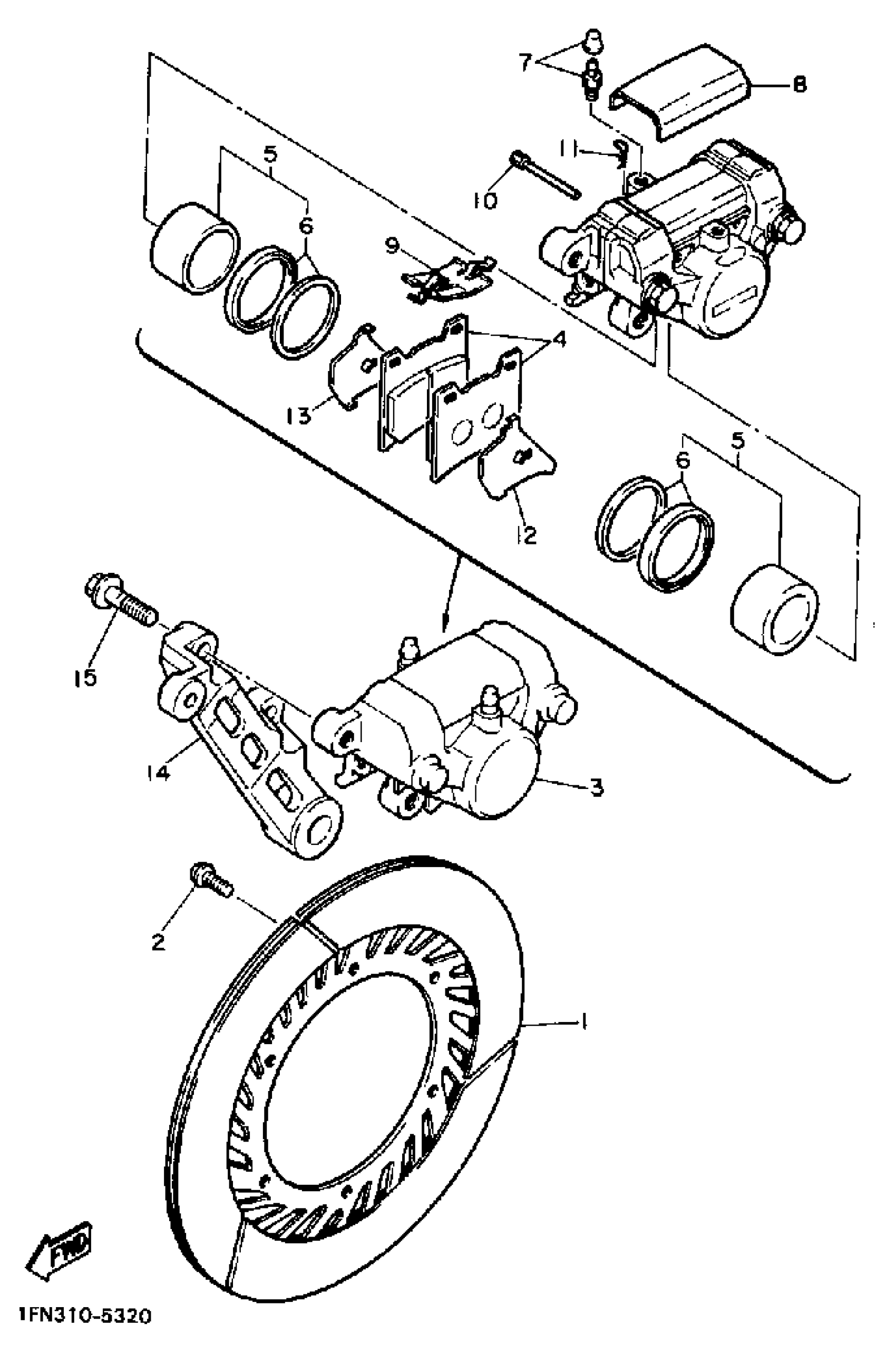

Yamaha FZ750N (FZ750N) 1985 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC,BRAKE

31A-25831-51-00

Unavailable

2

BOLT

90109-084F7-00

$9.49

3

CALIPER ASSEMBLY

(1AE-25810-50-00)

Unavailable

4

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

5

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

6

PISTON SEAL KIT

31A-W0047-00-00

$57.99

7

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

8

COVER, DUST

41Y-25836-01-00

Unavailable

9

SPRING

26H-25919-00-00

Unavailable

10

PIN, PAD

3HE-25924-00-00

Unavailable

11

CLIP, PAD PIN

3GM-25925-00-00

$11.99

12

SHIM, CALIPER

1FK-25827-01-00

$16.49

13

SHIM, CALIPER

1FK-25828-01-00

$15.49

14

BRACKET, CALIPER

1AE-25819-52-00

Unavailable

15

BOLT, WASHER BASED(1AR)

90105-10634-00

$10.49
