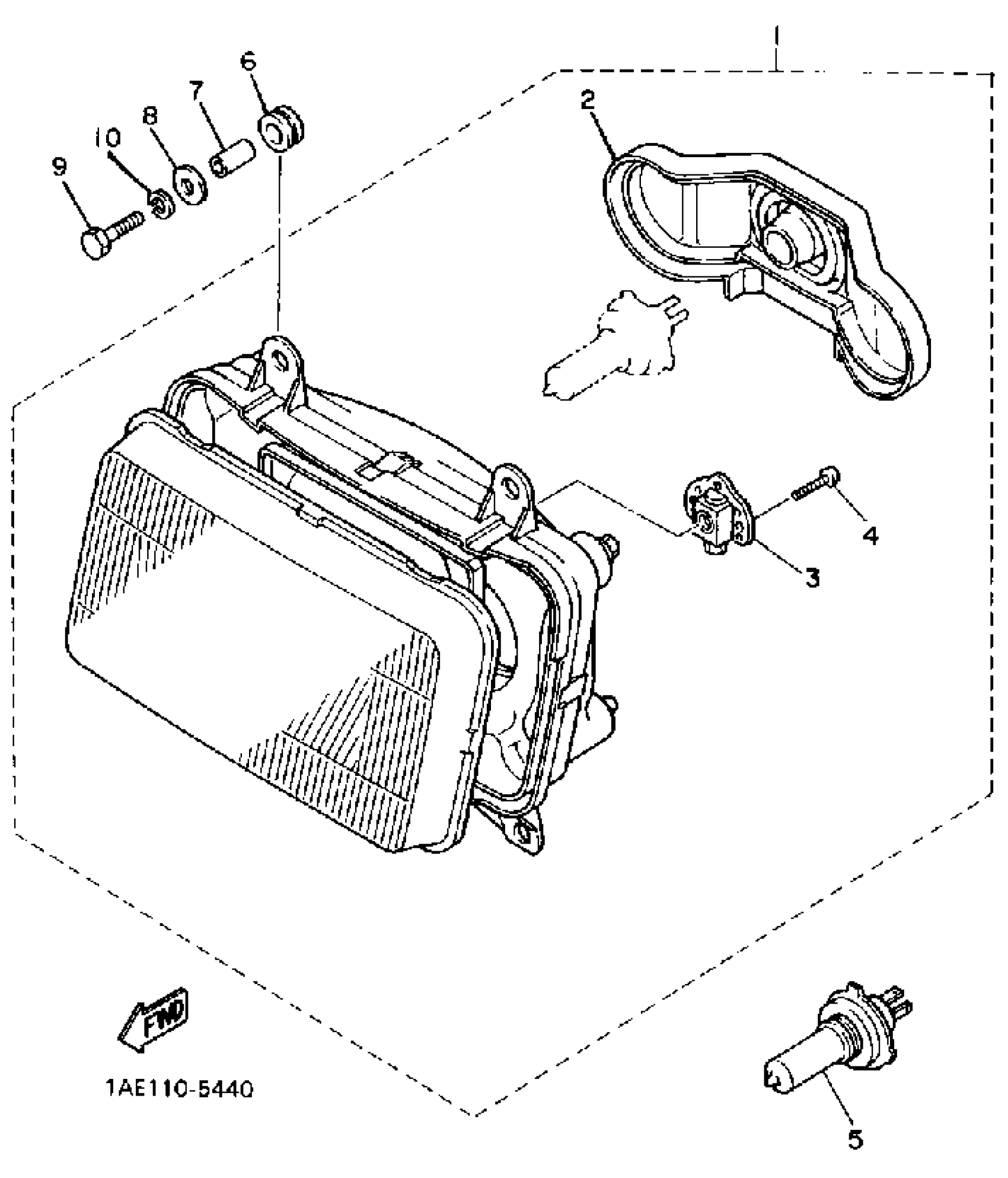

Yamaha FZ750N (FZ750N) 1985 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

1AE-84303-A0-00

Unavailable

2

COVER, SOCKET

(1AE-84397-A0-00)

Unavailable

3

GEAR UNIT ASSEMBLY

(1AE-8430M-00-00)

Unavailable

4

SCREW, TAPPING(4HP)

97707-40616-00

$1.15

5

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

6

GROMMET 839774310000

90480-14023-00

$4.34

7

COLLAR (1T2)

90387-07598-00

$4.51

8

WASHER, PLATE

90201-06380-00

$0.54

9

BOLT, HEXAGON

97017-06025-00

$2.78

10

WASHER, SPRING

92907-06100-00

$0.98
