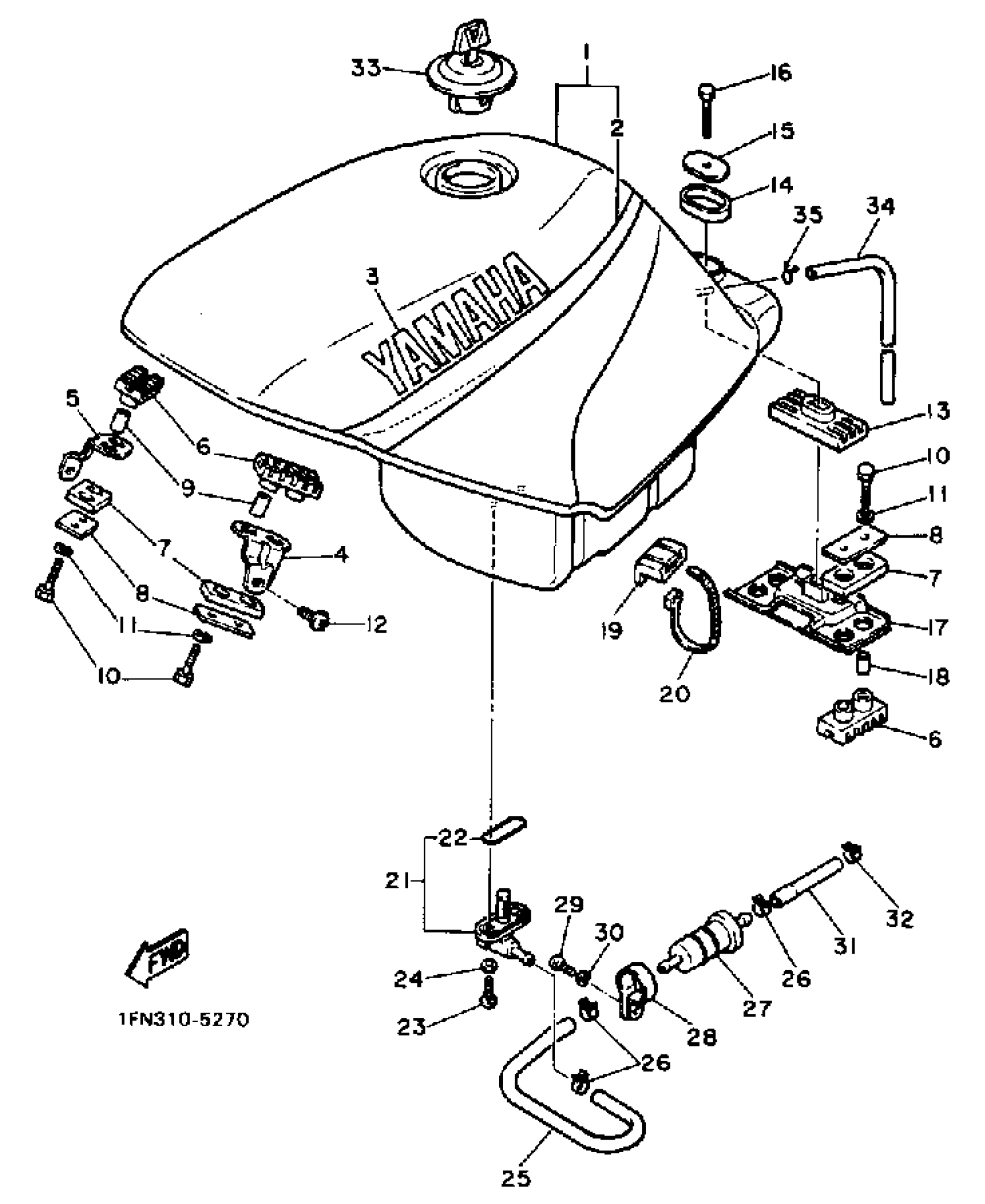

Yamaha FZ750N (FZ750N) 1985 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

1AE-24110-00-01

Unavailable

2

. GRAPHIC SET

1AE-24240-00-00

Unavailable

3

EMBLEM, YAMAHA

99241-00160-00

$31.99

4

BRACKET,FUEL TNK 1

2KW-24191-00-00

Unavailable

5

BRACKET,FUEL TNK 2

2KW-24192-00-00

Unavailable

6

DAMPER, LOCATING 1

1AE-24181-01-00

Unavailable

7

DAMPER, LOCATING 3

47X-24183-00-00

Unavailable

8

WASHER, SPECIAL

47X-24186-00-00

$3.33

9

. COLLAR

90387-06605-00

Unavailable

10

BOLT(3RV)

97014-06035-00

$2.75

11

WASHER, SPRING

92995-06100-00

Unavailable

12

BOLT

90109-086A0-00

Unavailable

13

DAMPER, LOCATING 3

1AE-24183-00-00

Unavailable

14

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

15

WASHER, SPECIAL

12R-24186-00-00

$9.99

16

BOLT, HEXAGON

97013-08030-00

Unavailable

17

STAY, FUEL TANK

(1AE-24117-00-00)

Unavailable

18

COLLAR(1AE)

90387-060N3-00

Unavailable

19

DAMPER, LOCATING 2

1AE-24182-00-00

Unavailable

20

BAND

1UA-82591-00-00

Unavailable

21

FUEL COCK ASSY 1

26H-24500-00-00

Unavailable

22

GASKET, BODY

214-24512-00-00

Unavailable

23

SCREW 256241430000

90149-06011-00

Unavailable

24

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

25

PIPE, FUEL 1

1AE-24311-01-00

Unavailable

26

CLIP (7K7)

90467-11044-00

Unavailable

27

FILTER ASSY

1FK-24560-10-00

Unavailable

28

CLAMP, FUEL PIPE 1

4BR-24366-00-00

Unavailable

29

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

PIPE 5

42H-24315-00-00

Unavailable

32

CLIP(42X)

90467-10091-00

Unavailable

33

CAP ASSEMBLY

1AE-24602-00-00

Unavailable

34

HOSE (L730)

90445-105K7-00

Unavailable

35

CLIP

90467-090A2-00

Unavailable
