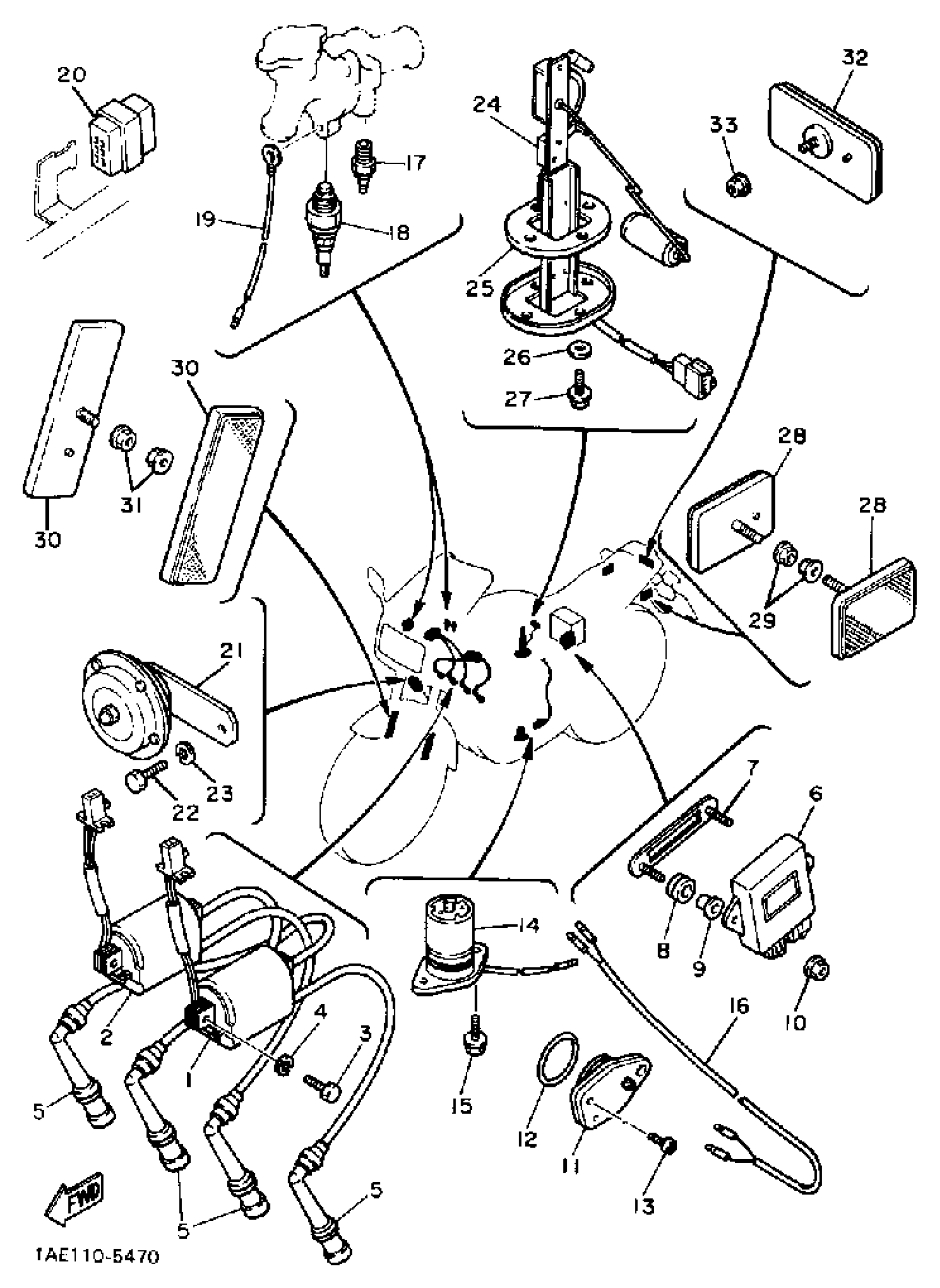

Yamaha FZ750N (FZ750N) 1985 ELECTRICAL 1 Diagram

IGNITION COIL ASY

1AE-82310-09-00

Unavailable

IGNITION COIL ASY

1AE-82310-09-00

Unavailable

BOLT(3DM)

97024-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

PLUG CAP ASSY

2KT-82370-00-00

$122.99

IGNITOR UNIT ASSEMBLY 1

1AE-82305-10-00

Unavailable

BRACKET

(1AE-21158-00-00)

Unavailable

GROMMET (4L0)

90480-18276-00

$8.49

COLLAR

(90387-077M3-00)

Unavailable

NUT, FLANGE(7NB)

95780-06500-00

$2.60

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

O-RING (371)

93210-29196-00

$8.49

SCREW, PAN

98507-06014-00

$8.49

OIL LEVEL GAUGE ASSY

4H7-85720-02-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

WIRE, SUB LEAD

1AE-82509-00-00

Unavailable

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

THERMO UNIT

11H-83591-00-00

Unavailable

WIRE, EARTH LEAD

(47X-82519-00-00)

Unavailable

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

HORN

4V8-83371-20-00

Unavailable

BOLT, HEXAGON

97027-08012-00

Unavailable

WASHER(JN5)

92907-08100-00

Unavailable

SENDER UNIT ASSEMBLY, FUEL METER

1AE-85752-00-00

Unavailable

GASKET, SENDER UNIT

2H7-85753-00-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

BOLT, FLANGE

95817-06014-00

Unavailable

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

REFLECTOR ASSEMBLY

42X-85110-00-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
