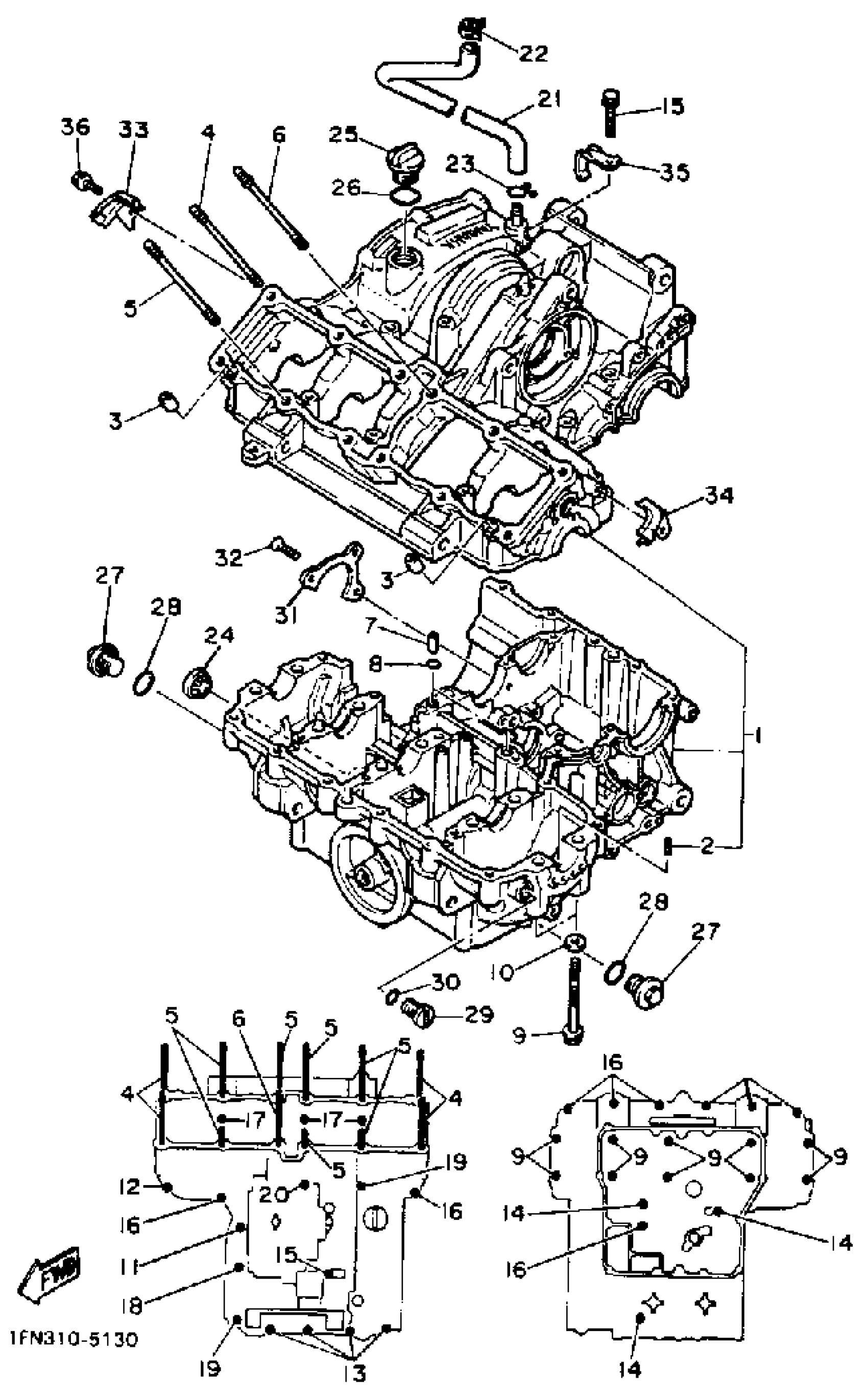

Yamaha FZ750N (FZ750N) 1985 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY.

1AE-15100-02-00

Unavailable

2

NOZZLE

4KM-13572-01-00

$6.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, STUD

90116-09458-00

Unavailable

5

BOLT, STUD

90116-09459-00

Unavailable

6

BOLT, STUD

90116-09460-00

Unavailable

7

COLLAR 288839130000

90387-05383-00

$10.49

8

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

9

BOLT, WASHER BASED

90105-09373-00

Unavailable

10

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

11

BOLT, FLANGE

95817-06035-00

$7.49

12

BOLT, FLANGE

95817-06045-00

$8.49

13

BOLT, FLANGE

95817-06060-00

$4.14

14

BOLT, FLANGE

95817-06080-00

$4.72

15

BOLT, FLANGE

95817-06140-00

Unavailable

16

BOLT, FLANGE(JN5)

95817-08045-00

Unavailable

17

BOLT, FLANGE

95817-08055-00

Unavailable

18

BOLT, WASHER BASED

90105-084A1-00

Unavailable

19

BOLT, FLANGE

95817-08090-00

Unavailable

20

BOLT,FLANGE

95817-08135-00

Unavailable

21

PIPE, BREATHER 1

1AE-11166-00-00

Unavailable

22

CLIP (4X7)

90467-15054-00

Unavailable

23

CLIP (371)

90467-14015-00

Unavailable

24

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

25

PLUG, OIL

2H9-15363-00-00

Unavailable

26

O-RING(1KT)

93210-27778-00

Unavailable

27

PLUG

4H7-15189-00-00

Unavailable

28

O-RING (25G)

93210-20573-00

Unavailable

29

PLUG, STRAIGHT SCREW (5Y1)

90340-14079-00

Unavailable

30

O-RING (2H9)

93210-14369-00

Unavailable

31

PLATE, BEARING COVER

1AE-15383-00-00

Unavailable

32

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

33

CLAMP

90465-08281-00

Unavailable

34

CLAMP

90465-08282-00

Unavailable

35

CLAMP

(90465-08280-00)

Unavailable

36

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
