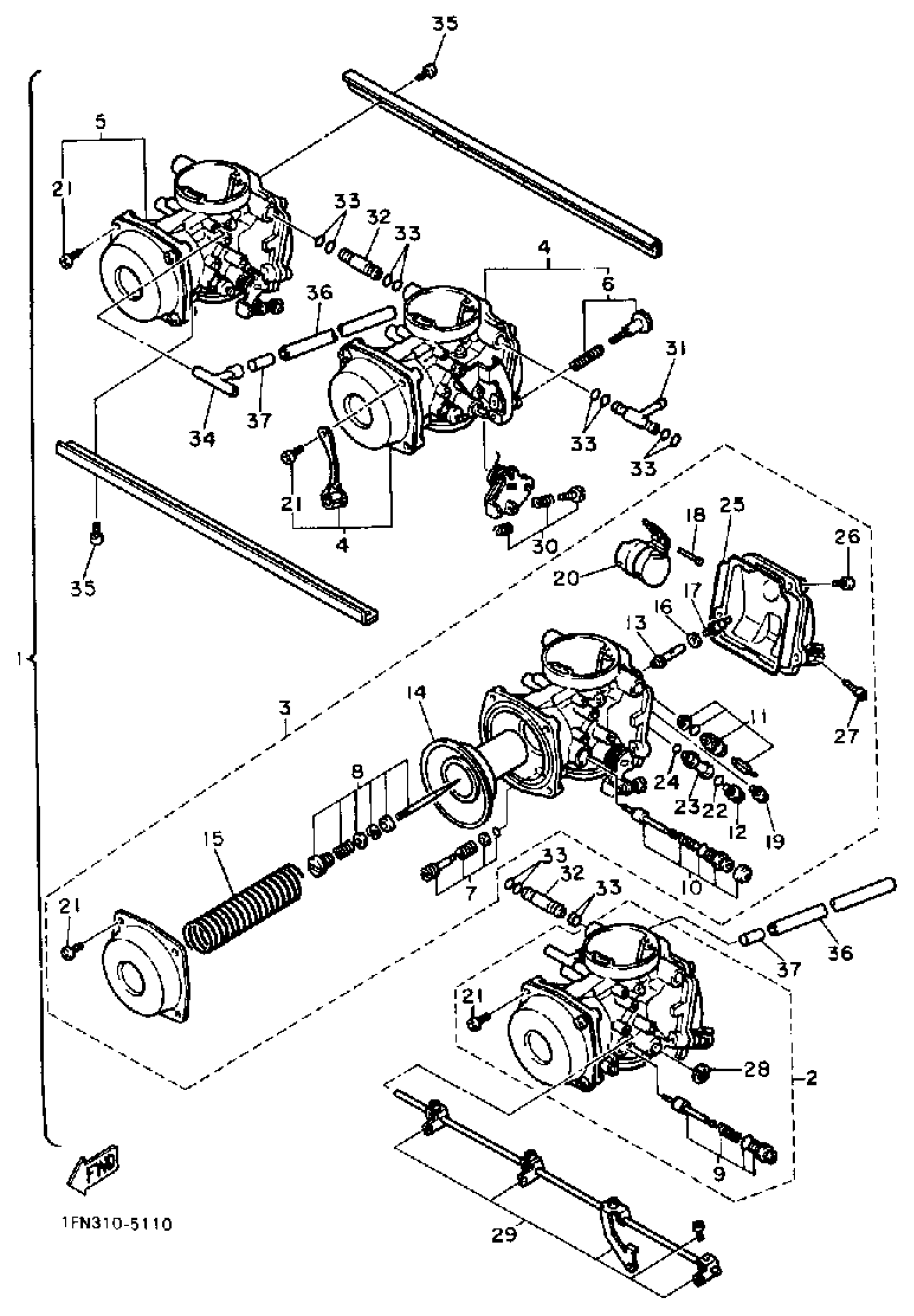

Yamaha FZ750N (FZ750N) 1985 CARBURETOR Diagram

#

Description

Price

1

UNAVAILABLE IN PRICE BOOK

[1A-E1490-00-00

Unavailable

2

CARBURETOR ASSEMBLY 1

(1AE-14901-00-00)

Unavailable

3

CARBURETOR ASSEMBLY 2

(1AE-14902-00-00)

Unavailable

4

CARBURETOR ASSEMBLY 3

(1AE-14903-00-00)

Unavailable

5

CARBURETOR ASSEMBLY 4

(1AE-14904-00-00)

Unavailable

6

.. THROTTLE SCREW SET

1FN-14103-00-00

Unavailable

7

PILOT SCREW SET

12R-14105-00-00

$17.49

8

.. NEEDLE SET

1AE-1490J-00-00

Unavailable

9

.. STARTER SET

1AE-1410A-00-00

Unavailable

10

STARTER SET

1FN-1410A-00-00

$79.99

11

NEEDLE VALVE SET

1FN-14107-12-00

Unavailable

12

JET, MAIN (#105)

620-14231-21-A0

$15.49

13

.. NOZZLE, MAIN

1AE-14141-90-00

Unavailable

14

DIAPHRAGM ASSY

1AE-14940-00-00

Unavailable

15

.. SPRING, DIAPHRAGM

1AE-14933-00-00

Unavailable

16

WASHER,MAIN JET

137-14153-00-00

Unavailable

17

SCREW

1AE-14565-00-00

Unavailable

18

PIN, FLOAT

353-14186-00-00

Unavailable

19

SCREW

1FN-14565-00-00

Unavailable

20

.. FLOAT

1AE-14985-00-00

Unavailable

21

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

22

O-RING

1AE-14227-00-00

Unavailable

23

HOLDER

1AE-14261-00-00

Unavailable

24

GASKET

1AE-14237-00-00

Unavailable

25

O-RING

1FN-14147-00-00

Unavailable

26

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

27

PLUG, DRAIN

12R-14191-00-00

Unavailable

28

CLIP

812-14137-00-00

Unavailable

29

. STARTER LEVR SET, 1

1FN-1490L-00-00

Unavailable

30

STOP SCREW SET

(1FN-1490K-00-00)

Unavailable

31

PIPE, STARTER CONN

(1AE-14988-00-00)

Unavailable

32

. NIPPLE

16H-14251-00-00

Unavailable

33

O-RING

36Y-14147-00-00

Unavailable

34

. PIPE

1AE-14197-00-00

Unavailable

35

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

36

. PIPE, AIRVENT

11H-14197-00-00

Unavailable

37

. RING

1FN-14918-00-00

Unavailable

38

JET, PILOT (# 15)

3H1-14142-15-00

Unavailable
